1-1470109-2 datasheet, PDF - EEWORLD Datasheet

1-1470109-2: Descriptionconn headr .079" 12pos vert tin; CategoryThe connector; File Size158KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1470109-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1470109-2	-	-	View	Buy Now

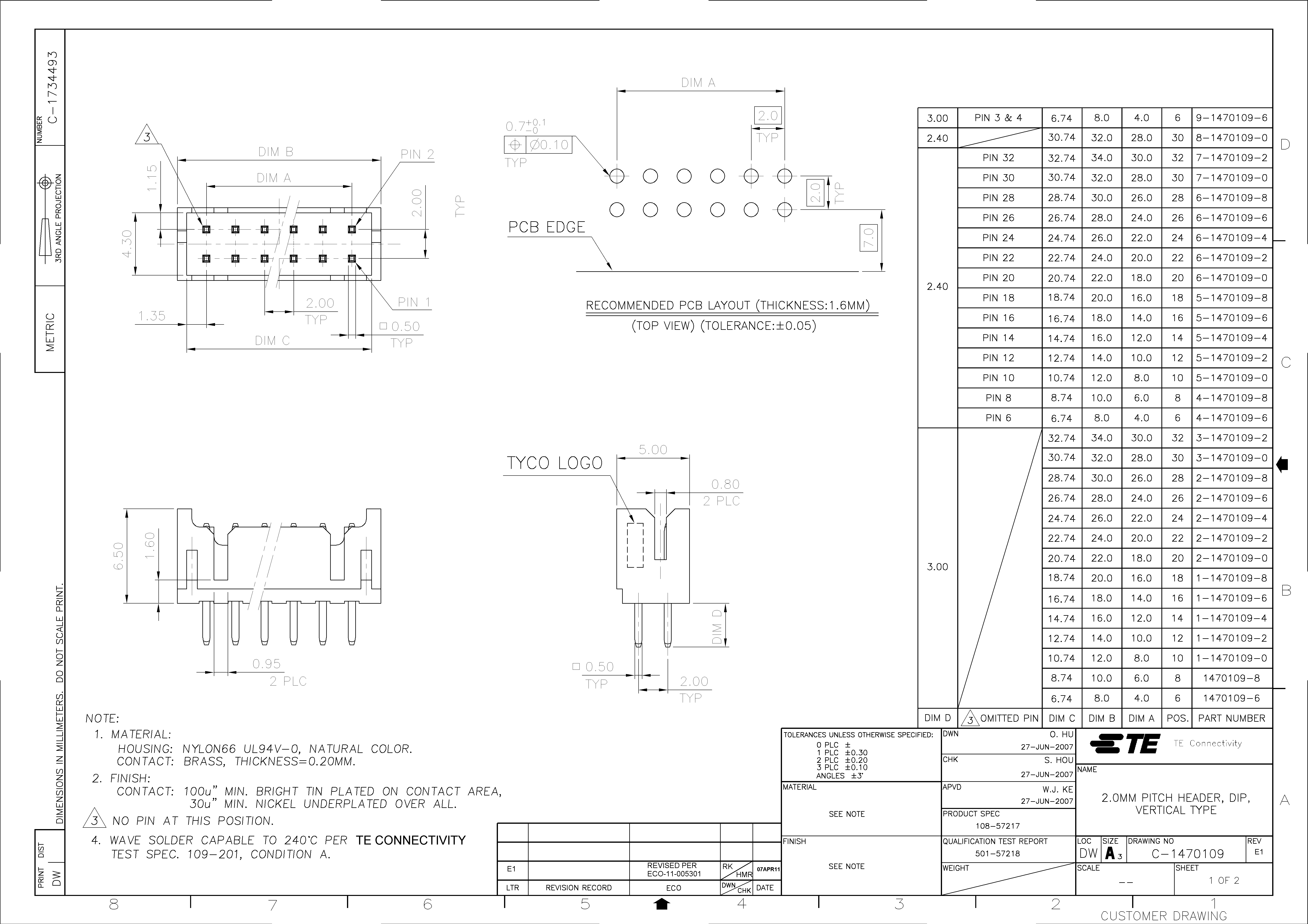

conn headr .079" 12pos vert tin

Parameter Name	Attribute value
Datasheets
1470109
RoHS Informati
1-1470109-2 Statement of Compliance
RoHS 2 Stateme

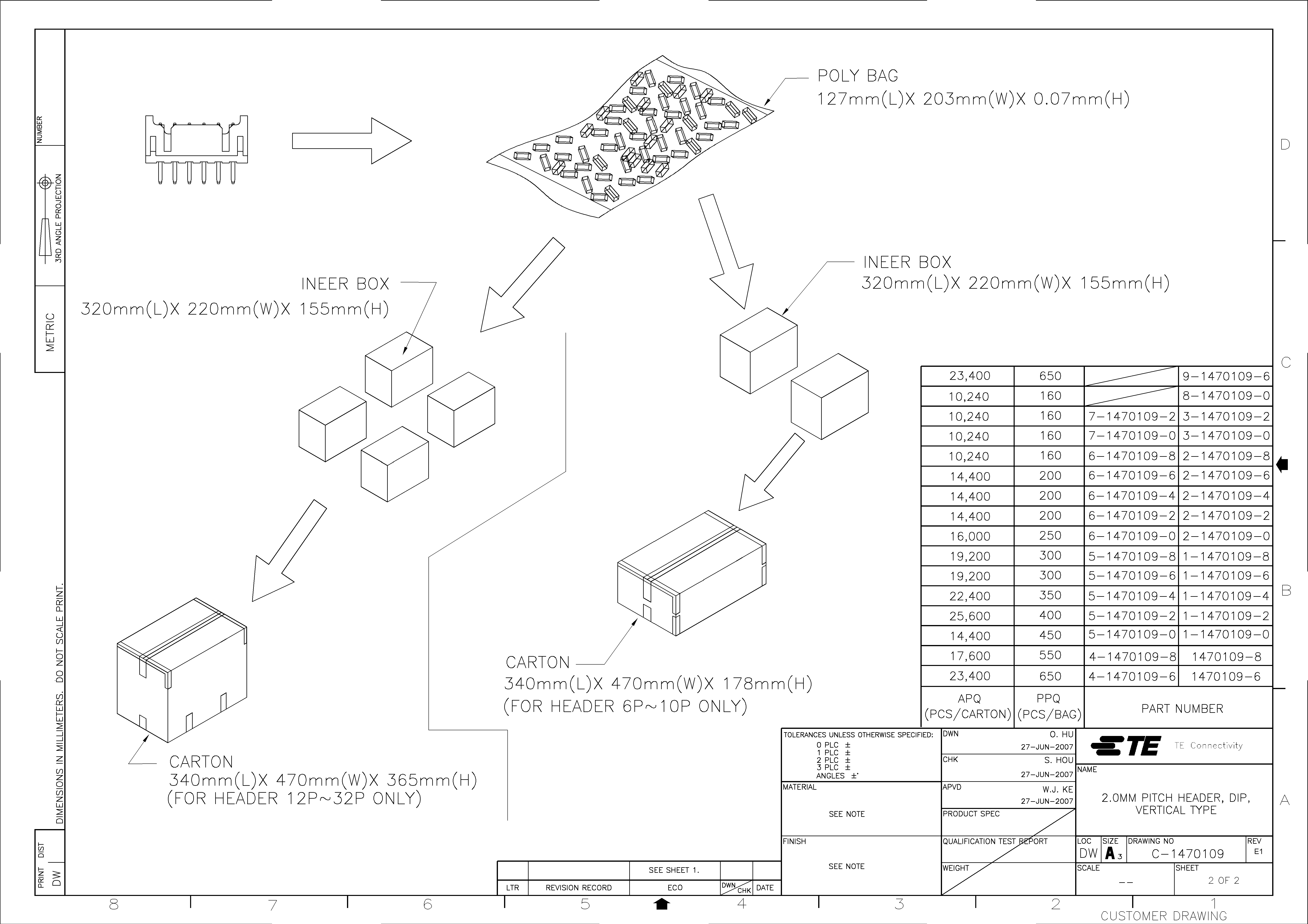

Standard Package	400
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Bulk
Connector Type	Shrouded
Number of Positions	12
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.256" (6.50mm)
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Contact Finish	Ti
Contact Finish Thickness	100µin (2.54µm)
Features	-
Col	Natural
Other Names	1-1470109-2-NDA111899

	1-1470109-2	2-1470109-2	2-1470109-6	8-1470109-0
Description	conn headr .079" 12pos vert tin	2.0mmpitchheader dip22p	conn headr .079" 26pos vert tin	conn headr .079" 30pos vert tin
Standard Package	400	200	200	10,240
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk
Connector Type	Shrouded	Shrouded	Shrouded	Shrouded
Number of Positions	12	22	26	30
Number of Positions Loaded	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Molding Height Above Board	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)	0.256" (6.50mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde
Contact Finish	Ti	Ti	Ti	Ti
Contact Finish Thickness	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)
Col	Natural	Natural	Natural	Natural
Other Names	1-1470109-2-NDA111899	A107978	2-1470109-6-NDA113137	-
