PF0002/48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PF0002/48

PF0002/48: Descriptionflange mount iec fused inlet; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

PF0002/48 Overview

flange mount iec fused inlet

PF0002/48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARD: IEC/EN 60320-1/C14; UL94V-0; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

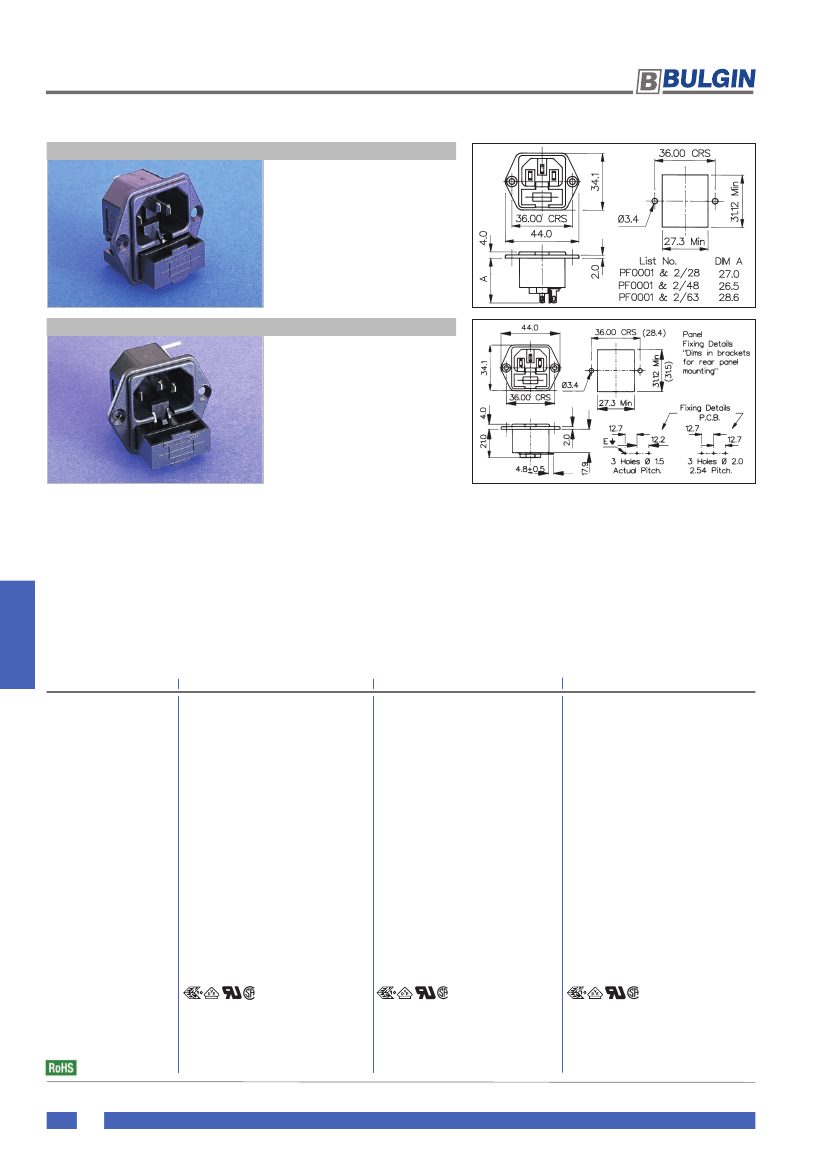

IEC CONNECTORS

EN60 320-1 Standard Sheet C14 Class I Cold Condition (Fused)

FLANGE MOUNT FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

2.8, 4.8 or 6.3mm Tabs

10A, 250V a.c.

Fuse Contacts Isolated

(PF0002)

PF0001/28

PF0002/28

PC FLANGE MOUNT FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

PC Spills - Horizontal

10A, 250V a.c.

PF0001/PC

IEC CONNECTORS

Specification

Fixing:

Terminations:

Colours:

Max. Rating:

Max. Fuse Rating:

Contact Resistance:

Insulation Resistance:

A.C. Breakdown:

Operating Temp. Range:

Max. Pin Temp.:

Mouldings:

Contacts:

Approvals:

Accessories / Notes:

Mating Connectors:

PF0001/Term/Col

Flange

/28 (2.8mm solder), /48 (4.8mm tab)

/63 (6.3mm tab)

No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c.

<10mΩ (<15mΩ including

Fuseholder)

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

PF0001/PC/Col

.C.B./Flange

P Spills

.C.

PF0002/Term/Col

Flange

/28 (2.8mm solder), /48 (4.8mm tab)

/63 (6.3mm tab)

No suffix (Black), /WH (White), /GY (Grey) No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ (<15mΩ including

Fuseholder)

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ

>10

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

.No. 11987, KT0009

(See Pages 95 & 97)

PX0587, PX0587/SE, PX0588

Compliant

KT0009 (front of panel mounting only)

(See Page 95)

PX0587, PX0587/SE, PX0588

Compliant

.No. 11987, KT0009 (See Pages 95 & 97)

(Note: Fuse contact isolated)

PX0587, PX0587/SE, PX0588

Compliant

www.elektron-bulgin.com

PF0002/48 Related Products

	PF0002/48	PF0002/28
Description	flange mount iec fused inlet	flange mount iec fused inlet
