3-174821-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-174821-6

3-174821-6: Descriptionconn headr 0.049" 6pos smt tin; CategoryThe connector; File Size125KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-174821-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-174821-6	-	-	View	Buy Now

3-174821-6 Overview

conn headr 0.049" 6pos smt tin

3-174821-6 Parametric

Parameter Name	Attribute value
Datasheets

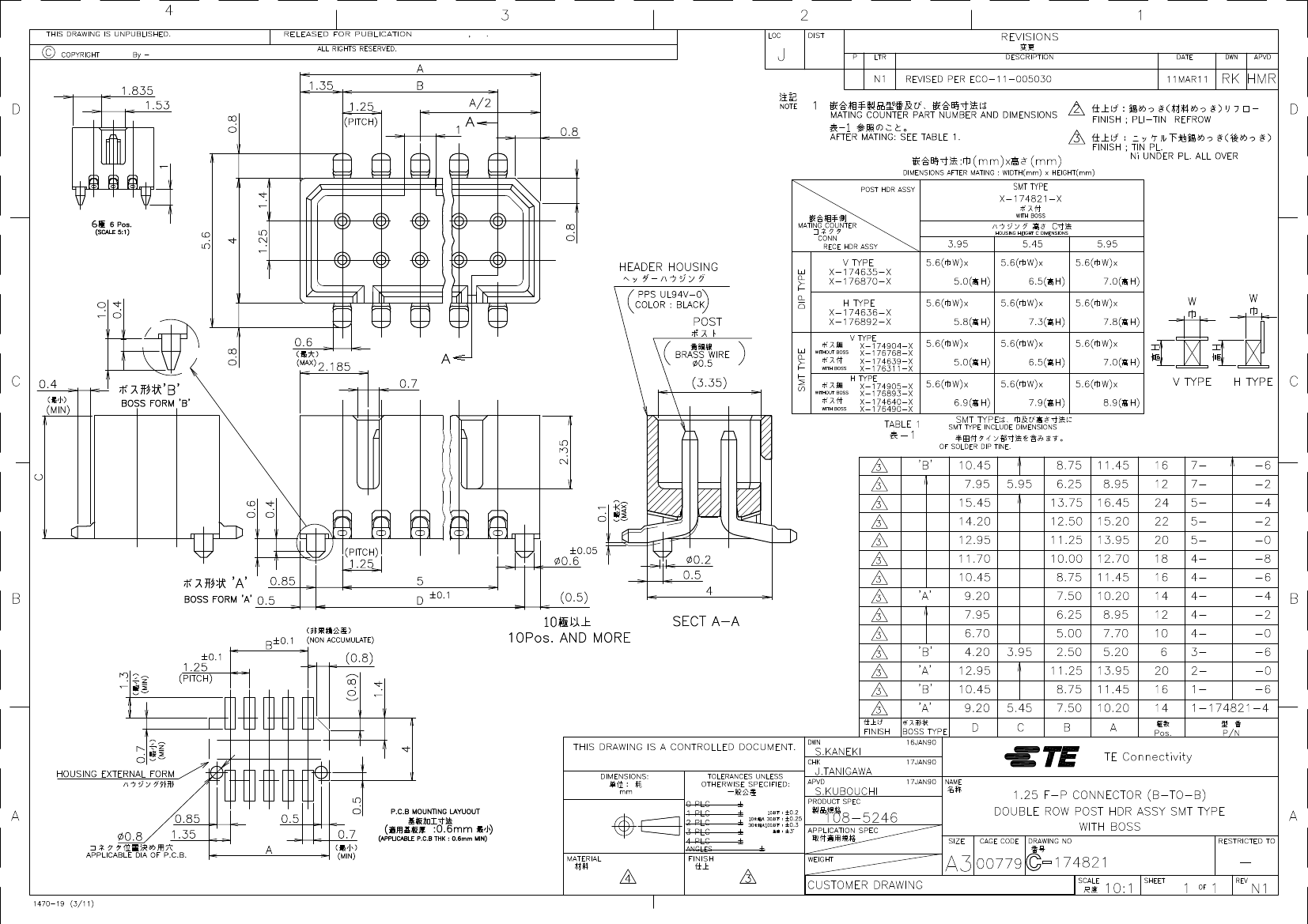

174821 Drawing
1.25mm FP Series Spec
3D Model
3-174821-6.pdf
3-174821-6.igs
3-174821-6.s
Standard Package	20,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Bulk
Connector Type	Shrouded
Number of Positions	6
Number of Positions Loaded	All
Pitch	0.049" (1.25mm)
Number of Rows	2
Row Spacing	0.049" (1.25mm)
Height Stacking (Mating)	-
Molding Height Above Board	0.156" (3.95mm)
Contact Mating Length	-
Mounting Type	Surface Mou
Terminati	Solde
Contact Finish	Ti
Contact Finish Thickness	-
Features	Board Guide
Col	Black
Mating Products	3-174639-6-ND - CONN RCPT 6PS DL 1.25MM STR SMD

Preview

Download Datasheet

View All

3-174821-6 Related Products

	3-174821-6	4-174821-0	5-174821-0	2-174821-0	5-174821-2	7-174821-2	7-174821-6	4-174821-2	4-174821-4	1-174821-4
Description	conn headr 0.049" 6pos smt tin	conn headr 0.049" 10pos smt tin	conn headr 0.049" 20pos smt tin	conn headr 0.049" 20pos smt tin	conn headr 0.049" 22pos smt tin	conn headr 0.049" 12pos smt tin	conn headr 0.049" 16pos smt tin	conn headr 0.049" 12pos smt tin	conn headr 0.049" 14pos smt tin	conn headr 0.049" 14pos smt tin
Standard Package	20,000	20,000	10,000	9,100	10,000	10,000	10,000	20,000	10,000	10,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Type	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded	Shrouded
Number of Positions	6	10	20	20	22	12	16	12	14	14
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All
Pitch	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Number of Rows	2	2	2	2	2	2	2	2	2	2
Row Spacing	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)
Molding Height Above Board	0.156" (3.95mm)	0.156" (3.95mm)	0.156" (3.95mm)	0.214" (5.45mm)	0.156" (3.95mm)	0.234" (5.95mm)	0.234" (5.95mm)	0.156" (3.95mm)	0.156" (3.95mm)	0.214" (5.45mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Mating Products	3-174639-6-ND - CONN RCPT 6PS DL 1.25MM STR SMD	A100883DKR-ND - CONN RCPT 10POS DUAL VERT SMD4-174905-0-ND - CONN RCPT 10POS .049 SMD R/A TINA100883CT-ND - CONN RCPT 10POS DUAL VERT SMDA100883TR-ND - CONN RCPT 10POS DUAL VERT SMD4-174639-0-ND - CONN RCPT 10PS DL 1.25MM STR SMD	5-174639-0-ND - CONN RCPT 20PS DL 1.25MM STR SMD	5-174639-0-ND - CONN RCPT 20PS DL 1.25MM STR SMD	5-176311-2-ND - CONN RECEPT 22POS .049 SMT TIN5-174905-2-ND - CONN RCPT 22POS .049 SMD R/A TIN	4-174905-2-ND - CONN RCPT 12POS .049 SMD R/A TIN4-174904-2-ND - CONN RECPT 12POS .049 SMD TIN4-174639-2-ND - CONN RCPT 12PS DL 1.25MM STR SMD	4-176768-6-ND - CONN RECPT 16POS .049 SMT TIN4-174905-6-ND - CONN RCPT 16POS .049 SMD R/A TIN4-174639-6-ND - CONN RCPT 16PS DL 1.25MM STR SMD	4-174905-2-ND - CONN RCPT 12POS .049 SMD R/A TIN4-174904-2-ND - CONN RECPT 12POS .049 SMD TIN4-174639-2-ND - CONN RCPT 12PS DL 1.25MM STR SMD	4-174905-4-ND - CONN RCPT 14POS .049 SMD R/A TIN4-174639-4-ND - CONN RCPT 14PS DL 1.25MM STR SMD	4-174905-4-ND - CONN RCPT 14POS .049 SMD R/A TIN4-174639-6-ND - CONN RCPT 16PS DL 1.25MM STR SMD4-174639-4-ND - CONN RCPT 14PS DL 1.25MM STR SMD
