3-174820-7

Description
conn header .049" 7pos smt tin
CategoryThe connector
File Size157KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

3-174820-7 Online Shopping

Suppliers Part Number Price MOQ In stock
3-174820-7 - - View Buy Now

3-174820-7 Overview

conn header .049" 7pos smt tin

3-174820-7 Parametric

Parameter NameAttribute value
Datasheets

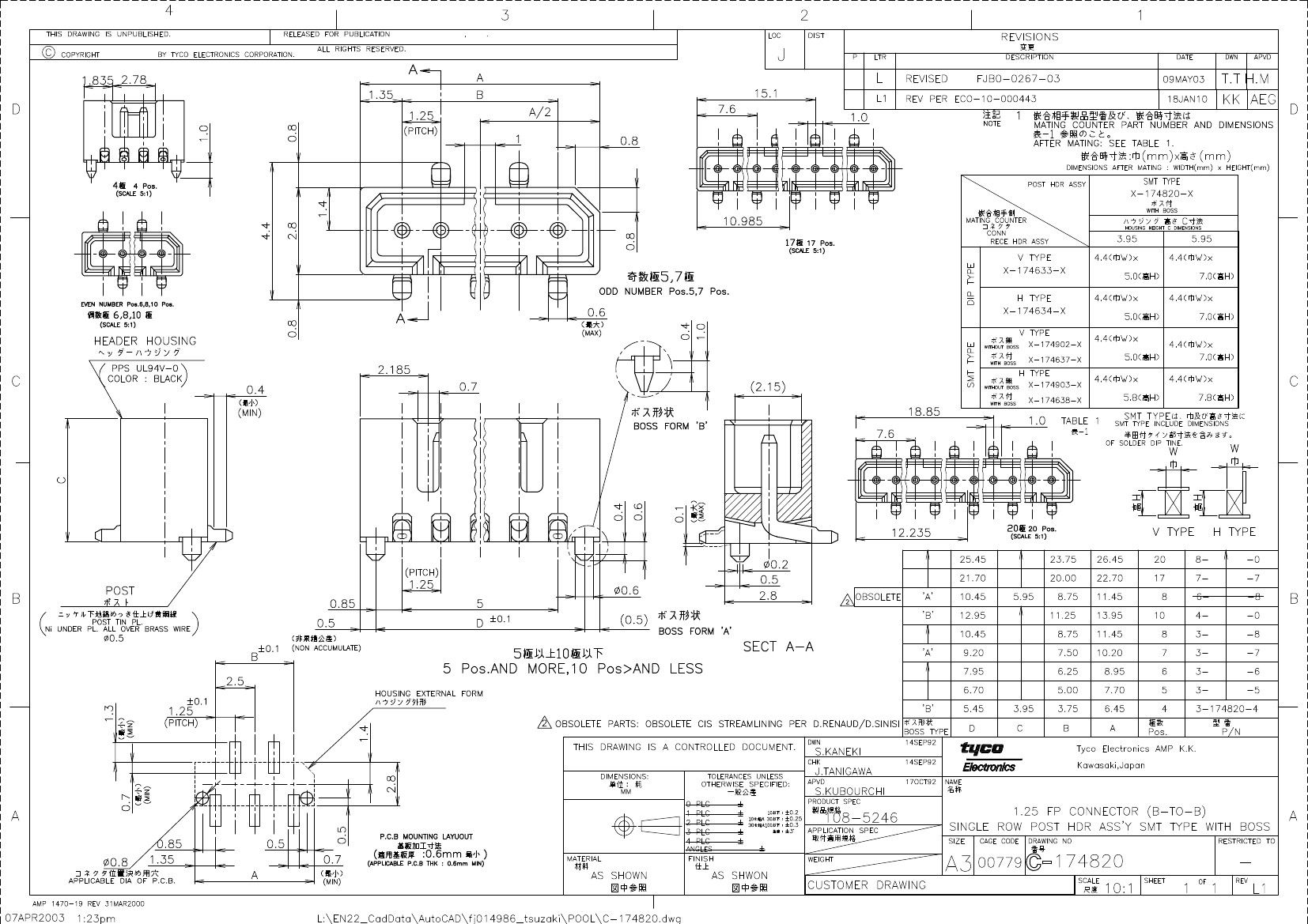

174820 Drawing
1.25mm FP Series Spec
3D Model
3-174820-7.pdf
3-174820-7.igs
3-174820-7.s
Standard Package20,000
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Headers, Male Pins
PackagingBulk
Connector TypeShrouded
Number of Positions7
Number of Positions LoadedAll
Pitch0.049" (1.25mm)
Number of Rows1
Row Spacing-
Height Stacking (Mating)-
Molding Height Above Board0.156" (3.95mm)
Contact Mating Length-
Mounting TypeSurface Mou
TerminatiSolde
Contact FinishTi
Contact Finish Thickness-
FeaturesBoard Guide
ColBlack

3-174820-7 Related Products

3-174820-7 7-174820-7 3-174820-4 4-174820-0 8-174820-0 3-174820-8
Description conn header .049" 7pos smt tin conn header .049" 17pos smt tin conn header .049" 4pos smt tin conn header .049" 10pos smt tin conn header .049" 20pos smt tin conn header .049" 8pos smt tin
Standard Package 20,000 250 20,000 20,000 5,000 20,000
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family Rectangular - Board to Board Connectors - Headers, Male Pins Rectangular - Board to Board Connectors - Headers, Male Pins Rectangular - Board to Board Connectors - Headers, Male Pins Rectangular - Board to Board Connectors - Headers, Male Pins Rectangular - Board to Board Connectors - Headers, Male Pins Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging Bulk Bulk Bulk Bulk Bulk Bulk
Connector Type Shrouded Shrouded Shrouded Shrouded Shrouded Shrouded
Number of Positions 7 17 4 10 20 8
Number of Positions Loaded All All All All All All
Pitch 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm) 0.049" (1.25mm)
Number of Rows 1 1 1 1 1 1
Molding Height Above Board 0.156" (3.95mm) 0.234" (5.95mm) 0.156" (3.95mm) 0.156" (3.95mm) 0.234" (5.95mm) 0.156" (3.95mm)
Mounting Type Surface Mou Surface Mou Surface Mou Surface Mou Surface Mou Surface Mou
Terminati Solde Solde Solde Solde Solde Solde
Contact Finish Ti Ti Ti Ti Ti Ti
Features Board Guide Board Guide Board Guide Board Guide Board Guide Board Guide
Col Black Black Black Black Black Black
Mating Products - 4-174637-7-ND - CONN RECEPT 17POS .049 SMT TIN 3-174638-4-ND - CONN RCPT 4POS .049 SMT R/A TIN3-174637-4-ND - CONN RECEPT 4POS .049 SMT TIN 4-174637-0-ND - CONN RECEPT 10POS .049 SMT TIN 5-174638-0-ND - CONN RCPT 20POS .049 SMT R/A TIN 3-174638-8-ND - CONN RCPT 8POS .049 SMT R/A TIN3-174637-8-ND - CONN RECEPT 8POS .049 SMT TIN
