6-104178-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 6-104178-3

6-104178-3: Descriptionconn header .050 25pos vert T/H; CategoryThe connector; File Size165KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

6-104178-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-104178-3	-	-	View	Buy Now

6-104178-3 Overview

conn header .050 25pos vert T/H

6-104178-3 Parametric

Parameter Name	Attribute value
Datasheets

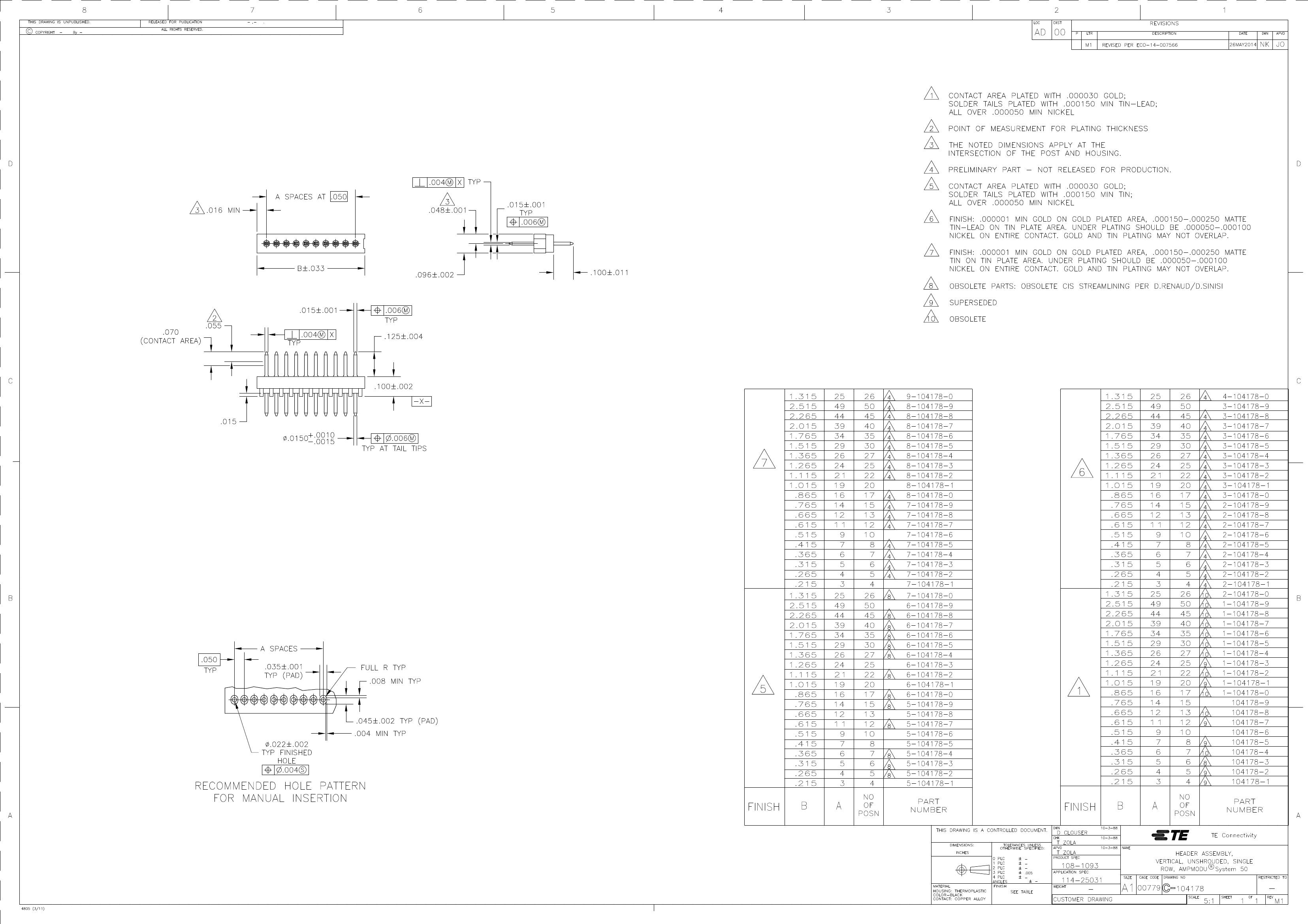

104178 Drawing
RoHS Informati
6-104178-3 Statement of Compliance
RoHS 2 Stateme
Standard Package	1,200
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube
Connector Type	Unshrouded
Number of Positions	25
Number of Positions Loaded	All
Pitch	0.050" (1.27mm)
Number of Rows	1
Row Spacing	-
Height Stacking (Mating)	0.175", 0.450" (4.45mm, 11.43mm)
Molding Height Above Board	0.100" (2.54mm)
Contact Mating Length	0.125" (3.18mm)
Mounting Type	Through Hole
Terminati	Solde
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Features	-
Col	Black
Mating Products	2-487544-2-ND - CONN RECEPT 25POS .050 SINGLE2-487545-2-ND - CONN RECEPT 25POS .050 W/LATCH

Preview

Download Datasheet

View All

6-104178-3 Related Products

	6-104178-3	5-104178-5	104178-6	5-104178-1
Description	conn header .050 25pos vert T/H	conn header .050 8pos vert T/H	conn header .050 10pos vert T/H	conn header .050 4pos vert T/H
Standard Package	1,200	2,200	2,000	400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Tube	Tube	Tube	Tube
Connector Type	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Number of Positions	25	8	10	4
Number of Positions Loaded	All	All	All	All
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	1	1	1	1
Height Stacking (Mating)	0.175", 0.450" (4.45mm, 11.43mm)	0.175", 0.450" (4.45mm, 11.43mm)	0.175", 0.450" (4.45mm, 11.43mm)	0.175", 0.450" (4.45mm, 11.43mm)
Molding Height Above Board	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
Mating Products	2-487544-2-ND - CONN RECEPT 25POS .050 SINGLE2-487545-2-ND - CONN RECEPT 25POS .050 W/LATCH	A115238-ND - CONN RCPT 8POS GOLD T/H	104192-2-ND - CONN RCPT 10POS GOLD T/H487544-7-ND - CONN RECEPT 10POS .050 SINGLE487545-7-ND - CONN RECEPT 10POS .050 W/LATCH	487545-1-ND - CONN RECEPT 4POS .050 W/LATCH
