DN-93501-U/R: Descriptionconn jck rj45 tool free cat5e RD; CategoryThe connector; File Size93KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

DN-93501-U/R Overview

conn jck rj45 tool free cat5e RD

DN-93501-U/R Parametric

Parameter Name	Attribute value
Datasheets
DN-93501-U/R
Assembly Instructions
Product Photos
DN-93501-U/R
Featured Produc
Cat 5e / Cat 6 Keystone Jacks
Standard Package	500
Category	Connectors, Interconnects
Family	Keystone - Inserts
Style	Modul
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Interior Type (Adapter End)	IDC, Pressdown, Punchdown Block
Exterior Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Interior Housing Material	-
Exterior Housing Col	Red
Interior Housing Col	-
Exterior Contact Material	Phosphor Bronze
Interior Contact Material	-
Exterior Contact Finish	Gold
Interior Contact Finish	-
Operating Temperature	-10°C ~ 60°C
Ratings	Cat5e
Specifications	-
Features	-
Exterior Contact Finish Thickness	50µin (1.27µm)
Interior Contact Finish Thickness	-
Dynamic Catalog	Keystone Jacks
Associated Produc	AE10607-ND - PATCH PANEL 19" 24PORT BLANKAE10606-ND - PATCH PANEL 19" 16PORT BLANK
Other Names	AE10472DN93501UR

Preview

Download Datasheet

View All

Material:

1 RJ45 Jack Housing: ABS, UL94V-0

- with optional color

2. Jack Bracket Set: PBT, UL94V-0

3. RJ45 Jack Contact Material & Finished

- Phosphor Bronze

- Contact area: Min. 3MM 50 Micro-inch Gold

plated over Nickel plated

4. IDC Housing: PC, 94V-2

5. IDC Terminal material & finished:

- Phosphor Bronze w/Min. 50 Micro-inch Tin plated

- Suitable for 23-24AWG stranded & solid wire

6. IDC CAP: PC, UL94V-2

Electrical:

• Wiring: T568A & T568B

• Insertion Force: 900 GM for 8 contacts

• Retention Strength: 7.7Kg between Jack & Plug

• Operating Temperature: -10°C ~ +60°C

• Durability: Jack: 750 cycles Plug-Jack mating and

unmating test, Insertion cycles at 20 cycles/

minute max. Contact resistance test per 100

cycles.

• The Cat.5e transmission performance is in compliance

with the ANSI/TIA/EIA 568 B.2 standard

Unit: MM±0.1MM

Scale

1:1

Drawn

Approved

12.20.11

Name

Chappell

Item No.

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

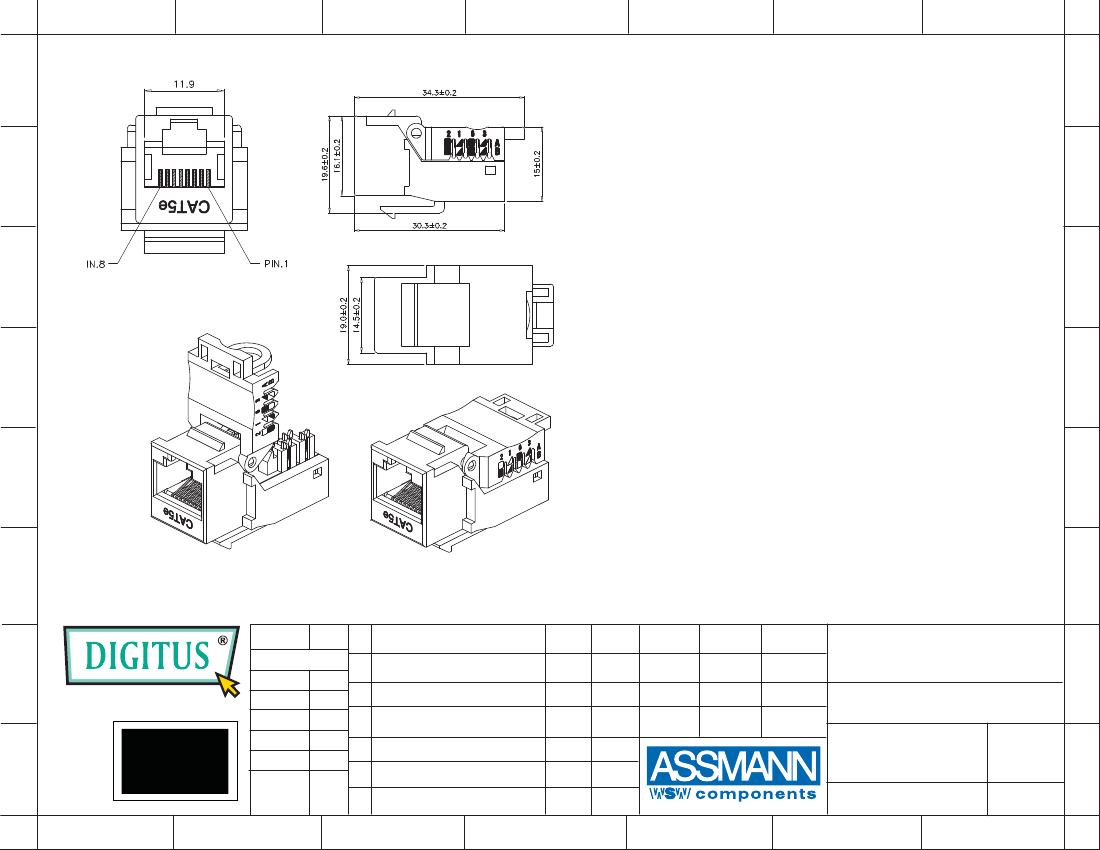

DN-93501-U/R

Title

Cat5e Unshielded Keystone Jack -

90° Tool Free Type, Red

Drawing No.

RoHS

Complaint

Angle

rev00

Sheet

Modification

Date

Name

Replace
