TS-111-G-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> TS-111-G-A

TS-111-G-A: Descriptionconn header .100" 11pos gold pcb; CategoryThe connector; File Size578KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TS-111-G-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TS-111-G-A	-	-	View	Buy Now

TS-111-G-A Overview

conn header .100" 11pos gold pcb

TS-111-G-A Parametric

Parameter Name	Attribute value
Datasheets
HTS, TD, TS Series Spec Shee
TX-1XX-X-X Drawing 1
TX-1XX-X-X Drawing 2
TX-1XX-X-X Drawing 3
TX-1XX-X-X Drawing 4
Catalog Drawings
TS Series Single
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Headers, Male Pins
Packaging	Bulk
Connector Type	Unshrouded
Number of Positions	11
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Height Stacking (Mating)	-
Molding Height Above Board	0.100" (2.54mm)
Contact Mating Length	0.166" (4.22mm)
Mounting Type	Through Hole
Terminati	Solde
Contact Finish	Gold
Contact Finish Thickness	20µin (0.51µm)
Features	-
Col	Black
Dynamic Catalog	TS Series
Mating Products	SAM1126-11-ND - CONN RCPT .100" 11POS TIN WW R/ASAM1125-11-ND - CONN RCPT .100" 11POS TIN WWSAM1124-11-ND - CONN RCPT .100" 11PS GOLD WW R/ASAM1123-11-ND - CONN RCPT .100" 11POS GOLD WWSAM1122-11-ND - CONN RCPT .100" 11POS TIN PCBSAM1121-11-ND - CONN RCPT .100" 11POS GOLD PCBSAM1120-11-ND - CONN RCPT .100" 11POS TIN T/HSAM1119-11-ND - CONN RCPT .100" 11POS TIN T/HSAM1118-11-ND - CONN RCPT .100" 11POS GOLD T/HSAM1117-11-ND - CONN RCPT .100" 11POS GOLD T/HSAM1116-11-ND - CONN RCPT .100" 11POS GOLD T/HSAM1115-11-ND - CONN RCPT .100" 11POS GOLD T/H
Other Names	SAM1111-11

Preview

Download Datasheet

View All

F-219

TD –108–G–AA

TS –119–G–A–1

HTS–115–T–C–2

(2.54 mm) .100"

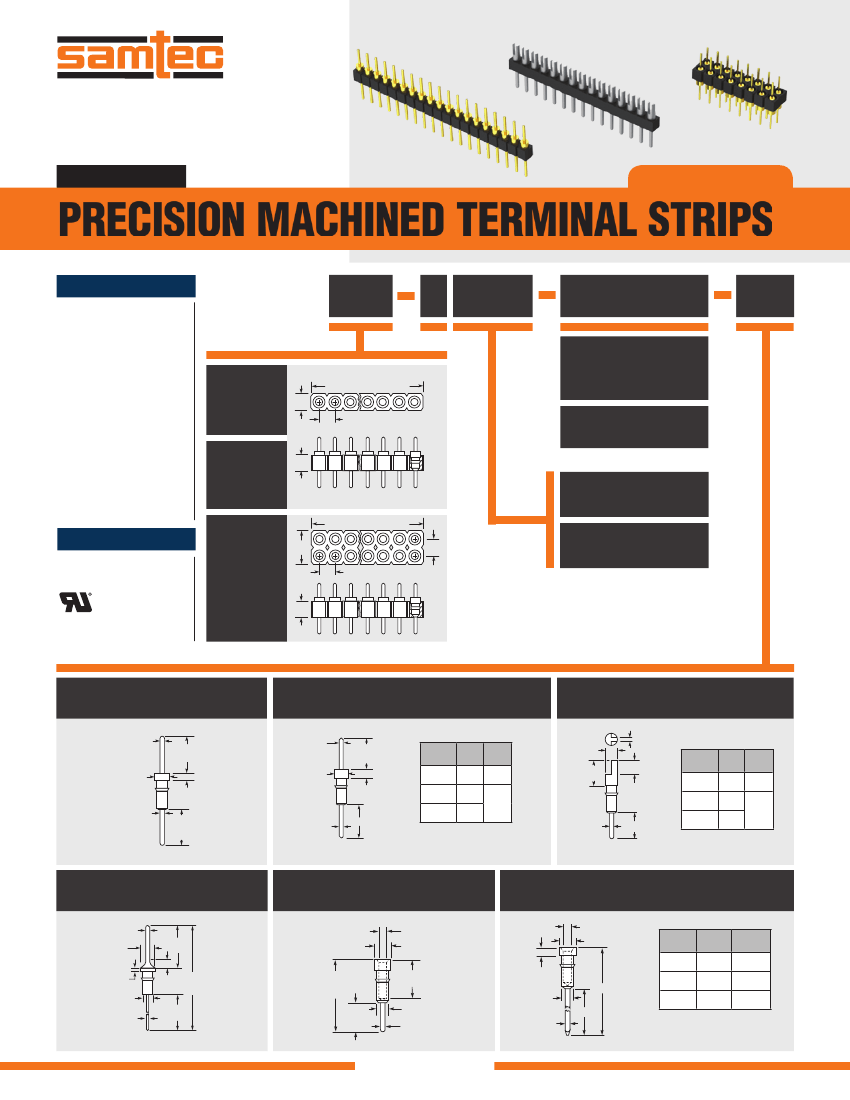

TS, TD, HTS SERIES

PRECISION MACHINED TERMINAL STRIPS

SPECIFICATIONS

For complete specifications see

www.samtec.com?TS,

www.samtec.com?TD or

www.samtec.com?HTS

Insulator Material:

Black G.F. Polyester (TS, TD)

Black Liquid Crystal Polymer

(HTS)

Terminal Material:

Brass, except Style G is

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni or

Sn over 100 µ" (2.54 µm) Cu

or 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

Mates with:

SS, SD, HSS, SL,

SDL, ESS, ESD

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

= Single

Row Terminal

Strip

(2.54) .100 x No. of Positions

(2.54)

.100

(2.54)

.100 TYP

= 20 µ" (0.51 µm) Gold

Except –J & –L are

10 µ" (0.25 µm) Gold

–G

–T

= Tin

= Single Row

High Temp

Terminal Strip

HTS

(2.54)

.100

thru

=TS Series

(2.54) .100 x No. of Positions

(5.08)

.200

(2.54)

.100

(2.54)

.100 TYP

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

= Double Row

Terminal Strip

= HTS & TD Series

thru

FILE NO. E111594

(2.54)

.100

Note:

Some lengths, styles and options

are non-standard, non-returnable.

–AA

(0.46)

.018

DIA

(1.78)

.070

DIA

(0.46)

.018

DIA

(4.22)

.166

(0.64)

.025

DIA

(1.78)

.070

DIA

(1.32)

.052

(3.96)

.156

±.015

–A, –A–1, –A–2

(4.22)

.166

–C, –C–1, –C–2

(1.83)

.072

DIA

(3.99)

.157

(2.54)

.100

(0.89)

.035

LEAD

STYLE

–A

–A–1

–A–2

(DIA) (±.015)

(0.46) (3.96)

.018

.156

(0.64)

.025 (5.33)

(0.89) .210

.035

LEAD

STYLE

–C

–C–1

–C–2

(DIA) (±.015)

(0.46) (3.96)

.018

.156

(0.64)

.025 (5.33)

(0.89) .210

.035

(1.32)

.052

Component No. = T-1R5-

-A Component No. =T-1R0-

-A-X Component No. =T-1R7

-C Component No. =T-1R2-

-C-X Component No. =T-1R9-

–G–1

(0.51)

.020 DIA

(1.78)

.070 DIA

(0.51)

.020

(1.32)

.052 DIA

(0.46)

.018 DIA

(4.47)

.176

–J

(1.83)

.072

DIA

(7.62)

.300

± .015

(3.18)

.125

± .010

(1.07)

.042

DIA

(1.07)

.042

–L–1, –L–2, –L–3

(1.83)

.072 DIA

LEAD

STYLE

–L–1

–L–2

–L–3

(DIA)

(12.95)

.510

(9.14)

.360

(6.60)

.260

(±.015)

(17.86)

.703

(14.05)

.553

(11.51)

.453

(12.90)

(1.02) .508

.040 ± .015

(4.75)

.187

(3.81)

.150

(1.32)

.052 DIA

(0.51)

.020 DIA

(0.76)

.030

(1.32)

.052

DIA

(0.64)

.025

Component No. = T-1R5-

Component No. = S-1P1-

Component No. = S-1W1

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
