9-146256-0-17 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 9-146256-0-17

9-146256-0-17: Descriptionconn hdr brkway .100 34pos vert; CategoryThe connector; File Size253KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

9-146256-0-17 Overview

conn hdr brkway .100 34pos vert

9-146256-0-17 Parametric

Parameter Name	Attribute value
Datasheets
146256 Drawing
RoHS Informati
9-146256-0 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
100 Center Dual Straight Side
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded, Breakaway
Number of Positions	34
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.230" (5.84mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Col	Black
Dynamic Catalog	AMPMODU Mod II Series
Mating Products	1-5146140-6-ND - CONN RCPT 34POS DL R/A PCB1-147102-7-ND - CONN RCPT 34POS VERT DUAL .1001-102448-5-ND - CONN RCPT 34POS DL .100 IDC GOLDA33400-ND - CONN RECEPT 34POS .100 IDC GOLDA32965-ND - CONN RECEPT 34POS .100 VERT DUALA32947-ND - CONN RECEPT 34POS .100 VERT DUAL1-535598-7-ND - CONN RCPT 34POS .100 DUAL T/H AU1-535542-7-ND - CONN RECEPT 34POS .100 VERT DUALA26496-ND - CONN RECEPT 34POS .100 VERT DUALA26445-ND - CONN RECEPT 34POS .100 RT/A DUALA25908-ND - CONN HOUSING 34POS .100 POL DUALA25928-ND - CONN HOUSING 34POS .100 DUAL ROWA26466-ND - CONN RECEPT 34POS .100 VERT DUALA25885-ND - CONN HOUSING 34POS .100 POL DUALA25821-ND - CONN HOUSING 34POS .100 DUAL ROWA25886-ND - CONN HOUSING 34POS .100 POL DUAL4-87977-2-ND - CONN RCPT 34POS DL .100 CRIMPA3057-ND - CONN RECEPT 34POS .100 IDC GOLDA3043-ND - CONN HOUSING 34POS .100 DUAL
Other Names	A34269-17

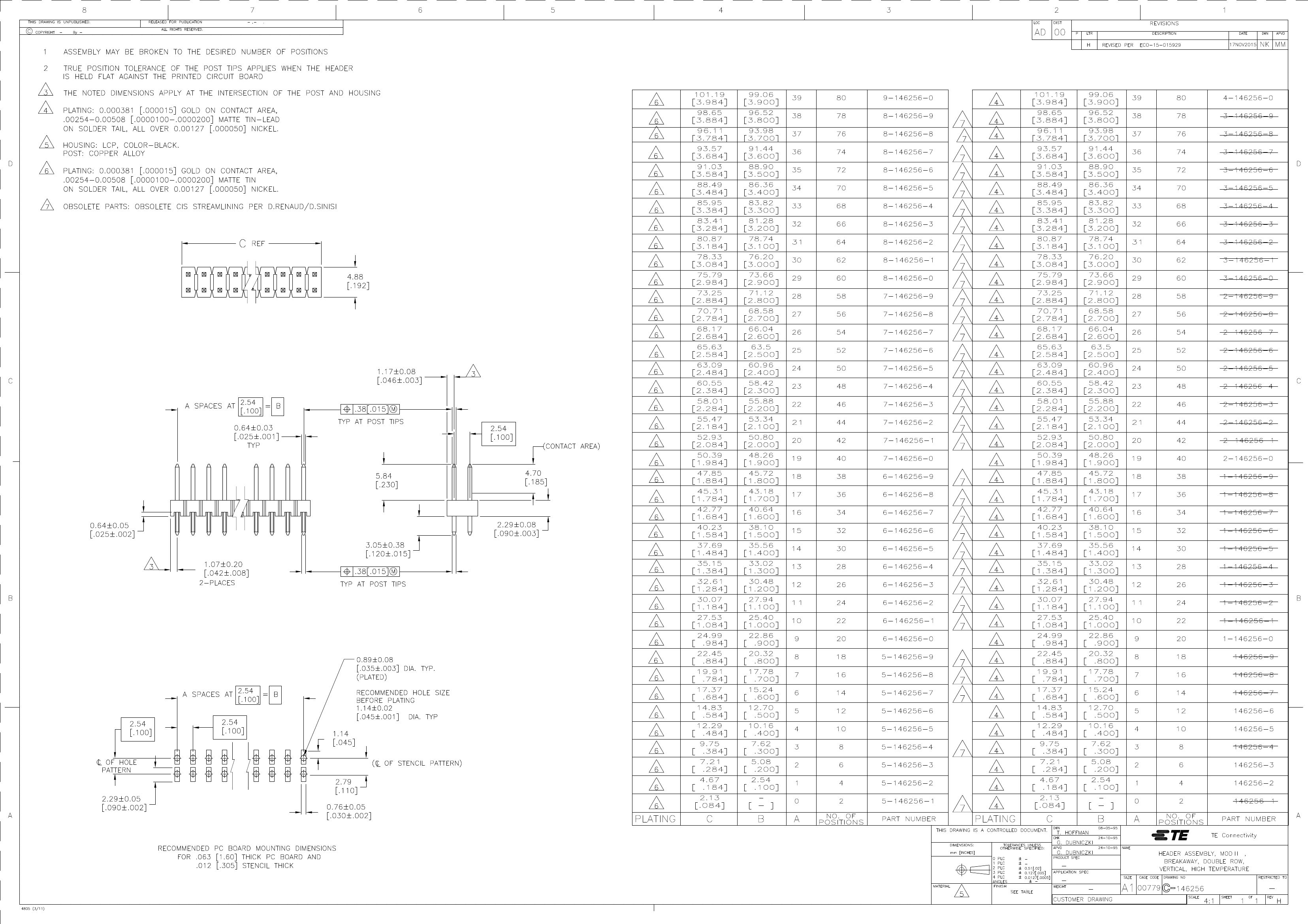

Preview
