2-1445094-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-1445094-3

2-1445094-3: Descriptionconn header 3pos vert T/H 30gold; CategoryThe connector; File Size49KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1445094-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1445094-3	-	-	View	Buy Now

2-1445094-3 Overview

conn header 3pos vert T/H 30gold

2-1445094-3 Parametric

Parameter Name	Attribute value
Datasheets
1445094
RoHS Informati
2-1445094-3 Statement of Compliance
RoHS 2 Stateme
3D Model
2-1445094-3.pdf
Standard Package	2,128
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	3
Number of Positions Loaded	All
Pitch	0.118" (3.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Locking Ram
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Mating Products	A30259-ND - CONN RECEPT 3MM 3POS MATE-N-LOK

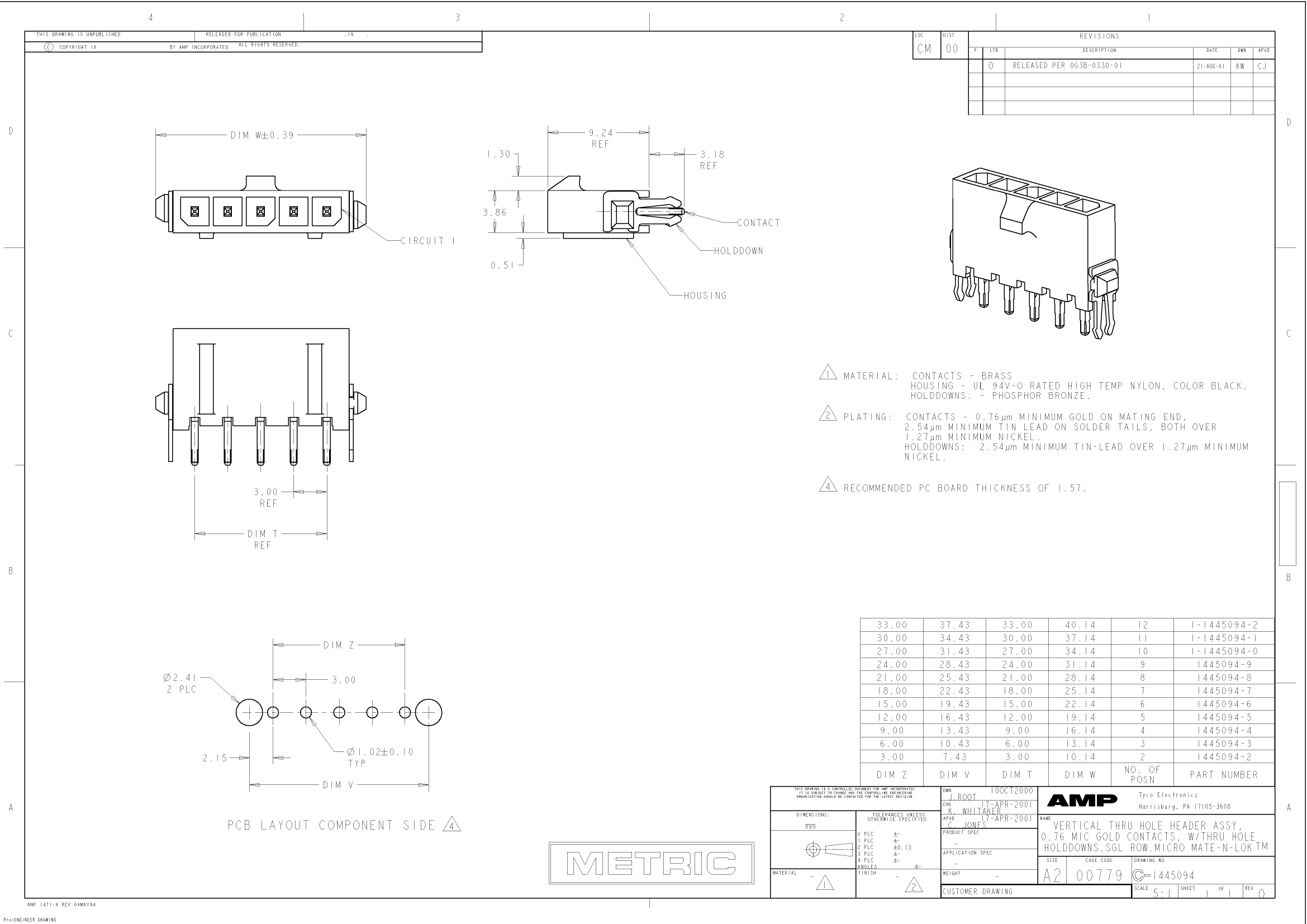

Preview

Download Datasheet

View All

2-1445094-3 Related Products

	2-1445094-3	1445094-4	2-1445094-6	2-1445094-2	2-1445094-9	3-1445094-0	2-1445094-7	2-1445094-8	3-1445094-1	3-1445094-2
Description	conn header 3pos vert T/H 30gold	conn header 4pos str 30gold T/H	conn header 6pos vert T/H 30gold	conn header 2pos vert T/H 30gold	conn header 9pos vert T/H 30gold	conn header 10pos vert T/H 30au	conn header 7pos vert T/H 30gold	conn header 8pos vert T/H 30gold	conn header 11pos vert T/H 30au	conn header 12pos vert T/H 30au
Standard Package	2,128	210	1,232	350	896	784	1,120	896	672	672
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	3	4	6	2	9	10	7	8	11	12
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All
Pitch	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Number of Rows	1	1	1	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Mating Products	A30259-ND - CONN RECEPT 3MM 3POS MATE-N-LOK	A30260-ND - CONN RECEPT 3MM 4POS MATE-N-LOK	A30262-ND - CONN RECEPT 3MM 6POS MATE-N-LOK	A30258-ND - CONN RECEPT 3MM 2POS MATE-N-LOK	A30265-ND - CONN RECEPT 3MM 9POS MATE-N-LOK	A30266-ND - CONN RECEPT 3MM 10POS MATE-N-LOK	A30263-ND - CONN RECEPT 3MM 7POS MATE-N-LOK	A30264-ND - CONN RECEPT 3MM 8POS MATE-N-LOK	A30267-ND - CONN RECEPT 3MM 11POS MATE-N-LOK	A30268-ND - CONN RECEPT 3MM 12POS MATE-N-LOK
