CRS-02-LPD-18-A-GD15-SM datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CRS-02-LPD-18-A-GD15-SM

Preview

CRS-02-LPD-18-A-GD15-SM: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CRS-02-LPD-18-A-GD15-SM Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

CRS-02-LPD-18-A-GD15-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166997101
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.4
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.079 inch
body length	0.465 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	CRS-02-LPD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

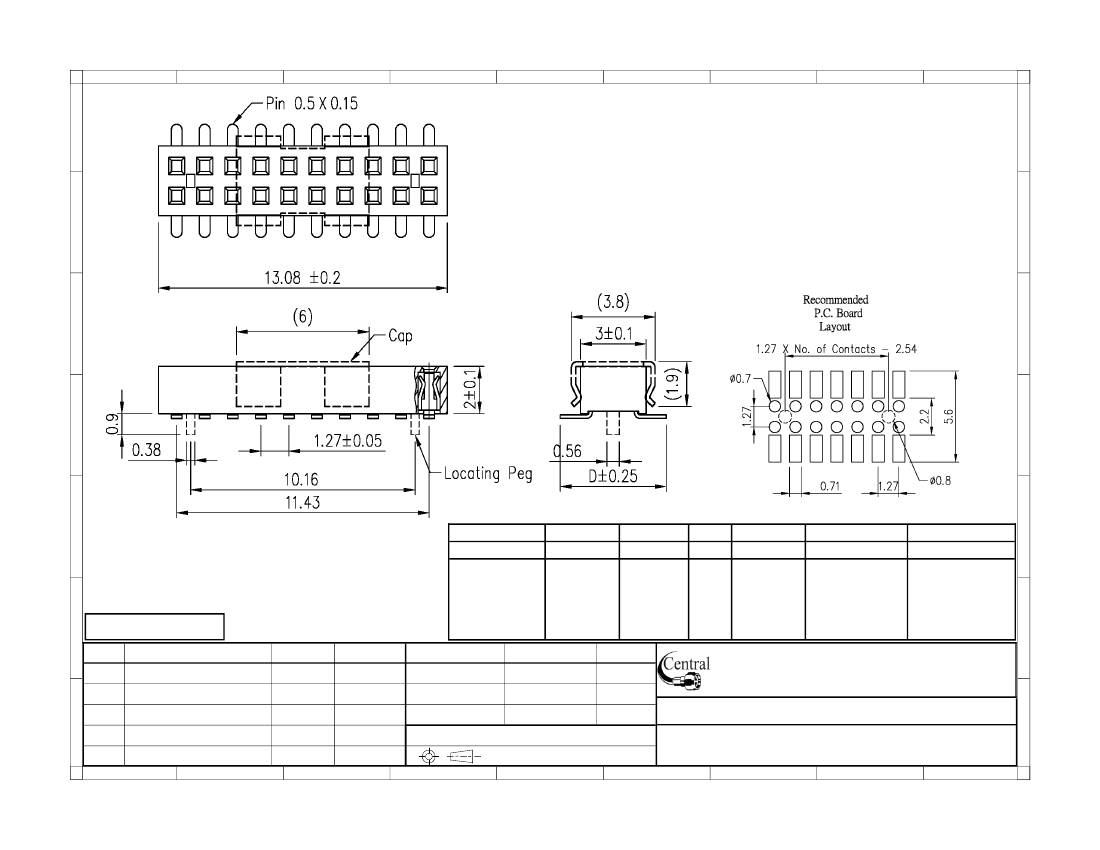

SPECIFICATIONS

Current rating:

1 amp

Contact material:

Phosphor bronze

Contact plating:

Gold, tin or duplex

Contact resistance:

20 milliohms max.

Insulation resistance: 1,000 megohms min.

Withstanding:

300VAC for 1 min.

Operating temperature: -40°C to +105°C

Processing temperature: 230°C for 30-60 sec. max.

260°C for 10 sec. max.

A

B

C

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Profile

Pos. Contacts (D)

CRS

02

LPD

XX

A

Receptacle strip, 02=Dual row 2mm height 04-40 A=4.2 (std)

1.27mm pitch

B=4.5

C=4.8

D=5.0

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/22/06

08/22/06 Part No.:

Plating

XX

TN=Tin

SGXX=Duplex

GDXX=Gold

XX=Flash if blank,

3, 5, 10, 15µ”

Options

XX

SM=Surface mount

CP=Centering pin

PPL=Pick cap

PPF=Pick film

TR=Tape and reel

E

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

CRS-02-LPD-XX-A-XX-SM

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Receptacle strip, 1.27mm pitch, SMT type

G

1

2

3

4
