2364-6-16-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2364-6-16-1

2364-6-16-1: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2364-6-16-1 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking

2364-6-16-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307792809
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.569 inch
subject depth	0.31 inch
body length	1.531 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	IDC
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2364
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

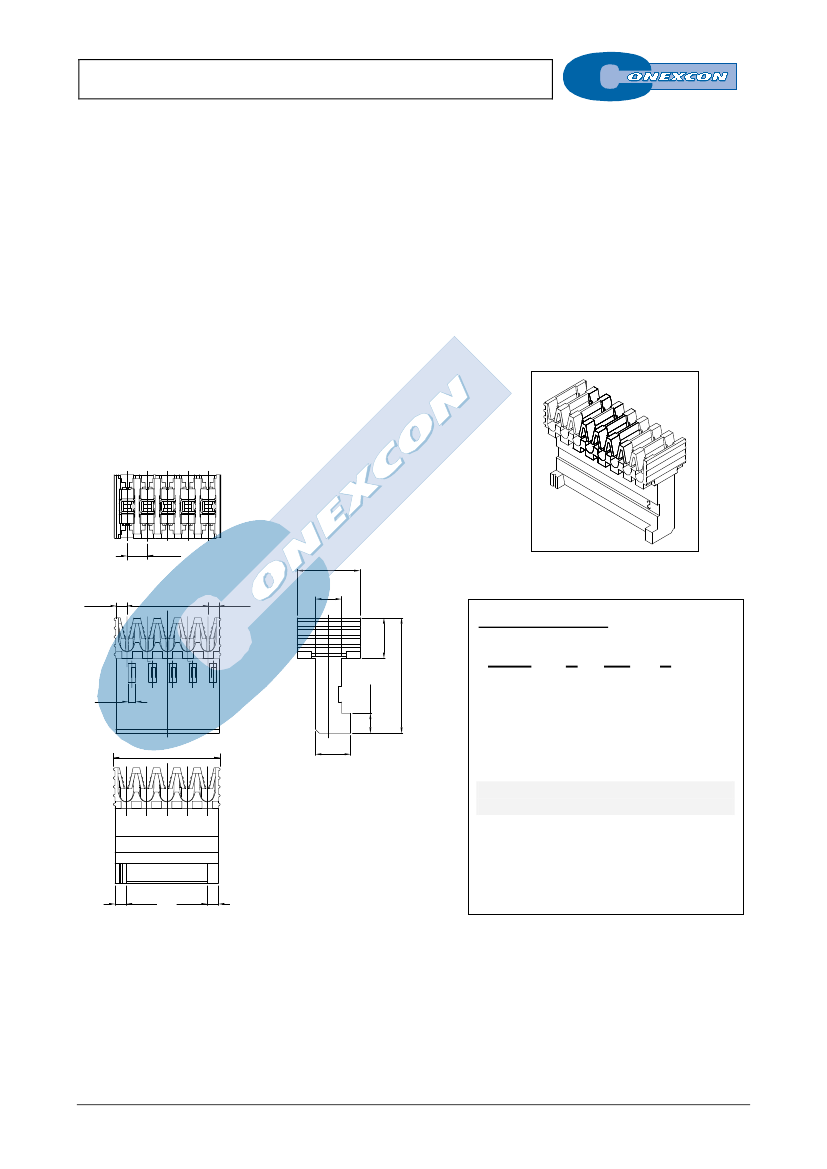

SINGLE ROW SIDE IDC ENTRY CONNECTOR

2364 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features



Available in 2 through 18 circuits



Mates with 2.54 mm pin headers 2345, 2346 and 2367

series



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 1000 V AC/minute



Insulation resistance: >1000 MΩ

Mechanical Features



Wires range : 24 AWG to 28 AWG O.D max. 1.20 mm



Twin insulation displacement slot



Side entry wires

Materials



Insulator: Nylon 66. UL 94 V-0

Contact: Brass

Operating temperature: -25ºC to +85ºC

RoHS compliant



Durability: 25 cycles

Dimension Information

2.54

.100

7.88

.310

1.41

.056

3.27

.129

5.10

.201

1.41

.056

Ordering Information:

2364 -

14.46

.569

T-

XX-

0.90

.035

2.50

.098

1. Connector Series

4.4

.173

2. (T) Contact Plating



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish



T =

15µ” gold over nickel



T =

30µ” gold over nickel

3. (XX) Number of circuits

1.4

.055

1.4

.055



Available in 2 through 18 circuits

Dimensions:

(In mm.)

= 2.54 x (XX)

= 2.54 x (XX*-1)+0.8

* XX

(Number of circuits)

E-XX
