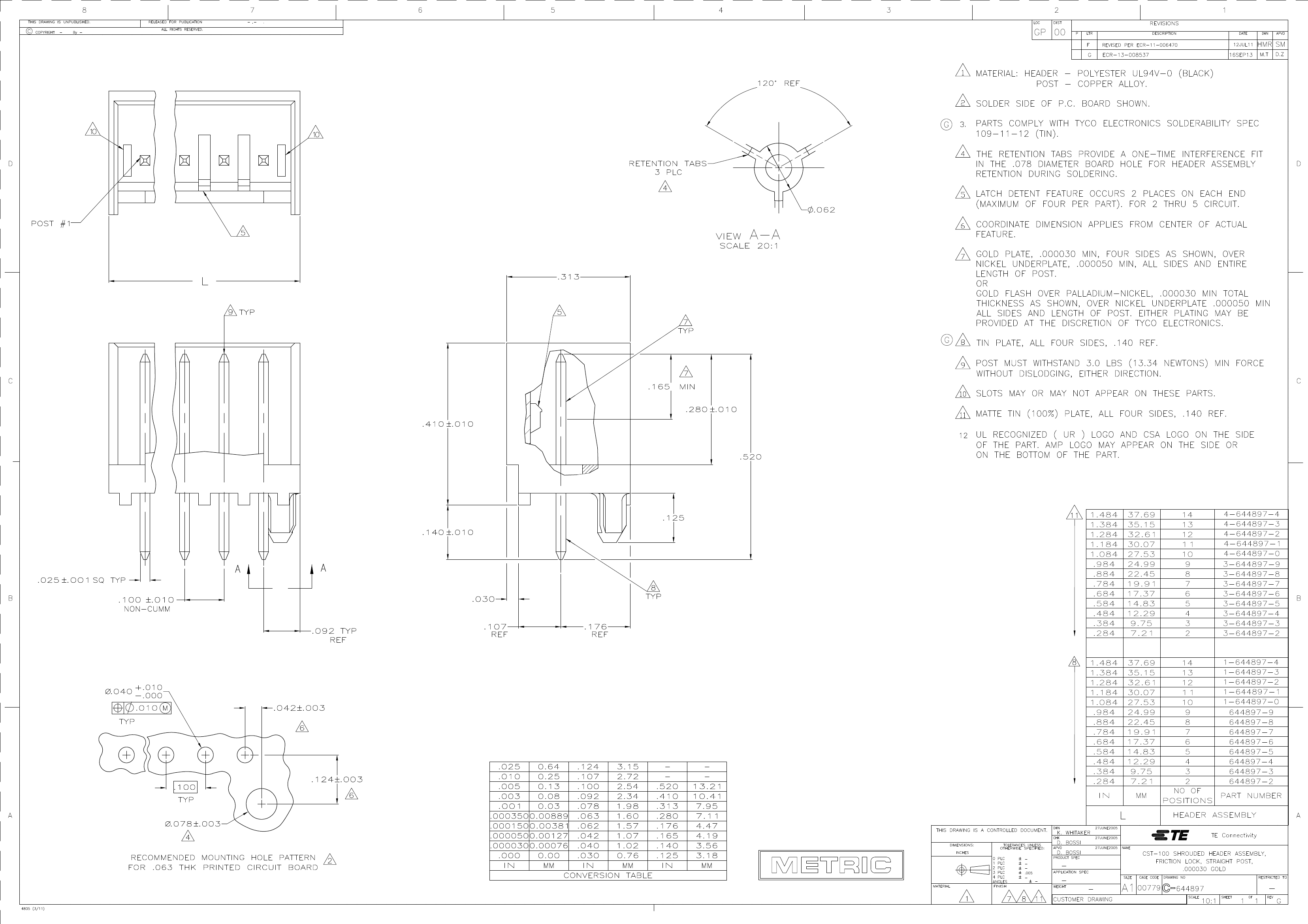

3-644897-2 |
3-644897-8 |
| Description |
02P CST100 SHRD HDR ASSY LF |
08P CST100 SHRD HDR ASSY LF |
| Brand Name |
AMP |
AMP |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| Maker |
TE Connectivity |
TE Connectivity |
| package instruction |
ROHS COMPLIANT |
ROHS COMPLIANT |
| Reach Compliance Code |
compliant |
compliant |
| Board mount options |
PEG |
PEG |
| body width |
0.313 inch |
0.313 inch |
| subject depth |
0.41 inch |
0.41 inch |
| body length |
0.284 inch |
0.884 inch |
| Body/casing type |
PLUG |
PLUG |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact completed and terminated |
Matte Tin (Sn) |
Matte Tin (Sn) |
| Contact point gender |
MALE |
MALE |
| Contact material |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
1000VAC V |
1000VAC V |
| Durability |
15 Cycles |
15 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
8.896 N |
8.896 N |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
POLYESTER |
POLYESTER |
| JESD-609 code |
e3 |
e3 |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
644897 |
644897 |
| Plug contact pitch |
0.1 inch |
0.1 inch |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation option 2 |
FRICTION LOCK |
FRICTION LOCK |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
1 |
1 |
| Number of rows loaded |
1 |
1 |
| Maximum operating temperature |
105 °C |
105 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| Guideline |
UL, CSA |
UL, CSA |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.14 inch |
0.14 inch |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
2 |
8 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
3.614 N |
3.614 N |
| Base Number Matches |
1 |
1 |
