BBS-118-G-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BBS-118-G-A

Preview

BBS-118-G-A: Descriptionconn headr 18pos .100 pcb gold; CategoryThe connector The connector; File Size409KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BBS-118-G-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BBS-118-G-A	-	-	View	Buy Now

BBS-118-G-A Overview

conn headr 18pos .100 pcb gold

BBS-118-G-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	_compli
ECCN code	EAR99
Factory Lead Time	2 weeks
Samacsys Descripti	18 Position .100" Single Row, Screw Machine Terminal Stri
body length	1.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

BBS–116–G–C

F-214

BDL–120–T–F

BBL

(3.89 mm)

.153"

SL

BBS–108–T–A

(2,54 mm) .100"

BBS–120–T–B

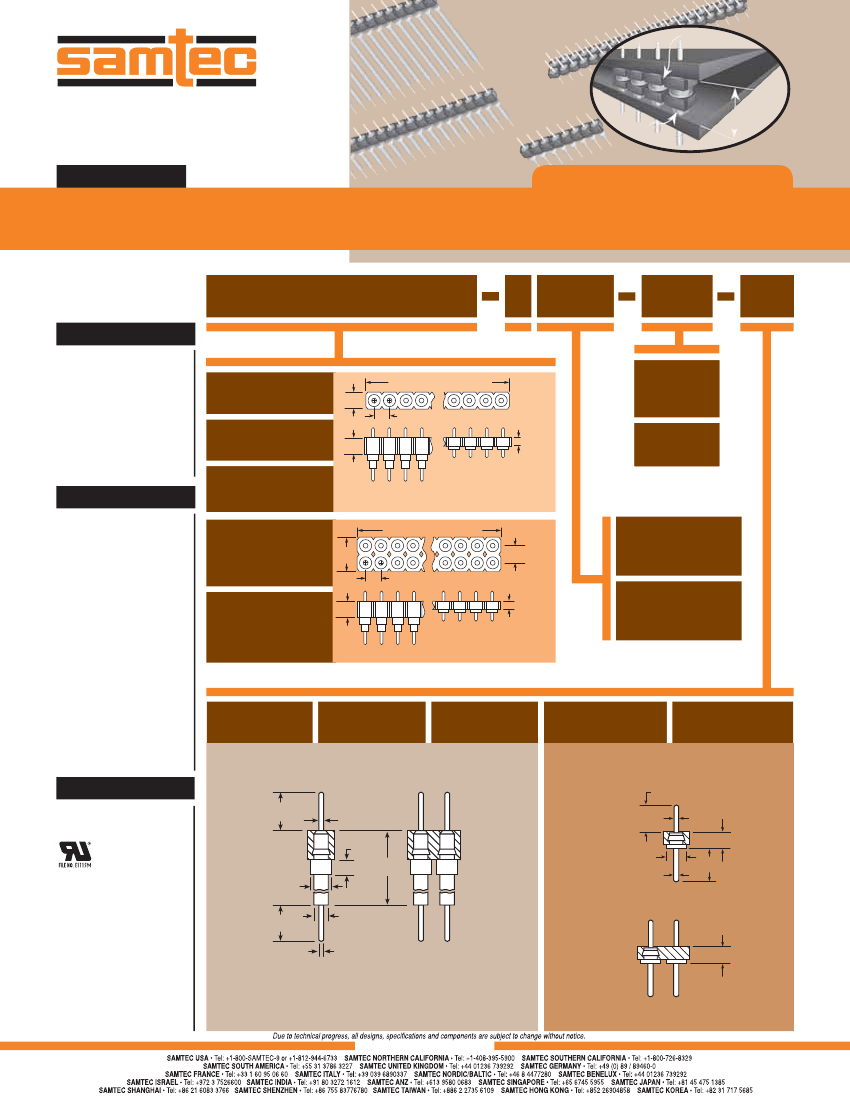

BBS, BBL, BHS, BBD, BDL SERIES

MACHINED BOARD STACKING STRIPS

Mates with:

SS, SD, HSS, SL, SDL,

ESS, ESD

TYPE

STRIP

1

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

FEATURES

•

Low proﬁle design

achieves (3,89 mm)

.153" board spacings

when mated with SL

Series.

•

Approach the reliability

of a permanent

connection with the

ﬂexibility of a separable

connection.

BBS

= Standard Single Row

(2,54) .100 x No. of Positions

(2,54)

.100

(2,54) .100 TYP

(1,27)

.050

–G

=20 µ" (0,51 µm)

Gold

BBL

= Low Proﬁle Single Row

(2,54)

.100

–T

=Tin

BBL body available with

Styles –E & –F only.

BHS

= High Temp Single Row

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?BBS,

www.samtec.com?BBL,

www.samtec.com?BHS

www.samtec.com?BBD or

www.samtec.com?BDL

Insulator Material:

Black Glass Filled Polyester

(BBS, BBD, BBL)

Black High Temp Nylon

(BDL)

Black Liquid Crystal Polymer

(BHS)

Temperature Range:

-55°C to +125°C

Terminal Material:

Phosphor Bronze or Brass

Plating:

Au or Sn over 50µ" (1,27 µm) Ni

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

(BBS, BBD, BBL, BDL))

Wave, or reﬂow with

all Au (BHS)

BBS

BHS

BBL

(2,54) .100 x No. of Positions

BBD

= Standard Double Row

(5,08)

.200

(2,54) .100 TYP

(2,54)

.100

(1,27)

.050

01 thru 32

= BBS & BBL

BDL

= Low Proﬁle Double Row

(2,54)

.100

01 thru 36

BDL body available with

Styles –E & –F only.

= BBD, BDL & BHS

BBD

BDL

–A

Z = (5,33 mm) .210"

–B

Z = (8,51 mm) .335"

–C

Z = (14,86 mm) .585"

–E

Z = (1,78 mm) .070"

–F

Z = (2,16 mm) .085"

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(3,18)

.125

(0,46)

.018

DIA

(1,27)

.050

Style E:

(2,74)

.108

Style F:

(3,18)

.125

(0,46)

.018 DIA

Z

(1,78)

.070 DIA

(0,46)

.018 DIA

(3,18)

.125

(1,78)

.070

DIA

(1,27)

.050 DIA

(0,46)

.018

DIA

BBL

Series

(3,18)

.125

Z

BBD

Series

BDL

Series

BBS and BHS

Series

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

WWW.SAMTEC.COM
