FMXMCA100JHC-007.000000M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FMXMCA100JHC-007.000000M

FMXMCA100JHC-007.000000M: DescriptionSeries - Fundamental Quartz Crystal, 7MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-2; CategoryPassive components Crystal/resonator; File Size73KB，1 Pages; ManufacturerFrequency Management International; Environmental Compliance

Download Datasheet Parametric View All

FMXMCA100JHC-007.000000M Overview

Series - Fundamental Quartz Crystal, 7MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-2

FMXMCA100JHC-007.000000M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1315792300
package instruction	ROHS COMPLIANT, MINIATURE PACKAGE-2
Reach Compliance Code	compliant
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	50 ppm
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	7 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	D3.1XH10.1 (mm)/D0.122XH0.398 (inch)
Series resistance	80 Ω
surface mount	NO

Preview

Download Datasheet

View All

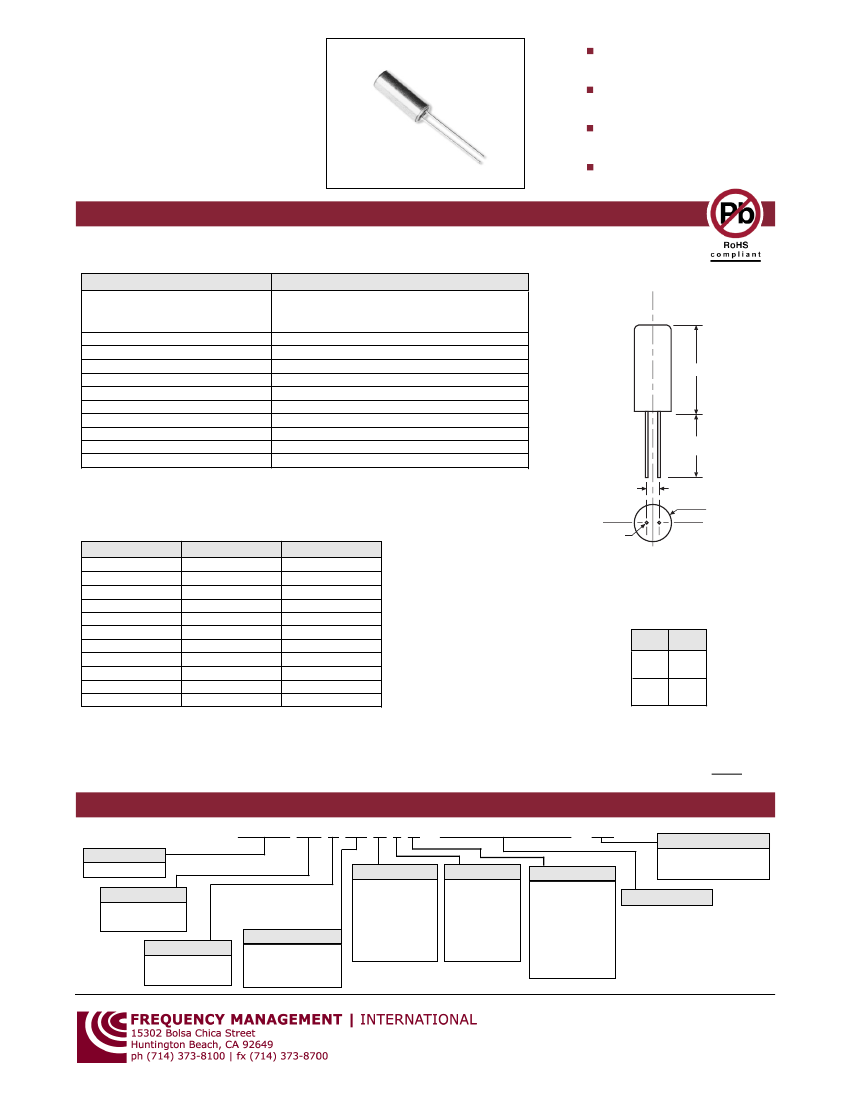

FMXMC

SERIES

High Frequency

Micro Processor Crystals

Miniature Package

Very Small Footprint

Cost Effective

High Shock Resistance

CYLINDRICAL

SPECIFICATIONS

08 - issue 2 - 071508

Parameter

Frequency Range

Specification

3.579 - 9.999 MHz Type A (See Dimension Chart)

10.0 - 30.0 MHz

Type B (See Dimension Chart)

27.0 - 70.0 MHz

Type B (See Dimension Chart)

See Operation Mode and ESR Table

10 pF - Series resonance

±10 - 50 ppm @ 25°C

±50 ppm Std. (See Temp. Tol. for Options)

0 to +70°C Std. (See Temp. Range for Options)

-55 to +125°C

See Operation Mode and ESR Table

7 pF max.

10 - 1000 µW

±5 ppm per year max.

Operation Mode

Load Capacitance (CL)

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Equivalent Series Resistance (ESR)

Parallel Capacitance (Co)

Drive Level

Aging @ 25°C

All specifications subject to change without notice.

0.394

0.04

(10.0

1.0)

0.031

0.006

(0.80

0.15)

0.122

(3.10)

DIA

MAX.

OPERATION MODE AND ESR TABLE

Frequency (MHz)

3.579 - 3.699

3.700 - 3.999

4.000 - 4.099

4.100 - 4.999

5.000 - 6.999

7.000 - 9.999

10.000 - 11.999

12.000 - 13.999

14.000 - 15.999

16.000 - 30.000

27.000 - 60.000

Mode

Fundamental

3rd Overtone

Max. ESR (Ohms)

200

180

150

120

100

0.012

0.003

(0.30

0.07)

DIA. 2X

Type

.398

(10.1)

.354

(9.0)

NOTE: Standard Specifications for product indicated in

color

Dimensions: Inches

(mm)

PART DESCRIPTION SYSTEM

FMXM CA 1 18 H J A - XXX.XXXXXXM - TR

Product Family

MicroP Crystal

Crystal Package

Cylindrical

Type A or B

Mode

1 - Fundamental

3 - 3rd Overtone

Load Cap. (CL)

18 - Standard (pF)

00 - Series

XX - Custom (pF)

Cal.

Tol. @ 25°C

±25 ppm

±30 ppm

±40 ppm

±50 ppm

±100 ppm

Custom

Temp. Tol.

G ±25 ppm

H ±30 ppm

I ±40 ppm

J ±50 ppm

K ±100 ppm

X Custom

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

J 0 to 50 °C

X Custom

Options

TR - Tape & Reel

BLANK - None Req’d.

Frequency (MHz)

1-800-800-XTAL

[9825]

www.fmi-inc.com
