TOLC-125-32-S-Q datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TOLC-125-32-S-Q

Preview

TOLC-125-32-S-Q: Descriptionconn header .05" 25x4ps gold smd; CategoryThe connector The connector; File Size563KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TOLC-125-32-S-Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TOLC-125-32-S-Q	-	-	View	Buy Now

TOLC-125-32-S-Q Overview

conn header .05" 25x4ps gold smd

TOLC-125-32-S-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.32 inch
subject depth	0.442 inch
body length	1.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	TOLC
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	30u inch
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

F-214

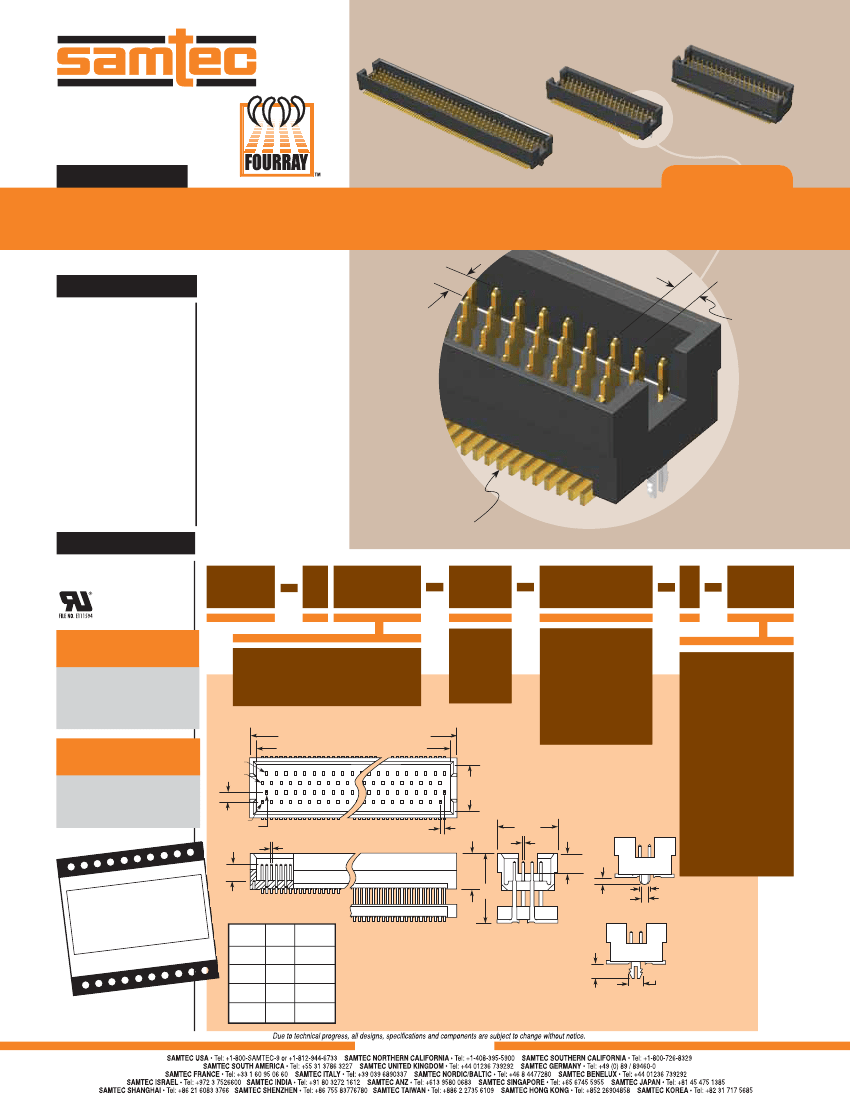

TOLC–120–12–F–Q–LC

TOLC–120–02–L–Q–LC

TOLC–140–02–F–Q–A

(1,27 mm) .050"

TOLC SERIES

QUAD ROW SMT TERMINAL

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?TOLC

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au over 50µ" (1,27 µm) Ni

Current Rating:

2.4 A per pin

(6 adjacent pins powered)

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

Mates with:

SOLC

(1,27 mm)

.050"

(1,27 mm)

.050"

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (05-30)

(0,15 mm) .006" max (35-50)

Surface

Mount

Drop-in replacement

for FOLC/MOLC when

mated with SOLC

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

TOLC

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

Q

OPTION

OTHER

SOLUTIONS

• For Micro Rugged,

see the MOLC/FOLC

pages located in the

Tiger Eye™ section.

–F

= Gold ﬂash on post,

Gold ﬂash on tail

05, 10, 15, 20, 25,

30, 35, 40, 45, 50

(Standard sizes)

No. of positions x (1,27) .050 + (2,54) .100

–A

= Alignment Pin

(Not available with -LC)

–L

= 10µ" (0,25 µm)

Gold on post,

Gold ﬂash on tail

–LC

= Locking Clip

(Not available with -A)

(Manual placement

required)

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

Contact Samtec.

No. of positions x (1,27) .050 + (0,76) .030

A1

B1

(6,86)

.270

(1,27)

.050 D1C1

TYP

(0,25) .010

–K

(8,13)

.320

(0,38)

.015

(0,635) .025 TYP

= (9,00 mm) .354" DIA

Polyimide ﬁlm

Pick & Place Pad

(0,76)

.030

(1,27)

.050

EL AV

TAPE & RE

AILABILITY

harges.

No tooling c the lesser of

er is

Minimum ordntity or 125 pieces.

a

a full reel quantity above minimum.

any qu

cture.

Order

sign, manufa

In-house de turn-around.

Quick

tions

for specifica

Call Samtecring information.

and orde

(2,54)

.100

(5,08)

.200

(2,54)

.100

–TR

= Tape & Reel

A

Style –02

LEAD

STYLE

MATED

HEIGHT

(6,35)

(5,59)

.250

.220

(8,00)

(7,24)

.315

.285

(9,25) (10,00)

.394

.364

(11,23) (12,00)

.472

.442

(0,89)

.035

–A OPTION

A

Styles –12,–22,–32

– 02

–12

–22

(1,02)

.040

(1,42)

.056

–LC OPTION

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–32

WWW.SAMTEC.COM
