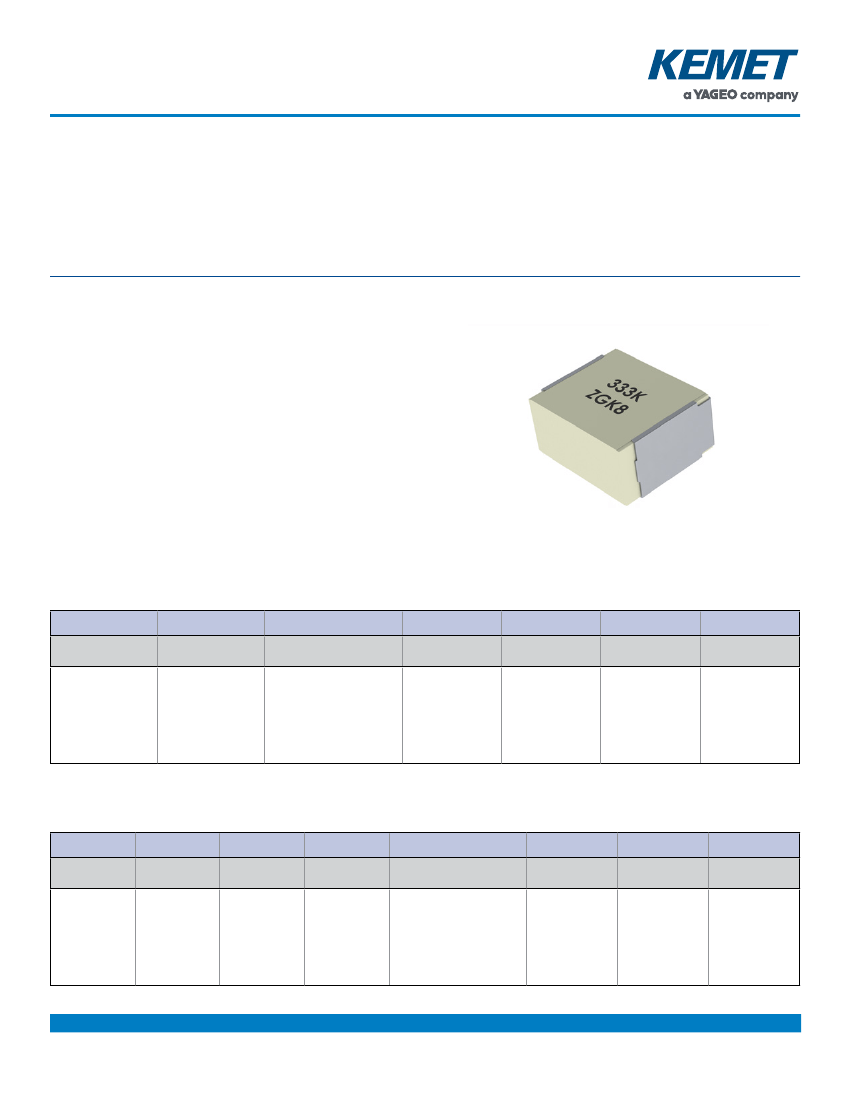

Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GMC, Encapsulated, Size 2220 – 6560, 50 – 630 VDC
Overview
Polyethylene naphthalate (PEN) film capacitor for surface
mounting is encapsulated in a self-extinguishing material,
meeting the requirements of UL 94V–0. GMC capacitors
meet the standards according to IEC 60384–23.
Applications
Typical applications include bypassing and signal coupling.
GMC is a general purpose series designed for the highest
reliability and high temperature service. Not suitable for
across-the-line application (see suppressor capacitors).
Benefits
• Rated voltage: 50 – 630 VDC
• Rated voltage: 30 – 300 VAC
• Capacitance range: 0.001 – 5.6 µF
• EIA Size: 2220 – 6560
• Capacitance tolerance: ±5%, ±10%, other tolerances on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
Customer Part Number
GMC
Series
Metallized PEN
5.7
Chip Length (mm)
5.7
7.3
10.2
12.7
16.5
102
Capacitance
Code (pF)
First two digits indicate
the two most significant
digits of the capacitance
value in picofarads. The
third digit is the number
of following zeros.
K
Capacitance
Tolerance
J = ±5%
K = ±10%
Other tolerances
on request.
50
Rated Voltage
(VDC)
50
63
100
250
400
630
J33
Size Code
See Dimension
Table
TR12
Packaging
See Ordering
Options Table
KEMET Internal Part Number
F
Capacitor Class
F = Film
115
Series
Metallized
PEN
P
Chip Size
P = 2220
S = 2824
W = 4036
Y = 5045
Z = 6560
P
Size Code
See
Dimension
Table
102
Capacitance Code (pF)
First two digits indicate
the two most significant
digits of the capacitance
value in picofarads. The
third digit is the number
of following zeros.
K
Capacitance
Tolerance
J = ±5%
K = ±10%
Other
tolerances on
request.
050
Rated Voltage
(VDC)
050 = 50
063 = 63
100 = 100
250 = 250
400 = 400
630 = 630
V
Packaging
See Ordering
Options Table
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3079_GMC • 7/1/2021
1
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GMC, Encapsulated, Size 2220 – 6560, 50 – 630 VDC
Ordering Options Table
Chip Size
(EIA)
2220
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
KEMET
Packaging
Code
Legacy
Packaging
Code
2824
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
4036
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard
Reel)
Standard Packaging Options
V
A
TR16
BULK
Y
TV24
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard
Reel)
Standard Packaging Options
V
A
TR24
BULK
Y
TV24
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard
Reel)
V
A
TR24
BULK
Y
TV44
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3079_GMC • 7/1/2021
2
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GMC, Encapsulated, Size 2220 – 6560, 50 – 630 VDC
Dimensions – Millimeters
KEMET
Size Code
PP
PU
SL
SP
ST
WP
YR
ZS
Legacy
Size Code
J33
J35
K33
K35
K37
A31
B31
C31
Chip Size
(EIA)
2220
2220
2824
2824
2824
4036
5045
6560
W
Nominal
5.0
5.0
6.0
6.0
6.0
9.1
11.5
15.0
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
3.0
4.0
3.0
3.5
4.5
5.5
6.5
7.0
T
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
5.7
5.7
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3079_GMC • 7/1/2021
3
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GMC, Encapsulated, Size 2220 – 6560, 50 – 630 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.001 – 5.6
2220 – 6560
±5%, ±10%, other tolerances on request
−55°C to +125°C
+100°C
The rated voltage should be decreased by 1.25%/°C from +100°C to +125°C and 1.5%/°C from +125°C
to 175°C.
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–19
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Pulse Rise Time
0.6%
1.0%
2.0%
C ≤ 0.33 µF
10,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C ≤ 1 µF
0.6%
1.0%
2.5%
C > 1 µF
0.6%
1.0%
C > 0.33 µF
3,000 MΩ • µF
10,000 MΩ • µF
63
40
0.001 – 4.7
100
63
0.001 – 2.2
250
160
0.001 – 0.068
400
200
0.001 – 0.33
630
300
0.022 – 0.15
The capacitors can withstand an unlimited number of pulses with a dV/dt according to Table 1. For
voltages (V) lower than the rated voltage (V
R
), the specified dV/dt can be multiplied by V
R
/V.
Capacitance vs. Temperature
14
12
10
8
4
2
0
−2
−4
−50
−25
0
25
50
75
100
125
150
175
Dissipation Factor vs. Temperature
0.02
0.016
∆C/C %
tanδ
6
0.012
0.008
0.004
0
−50
−25
0
25
50
75
100
125
150
175
Temperature °C
Temperature °C
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3079_GMC • 7/1/2021
4
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GMC, Encapsulated, Size 2220 – 6560, 50 – 630 VDC
Table 1 – Ratings & Part Number Reference
VDC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
63
VAC
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
40
Cap Value
Size Code
(µF)
(New/Legacy)
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.0
3.9
4.7
5.6
0.0010
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PP/J33
PU/J35
PU/J35
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
YR/B31
YR/B31
YR/B31
YR/B31
ZS/C31
ZS/C31
ZS/C31
SL/K33
Dimensions in mm
B
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
11.5
11.5
11.5
11.5
11.5
15.0
15.0
15.0
6.0
H
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
4.0
4.0
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
6.5
6.5
6.5
7.0
7.0
7.0
3.0
L
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
12.7
12.7
12.7
12.7
12.7
16.5
16.5
16.5
7.3
Chip
Size
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
5045
5045
5045
5045
5045
6560
6560
6560
2824
dV/dt
(V/μs)
40
40
40
40
40
40
40
40
40
40
40
40
40
40
30
30
30
30
20
20
20
20
20
20
20
20
20
20
40
40
40
40
30
30
30
30
30
30
20
20
20
20
20
10
10
10
10
10
10
10
8
8
8
8
8
5
5
5
50
New
KEMET
Part Number
F115PP102(1)050(2)
F115PP122(1)050(2)
F115PP152(1)050(2)
F115PP182(1)050(2)
F115PP222(1)050(2)
F115PP272(1)050(2)
F115PP332(1)050(2)
F115PP392(1)050(2)
F115PP472(1)050(2)
F115PP562(1)050(2)
F115PP682(1)050(2)
F115PP822(1)050(2)
F115PP103(1)050(2)
F115PP123(1)050(2)
F115PP153(1)050(2)
F115PP183(1)050(2)
F115PP223(1)050(2)
F115PP273(1)050(2)
F115PP333(1)050(2)
F115PP393(1)050(2)
F115PP473(1)050(2)
F115PP563(1)050(2)
F115PP683(1)050(2)
F115PP823(1)050(2)
F115PP104(1)050(2)
F115PP124(1)050(2)
F115PU154(1)050(2)
F115PU184(1)050(2)
F115WP223(1)050(2)
F115WP273(1)050(2)
F115WP333(1)050(2)
F115WP393(1)050(2)
F115WP473(1)050(2)
F115WP563(1)050(2)
F115WP683(1)050(2)
F115WP823(1)050(2)
F115WP104(1)050(2)
F115WP124(1)050(2)
F115WP154(1)050(2)
F115WP184(1)050(2)
F115WP224(1)050(2)
F115WP274(1)050(2)
F115WP334(1)050(2)
F115WP394(1)050(2)
F115WP474(1)050(2)
F115WP564(1)050(2)
F115WP684(1)050(2)
F115WP824(1)050(2)
F115WP105(1)050(2)
F115WP125(1)050(2)
F115YR155(1)050(2)
F115YR185(1)050(2)
F115YR225(1)050(2)
F115YR275(1)050(2)
F115YR305(1)050(2)
F115ZS395(1)050(2)
F115ZS475(1)050(2)
F115ZS565(1)050(2)
F115SL102(1)063(2)
Legacy Part
Number
GMC5.7102(1)50J33(2)
GMC5.7122(1)50J33(2)
GMC5.7152(1)50J33(2)
GMC5.7182(1)50J33(2)
GMC5.7222(1)50J33(2)
GMC5.7272(1)50J33(2)
GMC5.7332(1)50J33(2)
GMC5.7392(1)50J33(2)
GMC5.7472(1)50J33(2)
GMC5.7562(1)50J33(2)
GMC5.7682(1)50J33(2)
GMC5.7822(1)50J33(2)
GMC5.7103(1)50J33(2)
GMC5.7123(1)50J33(2)
GMC5.7153(1)50J33(2)
GMC5.7183(1)50J33(2)
GMC5.7223(1)50J33(2)
GMC5.7273(1)50J33(2)
GMC5.7333(1)50J33(2)
GMC5.7393(1)50J33(2)
GMC5.7473(1)50J33(2)
GMC5.7563(1)50J33(2)
GMC5.7683(1)50J33(2)
GMC5.7823(1)50J33(2)
GMC5.7104(1)50J33(2)
GMC5.7124(1)50J33(2)
GMC5.7154(1)50J35(2)
GMC5.7184(1)50J35(2)
GMC10.2223(1)50A31(2)
GMC10.2273(1)50A31(2)
GMC10.2333(1)50A31(2)
GMC10.2393(1)50A31(2)
GMC10.2473(1)50A31(2)
GMC10.2563(1)50A31(2)
GMC10.2683(1)50A31(2)
GMC10.2823(1)50A31(2)
GMC10.2104(1)50A31(2)
GMC10.2124(1)50A31(2)
GMC10.2154(1)50A31(2)
GMC10.2184(1)50A31(2)
GMC10.2224(1)50A31(2)
GMC10.2274(1)50A31(2)
GMC10.2334(1)50A31(2)
GMC10.2394(1)50A31(2)
GMC10.2474(1)50A31(2)
GMC10.2564(1)50A31(2)
GMC10.2684(1)50A31(2)
GMC10.2824(1)50A31(2)
GMC10.2105(1)50A31(2)
GMC10.2125(1)50A31(2)
GMC12.7155(1)50B31(2)
GMC12.7185(1)50B31(2)
GMC12.7225(1)50B31(2)
GMC12.7275(1)50B31(2)
GMC12.7305(1)50B31(2)
GMC16.5395(1)50C31(2)
GMC16.5475(1)50C31(2)
GMC16.5565(1)50C31(2)
GMC7.3102(1)63K33(2)
VDC
VAC
Capacitance
Value (µF)
Size Code
(New/Legacy)
B (mm)
H
(mm)
L (mm)
Chip Size
dV/dt
(V/μs)
New KEMET
Part Number
Legacy Part Number
(1) J = ±5%, K = ±10%, other tolerances on request.
(2) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3079_GMC • 7/1/2021
5
京公网安备 11010802033920号
EEWORLD
