MODEL CPNL - ETHERNET AND USB PANEL-MOUNT CONNECTORS
DUST- AND WATER-PROOF TO IP68 WITH SEALING CAP
ATTACHED
CAT 5E COMPLIANT ETHERNET CONNECTION
ETHERNET DATA RATE UP TO 100MHZ
USB VERSION 2.0 PERFORMANCE
USB HOT PLUGGABLE, STANDARD 4 POLE INTERFACE
Version 1: A type USB front of panel, standard B type at rear
Version 2: B type USB front of panel, standard A type at rear
DESCRIPTION
Ethernet (RJ-45) and USB panel-mount connectors are available for use in
those installations where access to HMI, Data Station Plus or Modular
Controller modules is awkward, or where easy access to Ethernet and/or USB
connections is simply desirable. These connectors are supplied with an o-ring
sealed cap that maintains their IP68 dust- and water-proof rating. The screw cap
is easily removed for quick access to the Ethernet and USB connections. All
connectors are provided with panel sealing gasket and o-ring sealed screw cap.
Standard patch cables are used to connect the device to the rear of the panel-
mount connector.

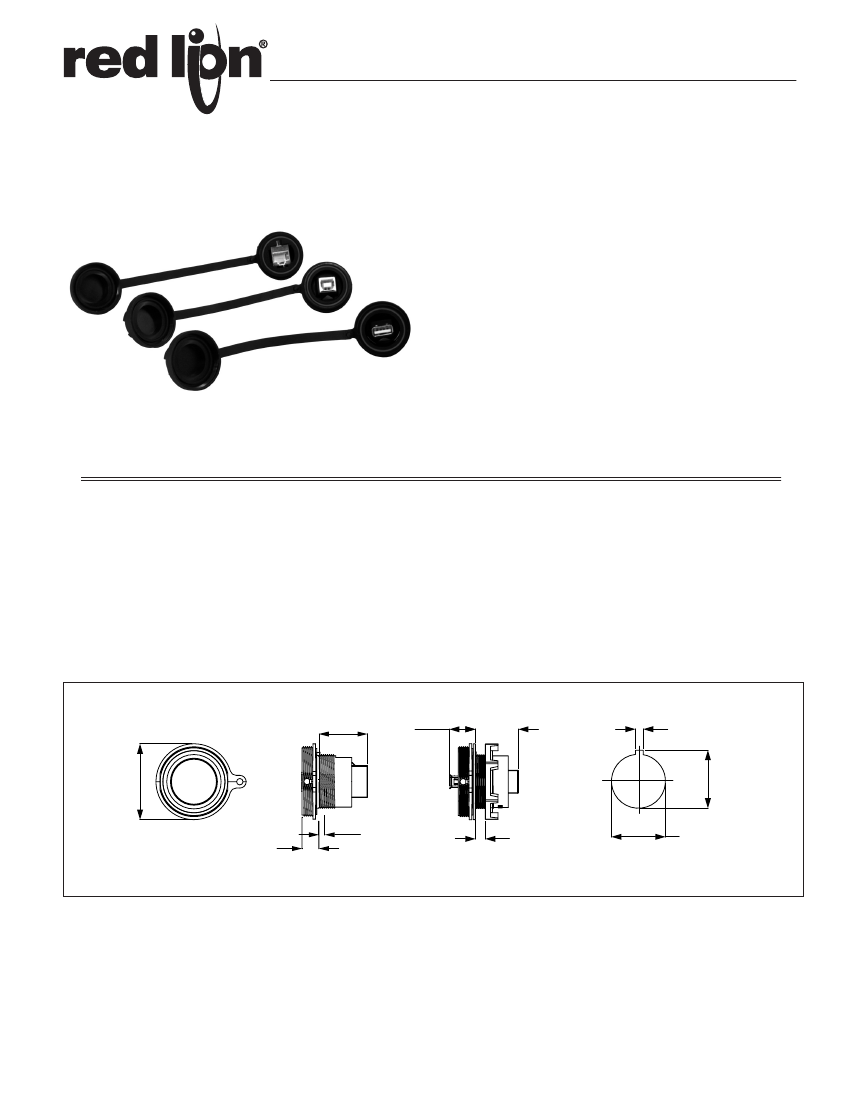

DIMENSIONS In inches (mm)
0.96
(24.5)
0.51
(12.9)
0.85
(21.6)
0.13 (3.18)
0.12 (3.05)
1.14
(28.83)
1.13
(28.7)
Ø1.5
(Ø38.1)
0.33
(8.45)
0.2 (5.2)
Max Panel
0.03 (0.8)
Min Panel
0.2 (5.2)
Max Panel
0.03 (0.8)
Min Panel
Ø 1.09 (27.7)
Ø 1.07 (27.18)
ETHERNET
USB
1

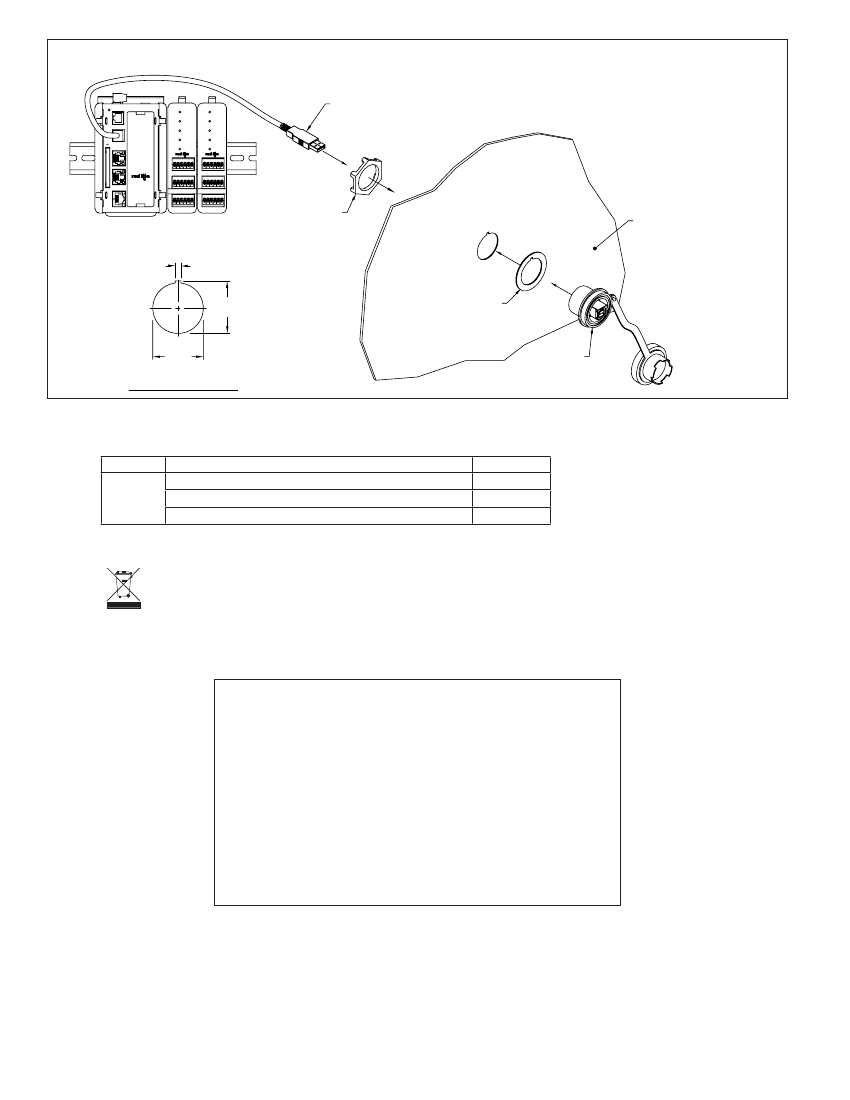

APPLICATION EXAMPLE
CSPID1
CSPID1
RS232/PG
STS
STS
OP1
STS
OP1
OP2
OP3
ALM
CABLE CONNECTION
(Customer Supplied)
USB/PG
OP2
EXPANSION
PORT
CF
OP3
ALM
RS485
RS232
13
13
ETHERNET
7
7
1
1
RETAINING NUT
FRONT OF CUSTOMER'S PANEL
0.125
0.120
1.135
1.130
SEALING WASHER
1.090
1.070
PANEL MOUNT
CONNECTOR
PANEL CUTOUT DETAIL
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
PART NUMBER
RJ-45 to RJ-45 Panel-mount Connector
CPNL
USB Type A Front to USB Type B Rear Panel-mount Connector *
USB Type B Front to USB Type A Rear Panel-mount Connector **
* Use this connector to remote mount the device's USB host ports.
** Use this connector to remote mount the device's programming port.
CPNLRJ45
CPNLUSBA
CPNLUSBB
Do not dispose of unit in trash - Recycle
