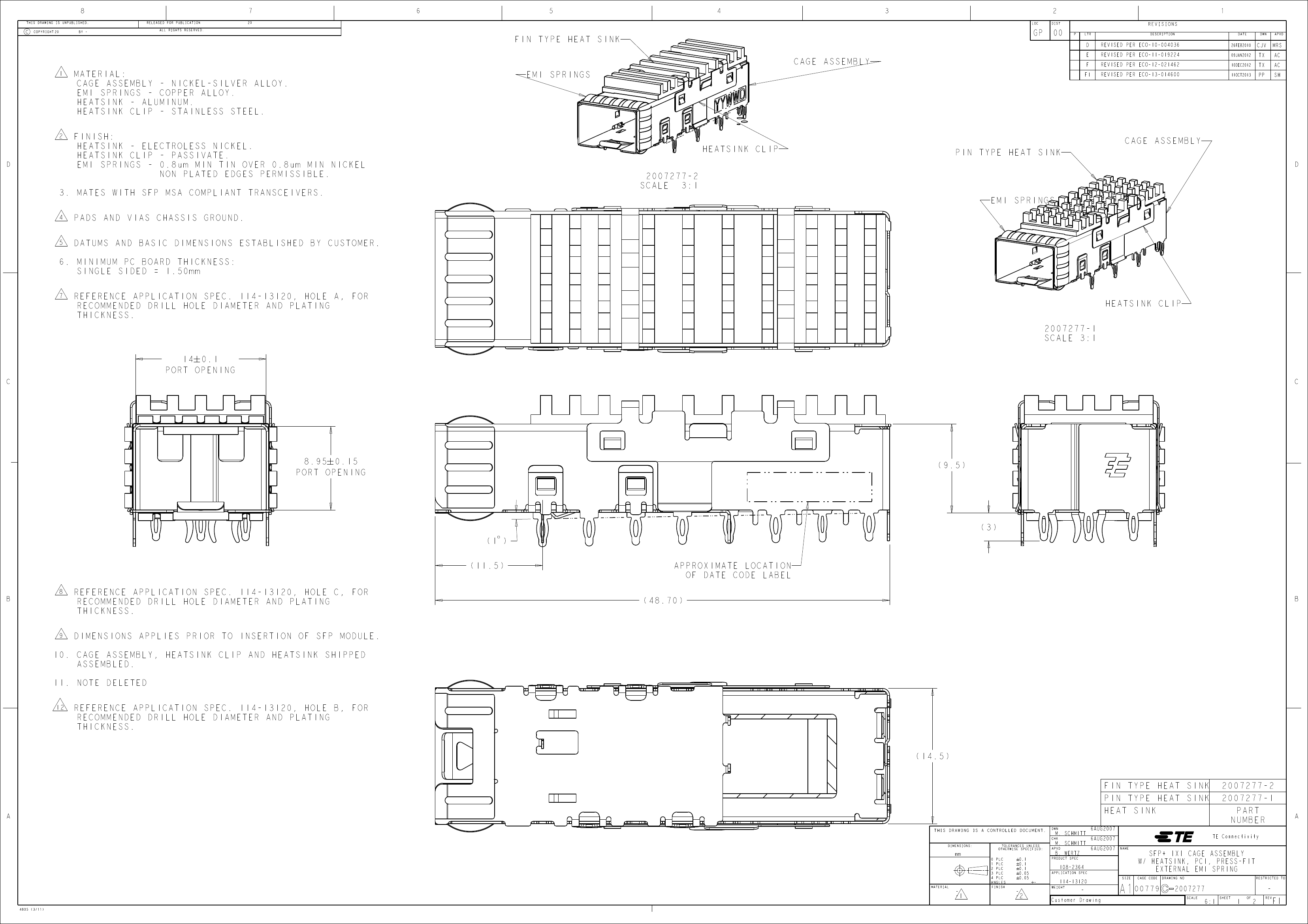

FIN TYPE HEAT SINK
CAGE ASSEMBLY
GP
00
D
E
F
F1
REVISED PER ECO-10-004036
REVISED PER ECO-11-019224
REVISED PER ECO-12-021462
REVISED PER ECO-13-014600
26FEB2010
09JAN2012
10DEC2012
11OCT2013
CJV
TX
TX
PP
MRS
AC
AC
SH
1
MATERIAL:
CAGE ASSEMBLY - NICKEL-SILVER ALLOY.
EMI SPRINGS - COPPER ALLOY.
HEATSINK - ALUMINUM.
HEATSINK CLIP - STAINLESS STEEL.
FINISH:
HEATSINK - ELECTROLESS NICKEL.
HEATSINK CLIP - PASSIVATE.
EMI SPRINGS - 0.8um MIN TIN OVER 0.8um MIN NICKEL
NON PLATED EDGES PERMISSIBLE.
EMI SPRINGS
2
HEATSINK CLIP
2007277-2
SCALE
3:1
D
PIN TYPE HEAT SINK
CAGE ASSEMBLY
D
3. MATES WITH SFP MSA COMPLIANT TRANSCEIVERS.
4
5
EMI SPRINGS
PADS AND VIAS CHASSIS GROUND.
DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.
6. MINIMUM PC BOARD THICKNESS:
SINGLE SIDED = 1.50mm
7
REFERENCE APPLICATION SPEC. 114-13120, HOLE A, FOR
RECOMMENDED DRILL HOLE DIAMETER AND PLATING
THICKNESS.
HEATSINK CLIP
2007277-1
SCALE 3:1
C
14 0.1
PORT OPENING
C
8.95 # 0.15
PORT OPENING
( 9.5 )
(1 $
)
( 11.5 )
8
(3)
APPROXIMATE LOCATION
OF DATE CODE LABEL
(48.70)
B
B
REFERENCE APPLICATION SPEC. 114-13120, HOLE C, FOR
RECOMMENDED DRILL HOLE DIAMETER AND PLATING
THICKNESS.
DIMENSIONS APPLIES PRIOR TO INSERTION OF SFP MODULE.
9
10. CAGE ASSEMBLY, HEATSINK CLIP AND HEATSINK SHIPPED
ASSEMBLED.
11. NOTE DELETED
12
REFERENCE APPLICATION SPEC. 114-13120, HOLE B, FOR
RECOMMENDED DRILL HOLE DIAMETER AND PLATING
THICKNESS.
( 14.5 )
FIN TYPE HEAT SINK
PIN TYPE HEAT SINK
2007277-2
PART
NUMBER
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
HEAT SINK
M. SCHMITT
M. SCHMITT
B. WERTZ
108-2364
6AUG2007
6AUG2007
6AUG2007
NAME
2007277-1
A
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.1
0.1
0.1
0.05
0.05
PRODUCT SPEC
APPLICATION SPEC
-
-
-
1
-
-
2
WEIGHT
114-13120
-
Customer Drawing
A1
00779
SIZE
CAGE CODE
SFP+ 1X1 CAGE ASSEMBLY
W/ HEATSINK, PCI, PRESS-FIT
EXTERNAL EMI SPRING
DRAWING NO
RESTRICTED TO
2007277
SCALE
4805 (3/11)
6:1
SHEET
1
OF
2
REV
-
F1
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
GP
4X R 0.3 MAX
EACH CUTOUT
00
-
SEE SHEET 1
-
-
-
16.25
MIN
( 45.4 )
10.4
D
13.5 MAX
9
( 10.8 )
20X
20X
3.5 0.3
BACK OF BEZEL TO
PC BOARD CUTOUT
CAGE ASSEMBLY MOUNTED ON RECOMMENDED
PC BOARD SHOWN THRU RECOMMENDED BEZEL
SCALE 4:1
11.93
34.5
9.6
0.5
2
0.05
3.2
7.1
5
PIN #20
D
(1 $
)
15.45
RECOMMENDED BEZEL CUTOUT
SCALE
4:1
0.4
TOP OF PC BOARD
TO INSIDE OF BEZEL
1.02 0.3
BACK OF BEZEL TO
FRONT OF PC BOARD
X
0.03
PIN #1
3.33
8.13
10.93
2.8
10.53
2.8
Y
Y.YY
THIS AREA DENOTES
COMPONENT KEEP-OUT
(TRACES ALLOWED)
3X
10
7.2
2.5
(
0.85 )
4
8
5
C
5
18X
0.8
PIN #11
C
PLATING REQUIRED
PIN #10
CROSS-HATCHED AREA
DENOTES COMPONENT AND
TRACE KEEP-OUT
(EXCEPT CHASSIS GROUND)
B
2.5
(
1.05 )
4
7
2X
n 1.55
0.05
DETAIL
SCALE
0.9
A
PLATING REQUIRED
8:1
A
5.68
8.58
16.5
MIN
CUTOUT
16.25
11.08
14.25
4.8
9.6
11.93
B
B
4
11X
2
9X (
9X ( n 1.05 )
4
7
0.95 )
12
PLATING REQUIRED
SEE DETAIL
PLATING REQUIRED
A
11X
2.48
2
4
5
3X
41.3
42.3
10
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
26.8
A
M. SCHMITT
M. SCHMITT
B. WERTZ
108-2364
6AUG2007
6AUG2007
6AUG2007
NAME
TE Connectivity
mm
APVD

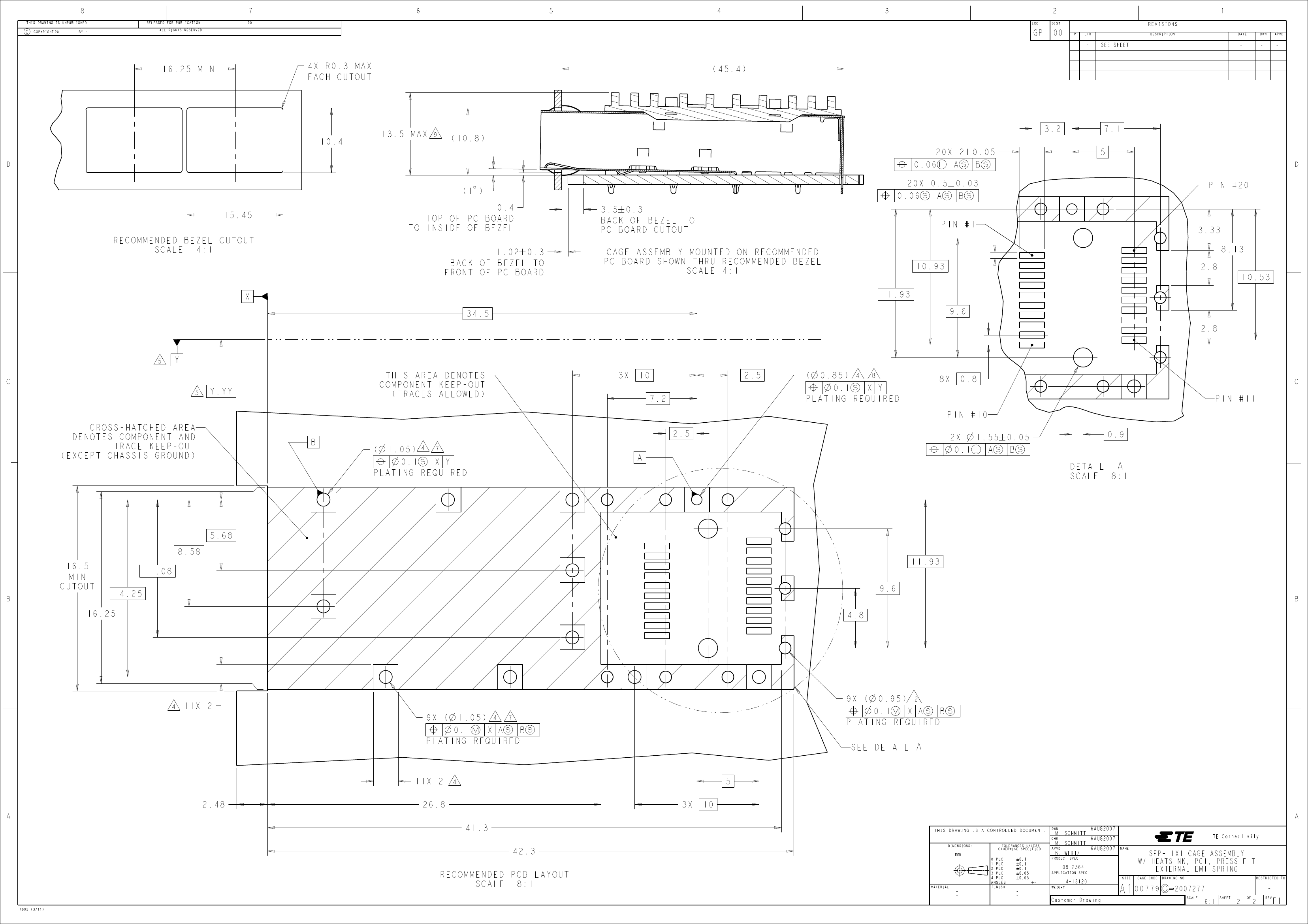

RECOMMENDED PCB LAYOUT
SCALE
8:1
4805 (3/11)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.1
0.1
0.1
0.05
0.05
PRODUCT SPEC
APPLICATION SPEC
-
-
-
-
-
WEIGHT
114-13120
-
Customer Drawing
A1
00779
SIZE
CAGE CODE
SFP+ 1X1 CAGE ASSEMBLY
W/ HEATSINK, PCI, PRESS-FIT
EXTERNAL EMI SPRING
DRAWING NO
RESTRICTED TO
2007277
SCALE
6:1
SHEET
2
OF
2
REV
-
F1
