Part Number

Search

5024304010

Description
conn plug 40pos vert dual smd
CategoryThe connector
File Size443KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

5024304010 Overview

conn plug 40pos vert dual smd

5024304010 Parametric

Parameter NameAttribute value
Datasheets
502430-4010
502426,30 Spec Shee
Product Photos
502430-4010-C
Video File
Microminiature Connectors
Mezzanine SlimStack

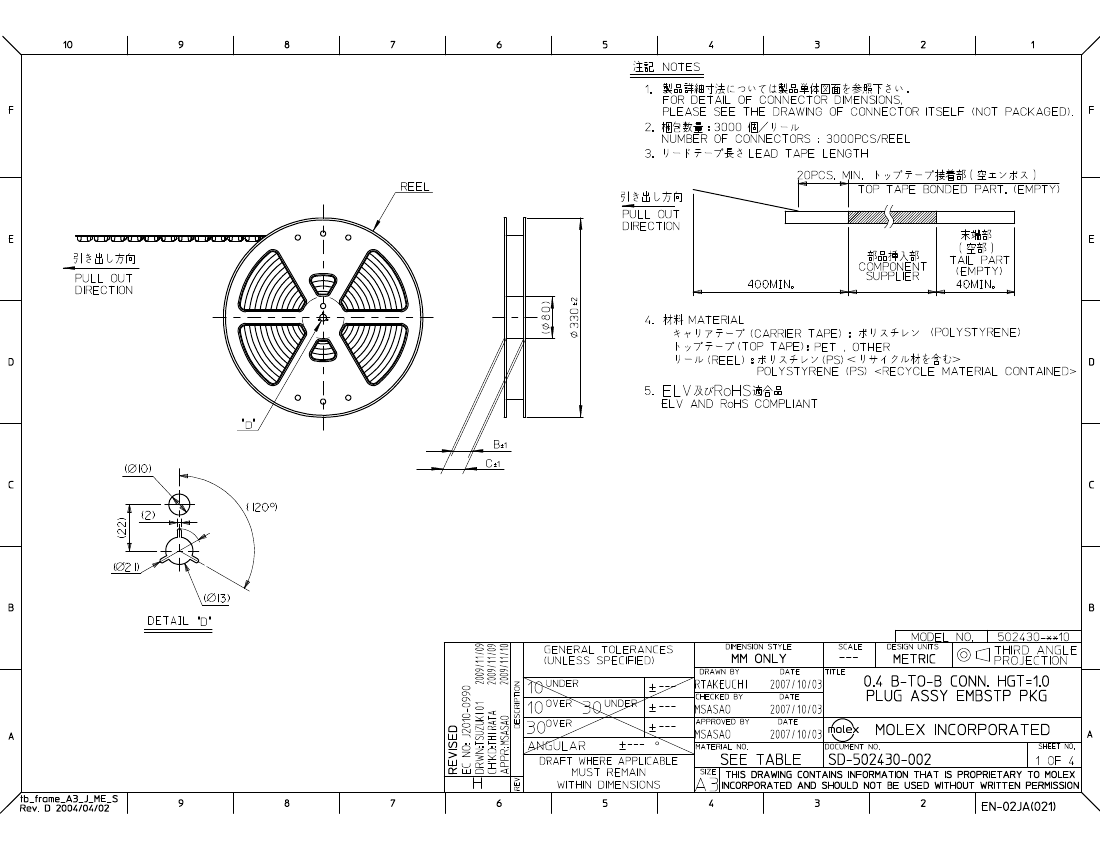

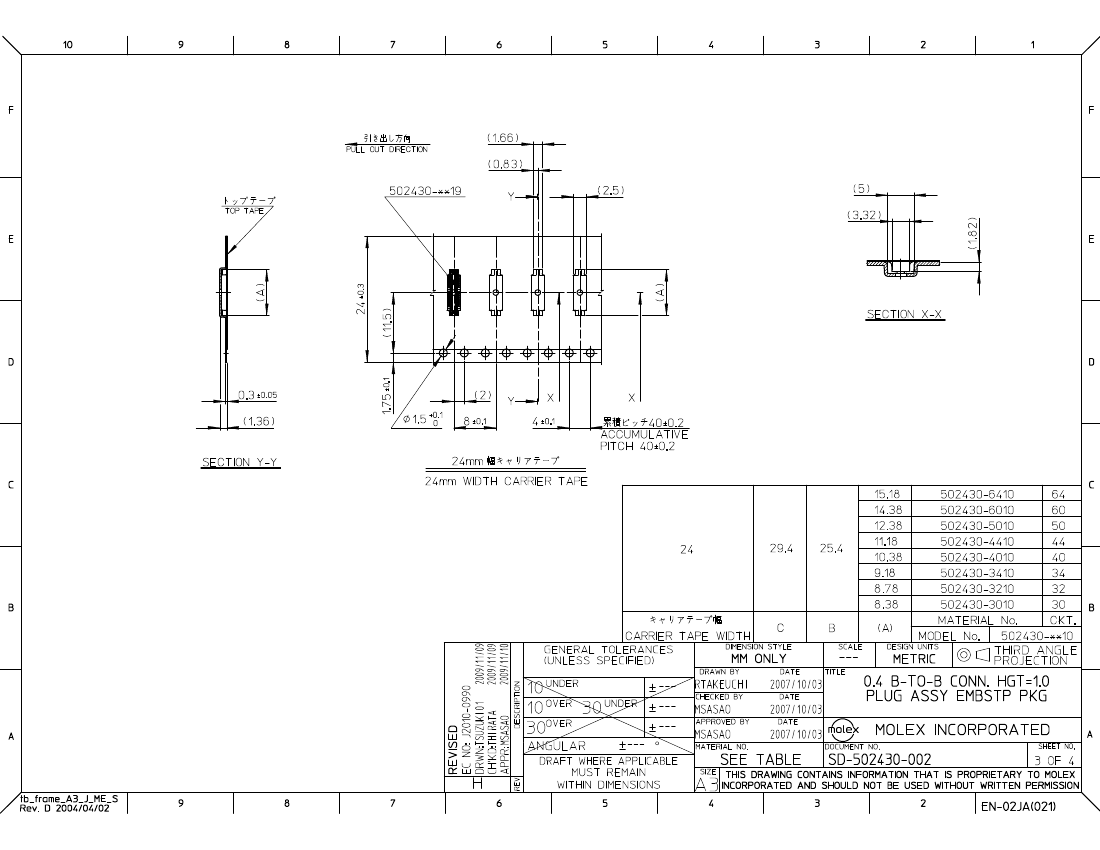

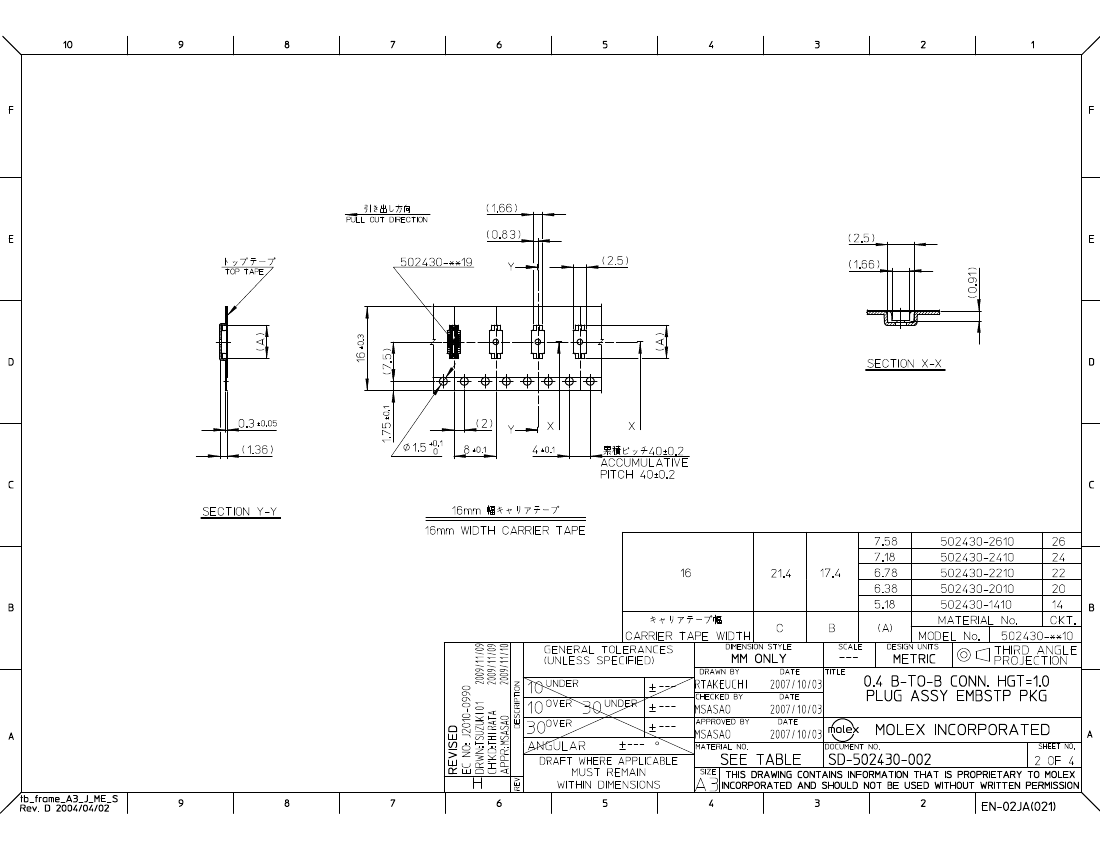

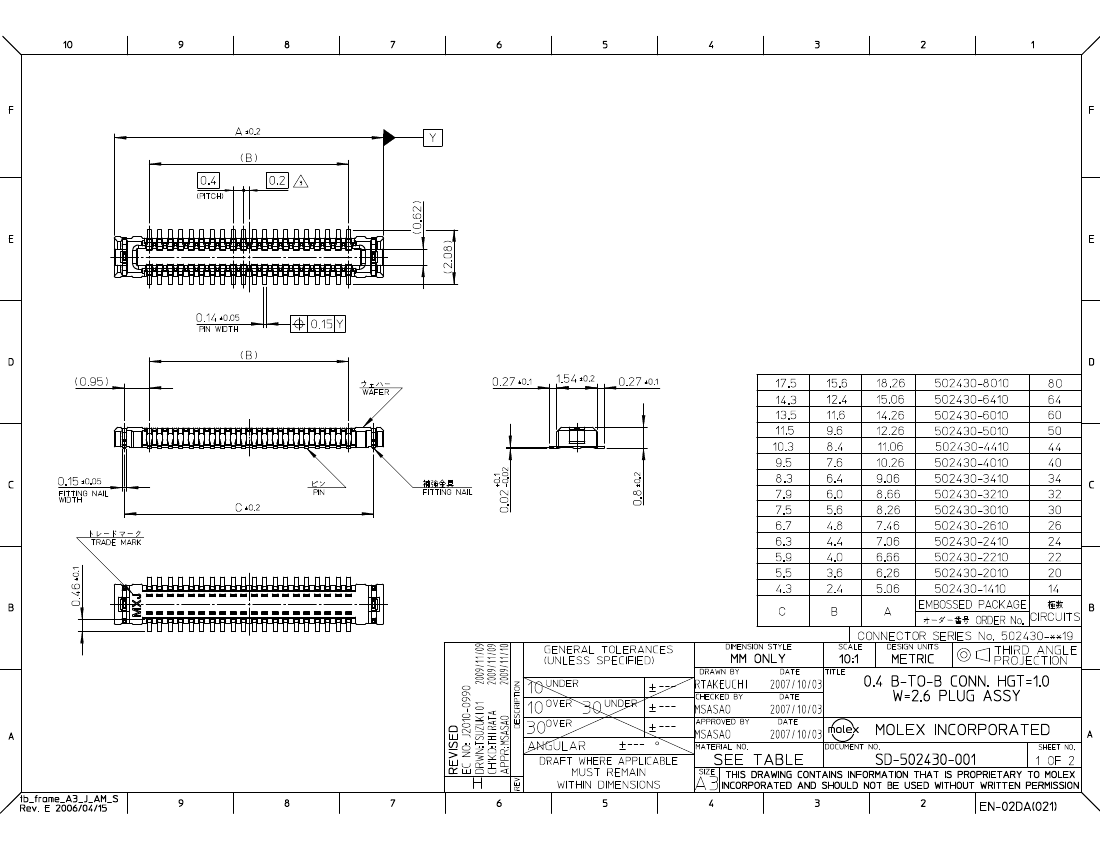

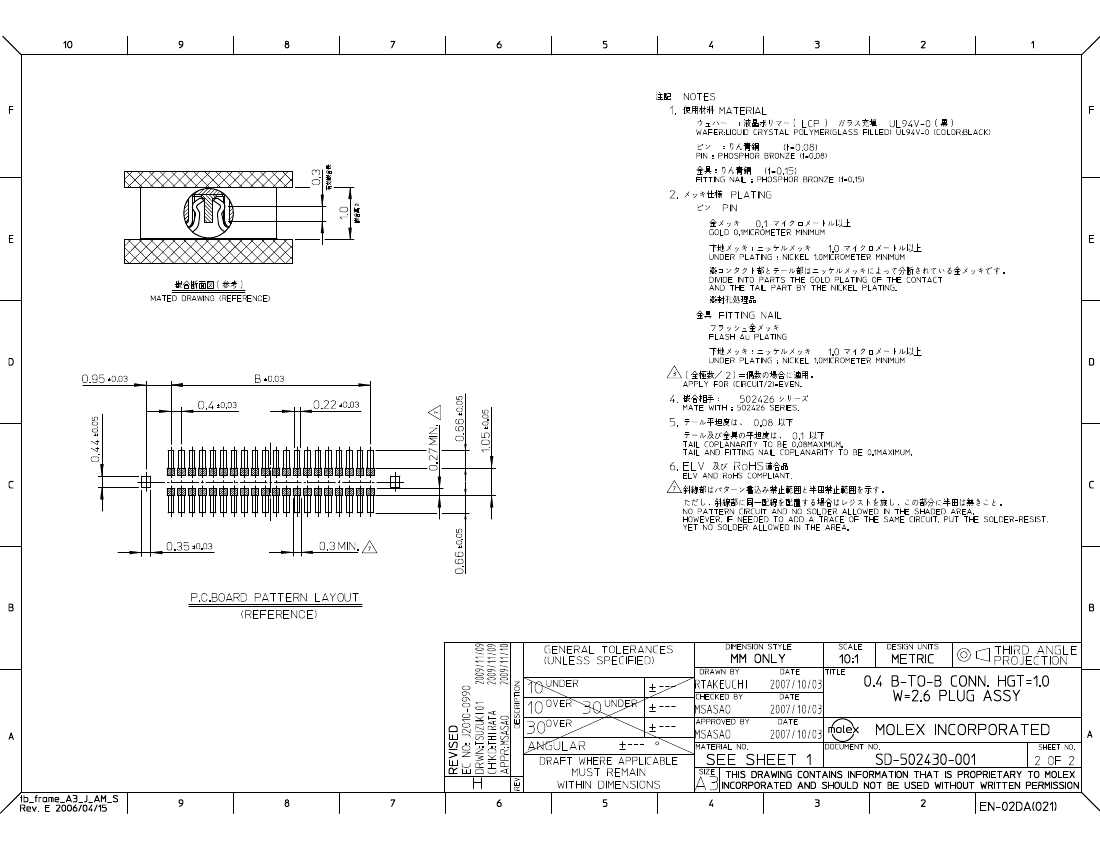

Catalog Drawings
502430 Series 40 Positi
3D Model
502430-4010.s
Standard Package3,000
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
PackagingTape & Reel (TR)
Connector TypePlug, Outer Shroud Contacts
Number of Positions40
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mou
FeaturesSolder Retenti
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights1mm
Height Above Board0.031" (0.80mm)
Mating ProductsWM24073DKR-ND - CONN RCPT 40POS .4MM VERT SMDWM24073TR-ND - CONN RCPT 40POS .4MM VERT SMD5024264080-ND - CONN B/B 0.4MM RCPT 40CKTWM24073CT-ND - CONN RCPT 40POS VERT DUAL SMD
Other Names0502430-40100502430-4010-C0502430401005024304010-C502430-4010502430-4010-C5024304010-CWM24081TR

5024304010 Related Products

5024304010 5024305010 5024301410 5024302210 5024303010
Description conn plug 40pos vert dual smd conn plug 50pos vert dual smd conn B/B 0.4mm plug 14ckt conn 0.4 B/B plug 22ckt conn 0.4 B/B plug 30ckt
Is it lead-free? - Lead free Lead free - Lead free
Is it Rohs certified? - conform to conform to - conform to
Reach Compliance Code - compli compli - compli
Factory Lead Time - 10 weeks 16 weeks - 10 weeks
Other features - SLIMSTACK, LOW PROFILE SLIMSTACK, LOW PROFILE - SLIMSTACK, LOW PROFILE
Board mount options - FITTING NAIL FITTING NAIL - FITTING NAIL
body width - 0.081 inch 0.081 inch - 0.081 inch
subject depth - 0.031 inch 0.031 inch - 0.031 inch
body length - 0.483 inch 0.2 inch - 0.325 inch
Body/casing type - PLUG PLUG - PLUG
Connector type - BOARD CONNECTOR BOARD CONNECTOR - BOARD CONNECTOR
Contact to complete cooperation - GOLD GOLD - GOLD
Contact completed and terminated - GOLD GOLD - GOLD
Contact point gender - MALE MALE - MALE
Contact material - PHOSPHOR BRONZE PHOSPHOR BRONZE - PHOSPHOR BRONZE
contact mode - RECTANGULAR RECTANGULAR - RECTANGULAR
Contact resistance - 80 mΩ 80 mΩ - 80 mΩ
Contact style - BELLOWED TYPE BELLOWED TYPE - BELLOWED TYPE
DIN compliance - NO NO - NO
Dielectric withstand voltage - 250VAC V 250VAC V - 250VAC V
Durability - 30 Cycles 30 Cycles - 30 Cycles
Filter function - NO NO - NO
IEC compliance - NO NO - NO
Insulation resistance - 100000000 Ω 100000000 Ω - 100000000 Ω
Insulator color - BLACK BLACK - BLACK
insulator material - GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER - GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code - e4 e4 - e4
MIL compliance - NO NO - NO
Plug contact pitch - 0.016 inch 0.016 inch - 0.016 inch
Plug information - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE - MULTIPLE MATING PARTS AVAILABLE
Mixed contacts - NO NO - NO
Installation option 1 - LOCKING LOCKING - LOCKING
Installation method - STRAIGHT STRAIGHT - STRAIGHT
Installation type - BOARD BOARD - BOARD
Number of connectors - ONE ONE - ONE
PCB row number - 2 2 - 2
Number of rows loaded - 2 2 - 2
Maximum operating temperature - 85 °C 85 °C - 85 °C
Minimum operating temperature - -20 °C -20 °C - -20 °C
Options - GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE
PCB contact pattern - RECTANGULAR RECTANGULAR - RECTANGULAR
PCB contact row spacing - 1.7018 mm 1.7018 mm - 1.7018 mm
Plating thickness - 8u inch 8u inch - 8u inch
Rated current (signal) - 0.3 A 0.3 A - 0.3 A
Guideline - UL UL - UL
reliability - COMMERCIAL COMMERCIAL - COMMERCIAL
Terminal pitch - 0.4 mm 0.4 mm - 0.4 mm
Termination type - SURFACE MOUNT SURFACE MOUNT - SURFACE MOUNT
Total number of contacts - 50 14 - 30
UL Flammability Code - 94V-0 94V-0 - 94V-0
Base Number Matches - 1 1 - 1
