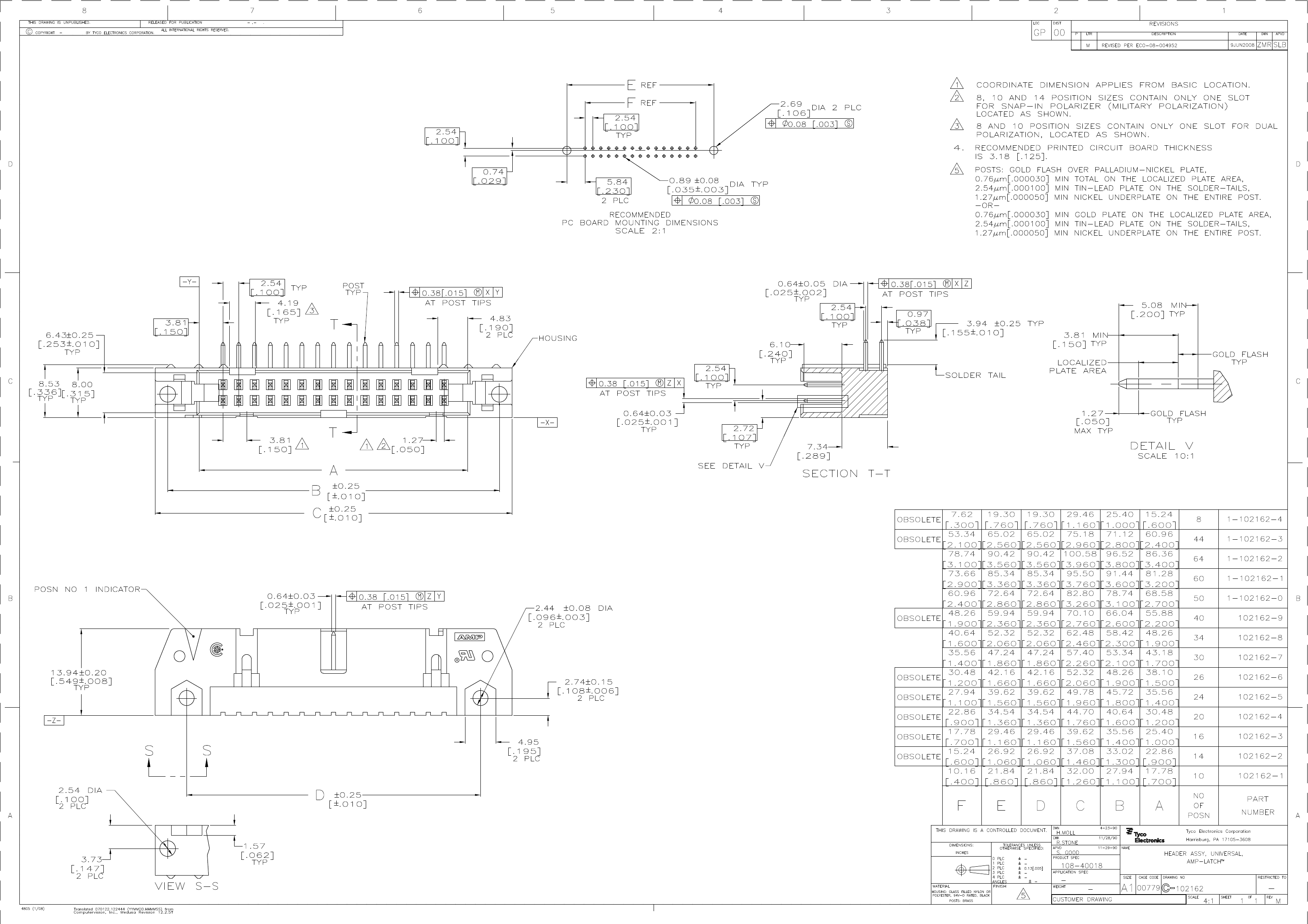

1-102162-1: Description060 UNIV HDR RA 4S 30DP STD; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-102162-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-102162-1	-	-	View	Buy Now

1-102162-1 Overview

060 UNIV HDR RA 4S 30DP STD

1-102162-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
Is Samacsys	N
Other features	POLARIZED
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	3.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1-102162-1 Related Products

	1-102162-1	VCC4-A2C-01M5440000	1-102162-2
Description	060 UNIV HDR RA 4S 30DP STD	CMOS Output Clock Oscillator, 1.544MHz Nom	064 UNIV HDR RA 4S 30DP STD
Is it Rohs certified?	incompatible	conform to	incompatible
Reach Compliance Code	not_compliant	compliant	not_compliant
JESD-609 code	e0	e4	e0
Maximum operating temperature	105 °C	85 °C	105 °C
Minimum operating temperature	-65 °C	-40 °C	-65 °C
Brand Name	AMP	-	AMP
Is it lead-free?	Contains lead	-	Contains lead
Maker	TE Connectivity	-	TE Connectivity
ECCN code	EAR99	-	EAR99
Factory Lead Time	24 weeks	-	21 weeks
Is Samacsys	N	-	N
Other features	POLARIZED	-	POLARIZED
Board mount options	HOLE .099-.111	-	HOLE .099-.111
body width	0.336 inch	-	0.336 inch
subject depth	0.549 inch	-	0.549 inch
body length	3.76 inch	-	3.96 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE	-	MALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT
DIN compliance	NO	-	NO
Dielectric withstand voltage	1000VAC V	-	1000VAC V
Filter function	NO	-	NO
IEC compliance	NO	-	NO
Insulation resistance	1000000000 Ω	-	1000000000 Ω
Insulator color	BLACK	-	BLACK
insulator material	THERMOPLASTIC	-	THERMOPLASTIC
MIL compliance	NO	-	NO
Plug contact pitch	0.1 inch	-	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	1-487223-6
Mixed contacts	NO	-	NO
Installation option 1	LOCKING	-	LOCKING
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	2	-	2
Number of rows loaded	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	2.54 mm	-	2.54 mm
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING
Rated current (signal)	1 A	-	1 A
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal length	0.155 inch	-	0.155 inch
Terminal pitch	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	60	-	64
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
