Datasheet> All Categories > The connector> The connector> 204502-1

Preview

204502-1: DescriptionRECEPT ASSY,26 POSN,AMPLIMITE; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

204502-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	204502-1	-	-	View	Buy Now

204502-1 Overview

RECEPT ASSY,26 POSN,AMPLIMITE

204502-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Objectid	1887516985
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	6 days
Samacsys Description	Body Features: Front Shell Plating Material Cadmium \| Rear Shell Plating Material Cadmium \| Mating Retention Feature Material Stainless Steel \| Front Shell Material Steel \| Rear Shell Material Steel \| Configuration Features: Number of Positions 26 \| Power/Signal/Coax Combination No \| Contact Features: Contact Current Rating (Max) 5 AMP \| Contact Size Size 22 \| Contact Type Socket \| Housing Features: Centerline (Pitch) 2.29 MM \| Centerline (Pitch) .09 INCH \| Mechanical Attachment: Mounting Hole Diameter .12
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 09:25:58
YTEOL	6.38
Other features	STANDARD: MIL-DTL-24308, AMPLIMITE
body width	0.494 inch
subject depth	0.405 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT APPLICABLE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	DIALLYL PHTHALATE/POLYPHENYLENE SULFIDE
MIL compliance	NO
Power Connector Ratings	5A
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of ports	1
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	CADMIUM
Shell material	STEEL
Housing size	2/A
Terminal pitch	2.29 mm
Termination type	CRIMP
Total number of contacts	26

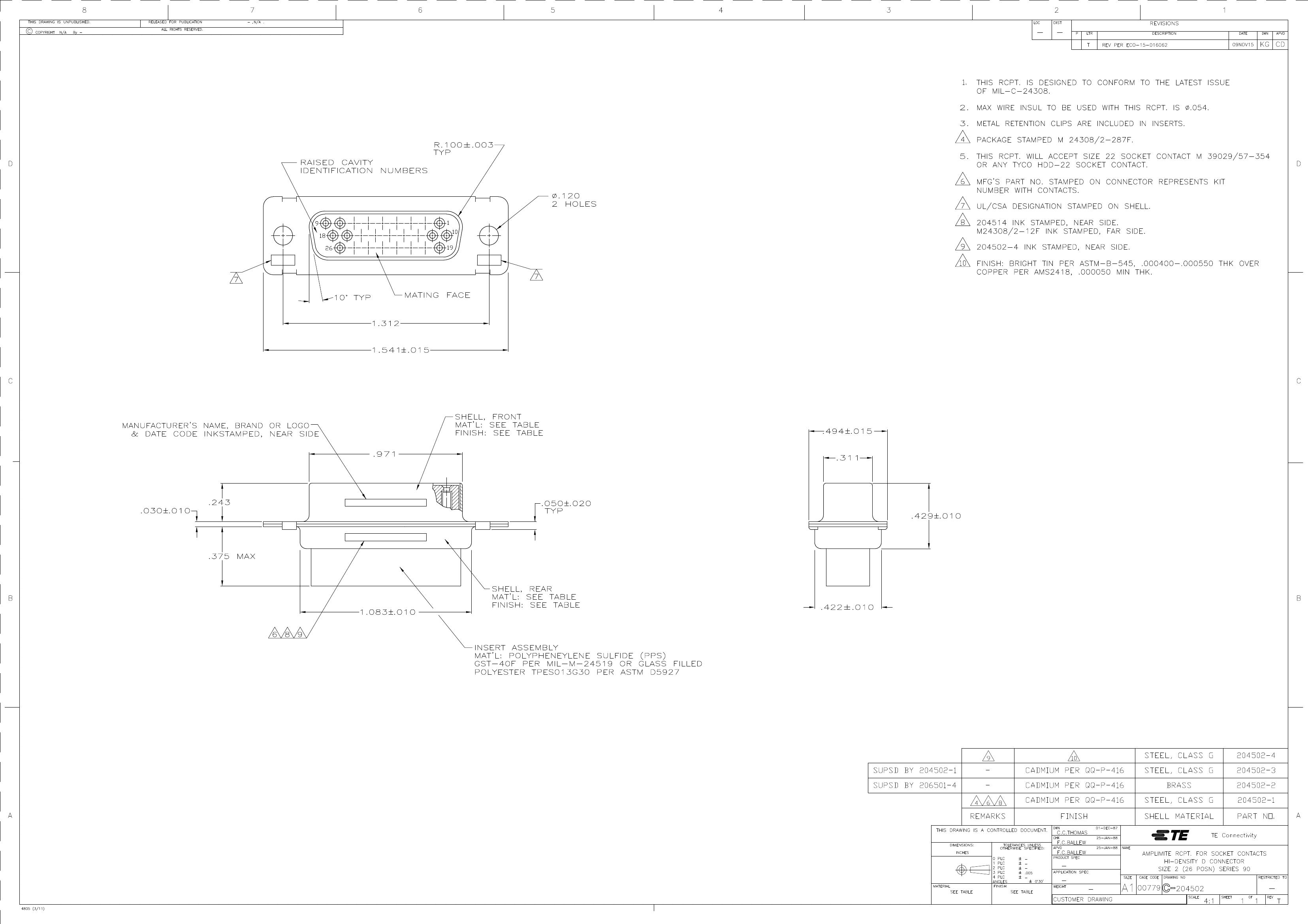

204502-1 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

204502-1 Related Products

	204502-1	204502-4
Description	RECEPT ASSY,26 POSN,AMPLIMITE	RECEPT ASSY,26 POSN,AMPLIMITE
Brand Name	AMP	AMP
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	not_compliant	compli
ECCN code	EAR99	EAR99
Factory Lead Time	6 days	7 weeks 2 days
Other features	STANDARD: MIL-DTL-24308, AMPLIMITE	AMPLIMITE, STANDARD: MIL-C-24308
body width	0.494 inch	0.494 inch
subject depth	0.405 inch	0.405 inch
body length	1.541 inch	1.541 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT APPLICABLE	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
empty shell	YES	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	DIALLYL PHTHALATE/POLYPHENYLENE SULFIDE	DIALLYL PHTHALATE/POLYPHENYLENE SULFIDE
MIL compliance	NO	YES
Mixed contacts	NO	NO
Installation option 1	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING
Installation type	CABLE AND PANEL	CABLE
Number of rows loaded	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL, CSA	UL, CSA
Shell surface	CADMIUM	TIN
Shell material	STEEL	STEEL
Housing size	2/A	2/A
Termination type	CRIMP	CRIMP
Total number of contacts	26	26
