Cinch Connectors.
Providing a broad range
of interconnect solutions the world over.
In operation since 1917, Cinch Connectors, a Bel Fuse Company, is a multi-national
manufacturer of a broad range of interconnect products. Cinch offers various technologies and
expertise which enable us to address our customer’s specific requirements.
Cinch supplies reliable, high quality custom and standard products for use in a variety of
industries including: Transportation, Military/Aerospace, and High End Computer as well as
other commercial markets.
Cinch’s transportation group offers rugged interconnects that function in extreme
environmental conditions commonly found on On/Off Highway, Agriculture and Industrial
vehicles and equipment.
We strive to exceed our customer’s expectations, and to continually provide innovative
solutions to the rapidly changing needs of the markets and customers we serve.
2
ModICE
TM
Enclosures
SHS Headers
SHS Harness Connectors
Custom Transportation Products
Other Cinch Products
Contact
5
11
15
19
20
23
3
ModICE
TM
Modular Connector Enclosures
ModICE
TM
is a complete line of connector enclosures that offers sealed packaging
solutions for rugged electronic control modules. The Cinch 1.5mm SHS system is the
base interconnect technology.
The ModICE
TM
Advantage:
•
•
•
•
3 distinct enclosure sizes (ME, SE, LE)
Multiple header configurations (18, 30, 48 and 60 I/O)
Blank headers available for specific customer applications
Available Options:
•
Integrated ferrite filtering
•
Integrated heat sink
•
Vented enclosures
Simple module assembly with snap-in header/PCB
•

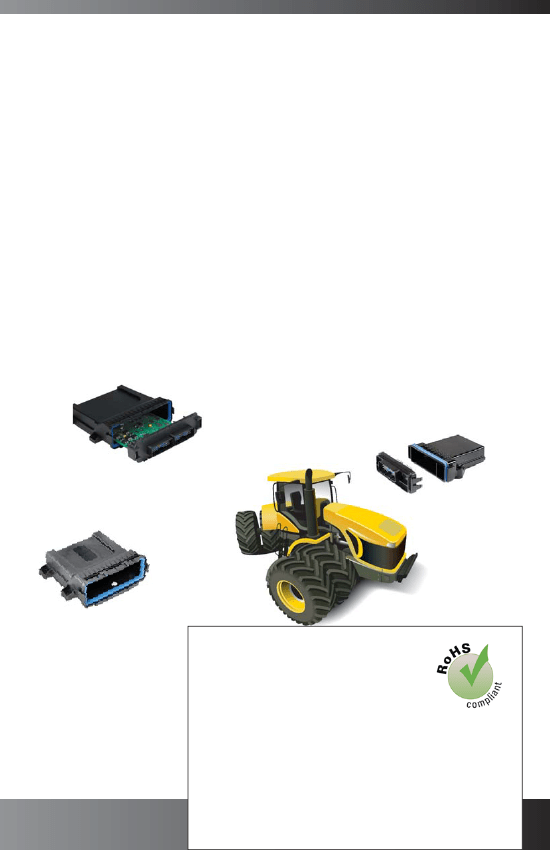

LE Enclosure
(PCB not provided by Cinch)
ME Enclosure
SE Enclosure with Vent
Product Specification
Operating Temperature:
-40°C to +85°C
Current:
10 Amp @ 85°C
Contact Resistance:
< 10mΩ
Insulation Resistance:
> 1000 MΩ
Sealing:
IP67, IP69K
Temperature Life:
1008 Hrs @85°C
Current Cycling:
500Hrs @ 10 Amp
500 cycles 45 min ON – 15 min OFF
Vibration:
10 to 2000 to 10 Hz with 15 g’s peak level
Shock:
50 g’s – 20 pulses
Salt Spray:
96 Hrs
Temperature Humidity Cycling:
320 Hrs
40 – 8 Hrs cycles -40°C to +85°C
Fluid Resistance:
Resists to most fluids used in industrial applications
5
