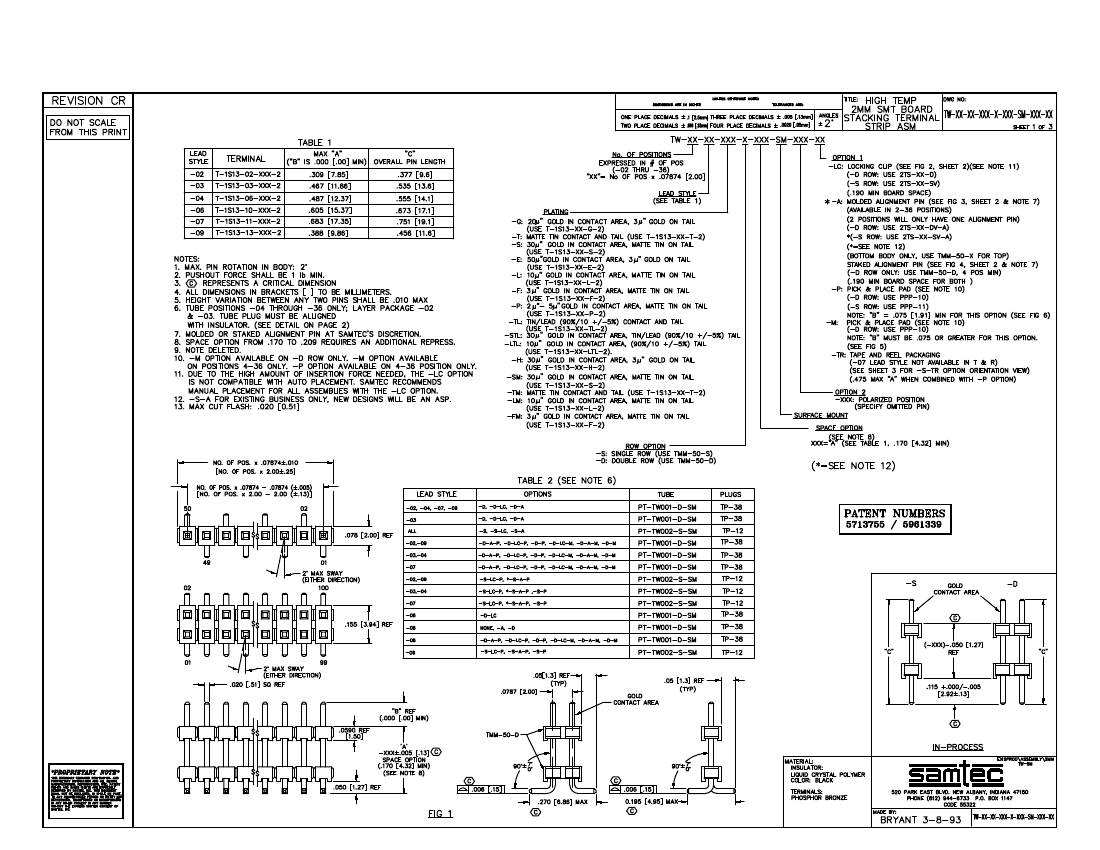

TW-20-07-S-D-370-SM-A datasheet, PDF

TW-20-07-S-D-370-SM-A: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TW-20-07-S-D-370-SM-A Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164103262
Reach Compliance Code	compliant
Country Of Origin	USA
Factory Lead Time	2 weeks
YTEOL	8.5
Board mount options	PEG
body width	0.155 inch
subject depth	0.37 inch
body length	1.58 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Plating thickness	30u inch
Rated current (signal)	4.9 A
Guideline	UL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
