2170287-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2170287-8

2170287-8: Description1X4 CAGE ASSEMBLY, THRU BEZEL, W/ GASKET; CategoryThe connector; File Size3MB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2170287-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2170287-8	-	-	View	Buy Now

2170287-8 Overview

1X4 CAGE ASSEMBLY, THRU BEZEL, W/ GASKET

2170287-8 Parametric

Parameter Name	Attribute value
Dimensions	QSFP+
Radiator included	yes
cage type	Linkage
Connector System	cable to board
Sealable	yes
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 4
Number of ports	4
Number of rear EONs per port post	2
Data rate (max) (Gb/s)	14
Radiator type	heat sink
Radiator height category	SAN
Radiator height	6.5 mm [ .256 in ]
Radiator surface coating	anodized black
PCB terminal termination area plating materials	tin
PCB Termination Methods	Through hole - solderless connection
Connector mounting type	board mounting
cage material	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]
tail length	2.2 mm [ .086 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	boxes and trays
EMI containment feature types	Elastomeric sealing ring
Light pipe included	no
Enhanced functionality	standard

Preview

Download Datasheet

View All

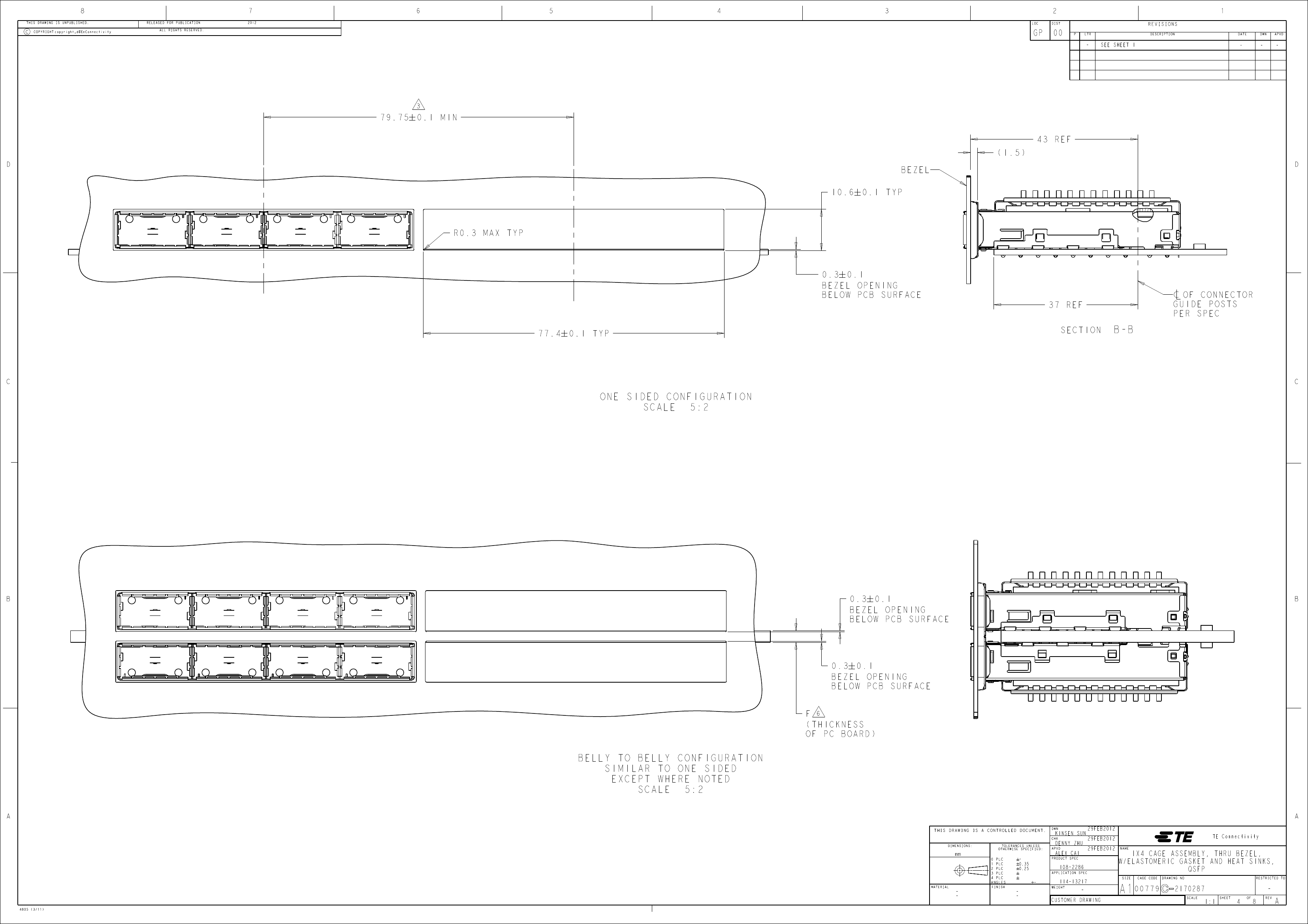

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2012

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

copyright_date Connectivity

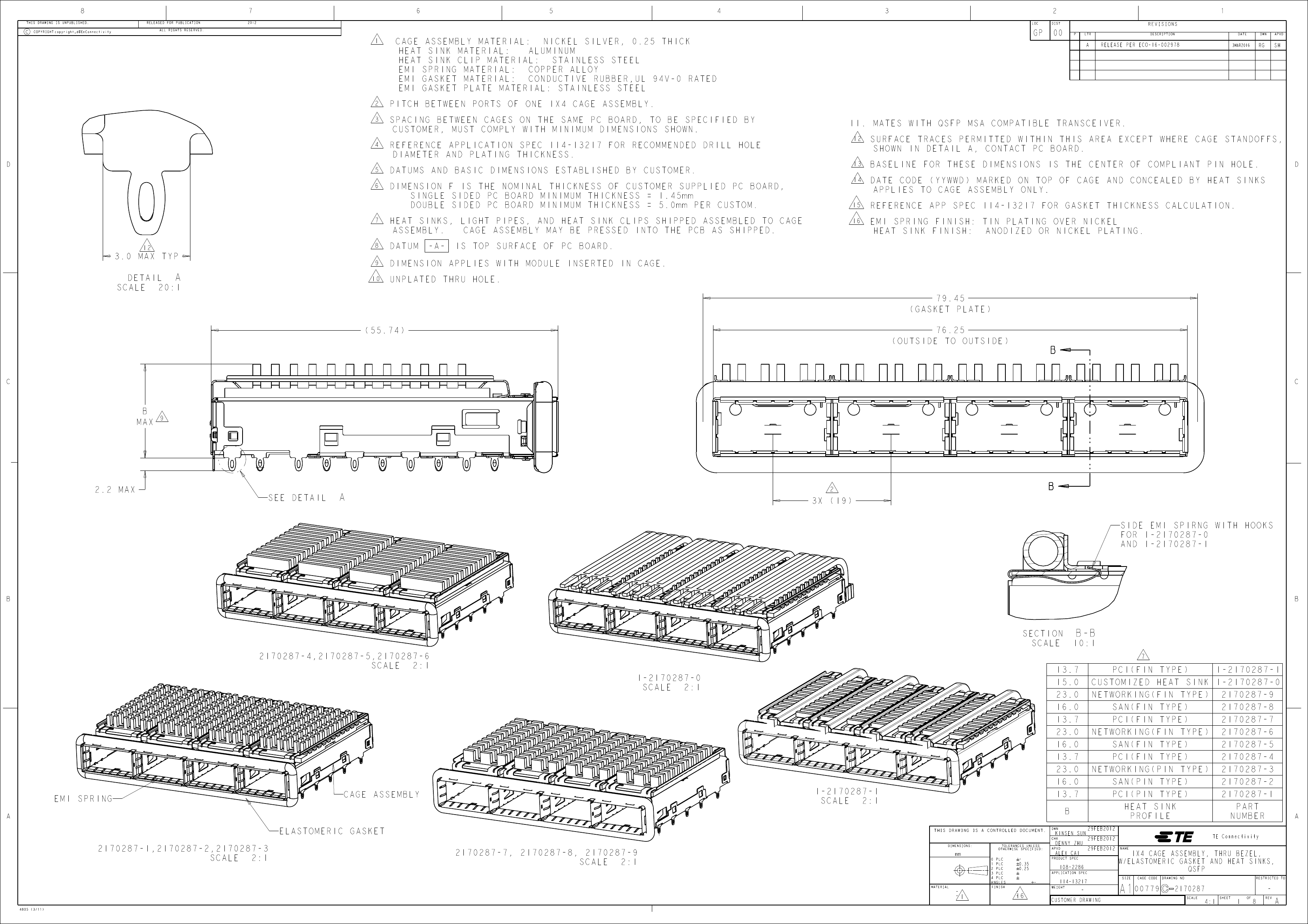

CAGE ASSEMBLY MATERIAL: NICKEL SILVER, 0.25 THICK

HEAT SINK MATERIAL:

ALUMINUM

HEAT SINK CLIP MATERIAL: STAINLESS STEEL

EMI SPRING MATERIAL: COPPER ALLOY

EMI GASKET MATERIAL: CONDUCTIVE RUBBER,UL 94V-0 RATED

EMI GASKET PLATE MATERIAL: STAINLESS STEEL

PITCH BETWEEN PORTS OF ONE 1X4 CAGE ASSEMBLY.

SPACING BETWEEN CAGES ON THE SAME PC BOARD, TO BE SPECIFIED BY

CUSTOMER, MUST COMPLY WITH MINIMUM DIMENSIONS SHOWN.

REFERENCE APPLICATION SPEC 114-13217 FOR RECOMMENDED DRILL HOLE

DIAMETER AND PLATING THICKNESS.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

DIMENSION F IS THE NOMINAL THICKNESS OF CUSTOMER SUPPLIED PC BOARD,

SINGLE SIDED PC BOARD MINIMUM THICKNESS = 1.45mm

DOUBLE SIDED PC BOARD MINIMUM THICKNESS = 5.0mm PER CUSTOM.

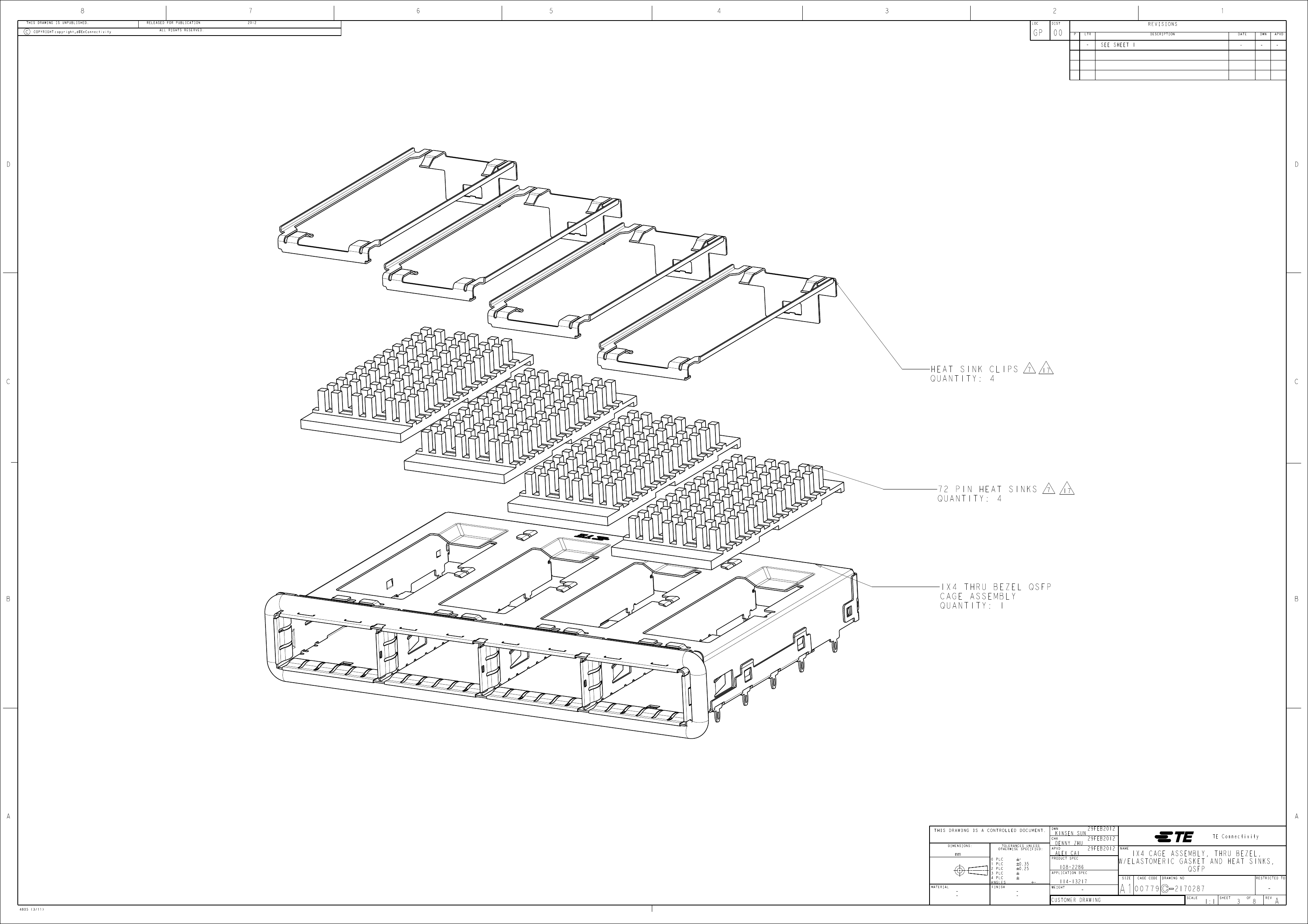

HEAT SINKS, LIGHT PIPES, AND HEAT SINK CLIPS SHIPPED ASSEMBLED TO CAGE

ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED.

DATUM

-A-

IS TOP SURFACE OF PC BOARD.

DIMENSION APPLIES WITH MODULE INSERTED IN CAGE.

UNPLATED THRU HOLE.

79.45

(GASKET PLATE)

RELEASE PER ECO-16-002978

3MAR2016

11. MATES WITH QSFP MSA COMPATIBLE TRANSCEIVER.

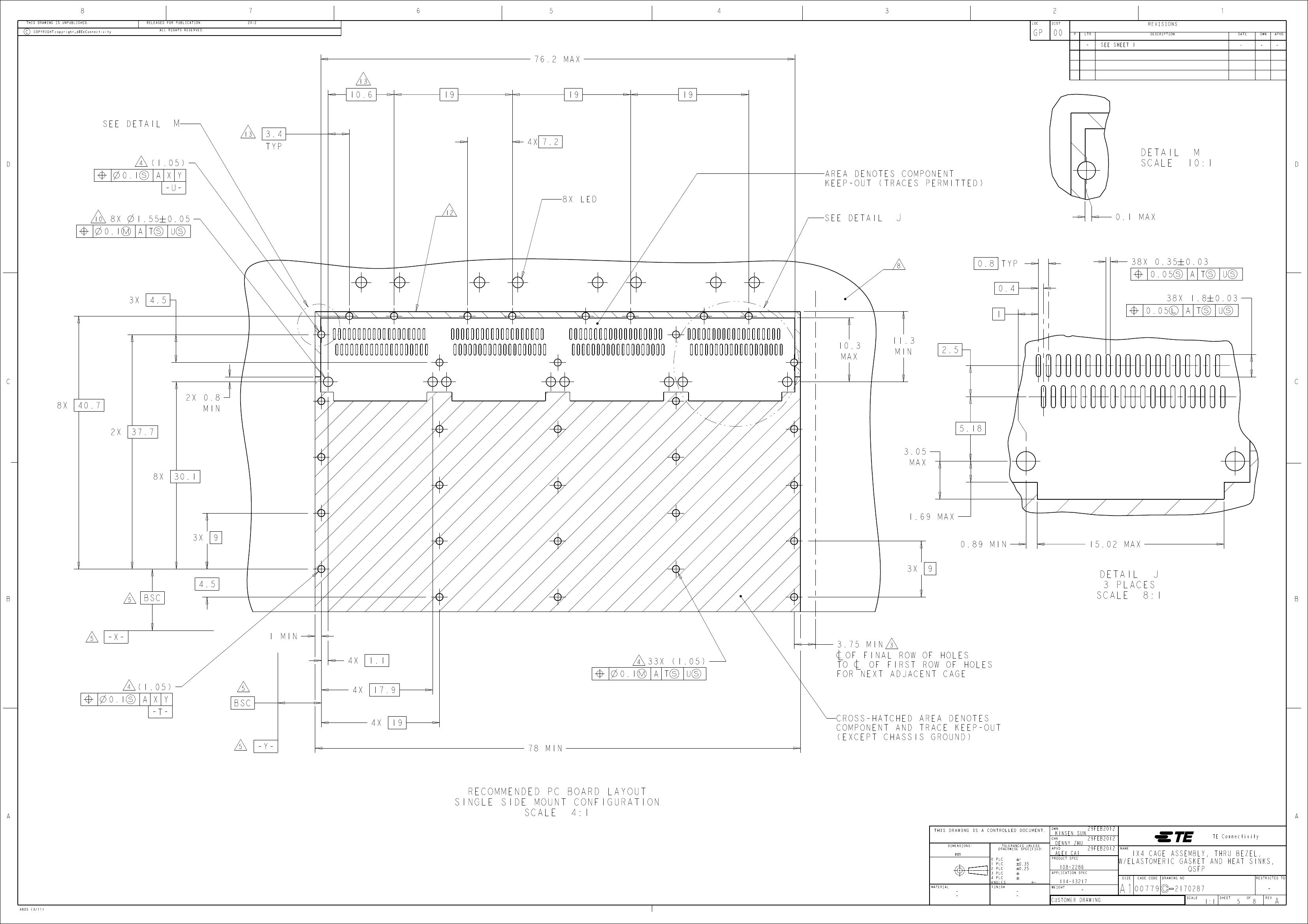

SURFACE TRACES PERMITTED WITHIN THIS AREA EXCEPT WHERE CAGE STANDOFFS,

SHOWN IN DETAIL A, CONTACT PC BOARD.

BASELINE FOR THESE DIMENSIONS IS THE CENTER OF COMPLIANT PIN HOLE.

DATE CODE (YYWWD) MARKED ON TOP OF CAGE AND CONCEALED BY HEAT SINKS

APPLIES TO CAGE ASSEMBLY ONLY.

REFERENCE APP SPEC 114-13217 FOR GASKET THICKNESS CALCULATION.

EMI SPRING FINISH: TIN PLATING OVER NICKEL

HEAT SINK FINISH: ANODIZED OR NICKEL PLATING.

3.0 MAX TYP

DETAIL

SCALE

20:1

( 55.74 )

76.25

(OUTSIDE TO OUTSIDE)

MAX

2.2 MAX

SEE DETAIL

3X ( 19 )

SIDE EMI SPIRNG WITH HOOKS

FOR 1-2170287-0

AND 1-2170287-1

2170287-4,2170287-5,2170287-6

SCALE

2:1

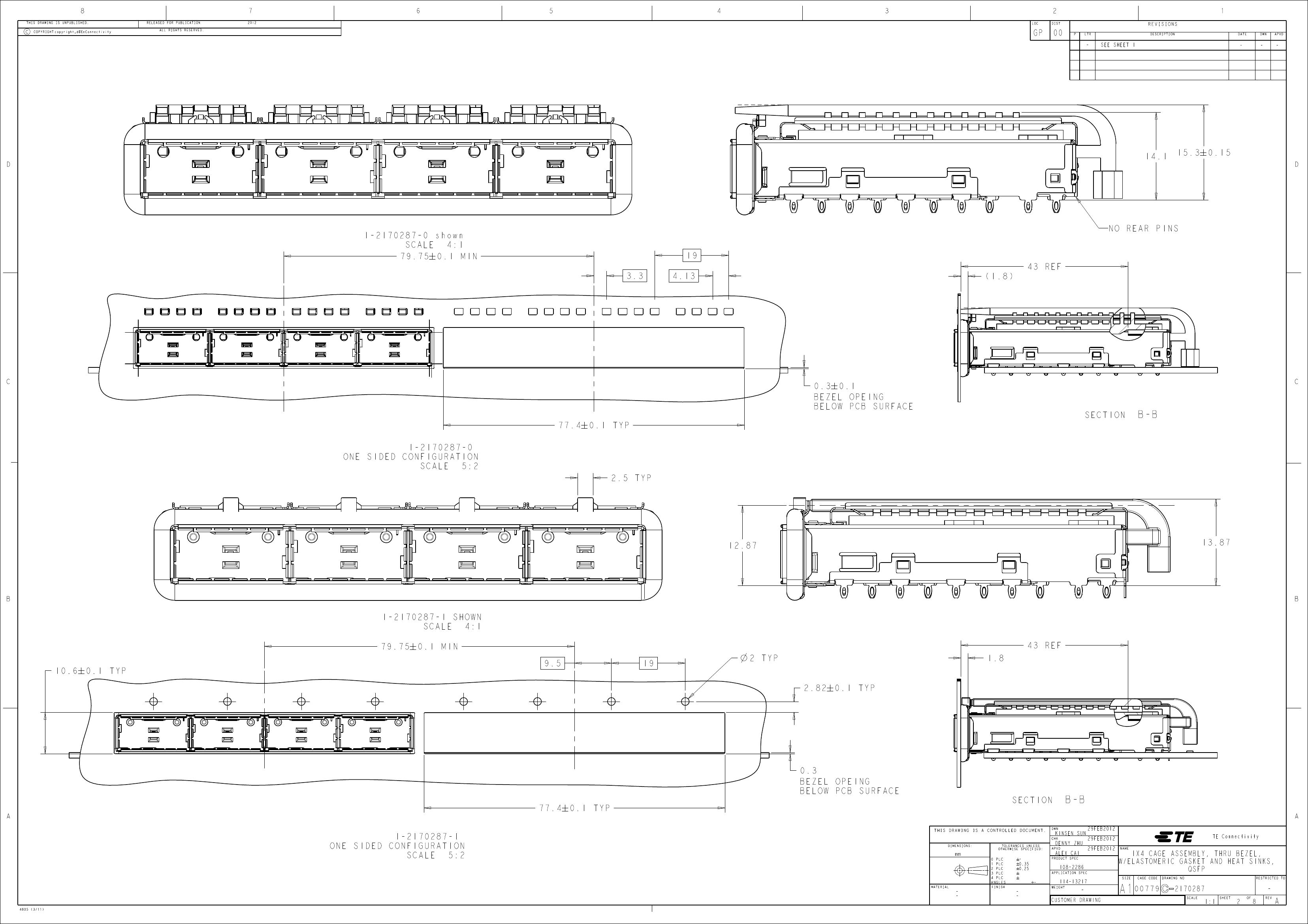

SECTION

SCALE

10:1

B-B

1-2170287-0

SCALE

2:1

13.7

15.0

23.0

16.0

13.7

23.0

16.0

13.7

23.0

16.0

13.7

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

CUSTOMIZED HEAT SINK

SAN(FIN TYPE)

PCI(FIN TYPE)

SAN(FIN TYPE)

PCI(FIN TYPE)

1-2170287-1

1-2170287-0

2170287-9

2170287-8

2170287-7

2170287-6

2170287-5

2170287-4

2170287-3

2170287-2

2170287-1

PART

NUMBER

NETWORKING(FIN TYPE)

NETWORKING(PIN TYPE)

SAN(PIN TYPE)

PCI(PIN TYPE)

HEAT SINK

PROFILE

EMI SPRING

CAGE ASSEMBLY

1-2170287-1

SCALE

2:1

ELASTOMERIC GASKET

2170287-1,2170287-2,2170287-3

SCALE

2:1

2170287-7, 2170287-8, 2170287-9

SCALE

2:1

KINSEN SUN

DENNY ZHU

ALEX CAI

108-2286

29FEB2012

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.35

0.25

PRODUCT SPEC

APPLICATION SPEC

1X4 CAGE ASSEMBLY, THRU BEZEL,

W/ELASTOMERIC GASKET AND HEAT SINKS,

QSFP

WEIGHT

114-13217

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

2170287

SCALE

4805 (3/11)

4:1

SHEET

REV
