2057042-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2057042-5

2057042-5: Description1x3 QSFP Kit Assy Lp&HS, SAN; CategoryThe connector; File Size2MB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2057042-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2057042-5	-	-	View	Buy Now

2057042-5 Overview

1x3 QSFP Kit Assy Lp&HS, SAN

2057042-5 Parametric

Parameter Name	Attribute value
Dimensions	QSFP+
Radiator included	yes
cage type	Linkage
Connector System	cable to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 3
Number of ports	3
Light pipe configuration	double circle
Number of rear EONs per port post	1
Data rate (max) (Gb/s)	14
Radiator type	Pin
Radiator height category	SAN
Radiator height	6.5 mm [ .256 in ]
Radiator surface coating	anodized black
PCB terminal termination area plating materials	tin
PCB Termination Methods	Through hole - solderless connection
Connector mounting type	board mounting
cage material	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]
tail length	2.2 mm [ .086 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard
Circuit Application	Signal
UL flammability rating	UL 94V-0
Encapsulation method	boxes and trays
EMI containment feature types	Seals for customer applications
Light pipe included	yes
Enhanced functionality	standard

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2007

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2007

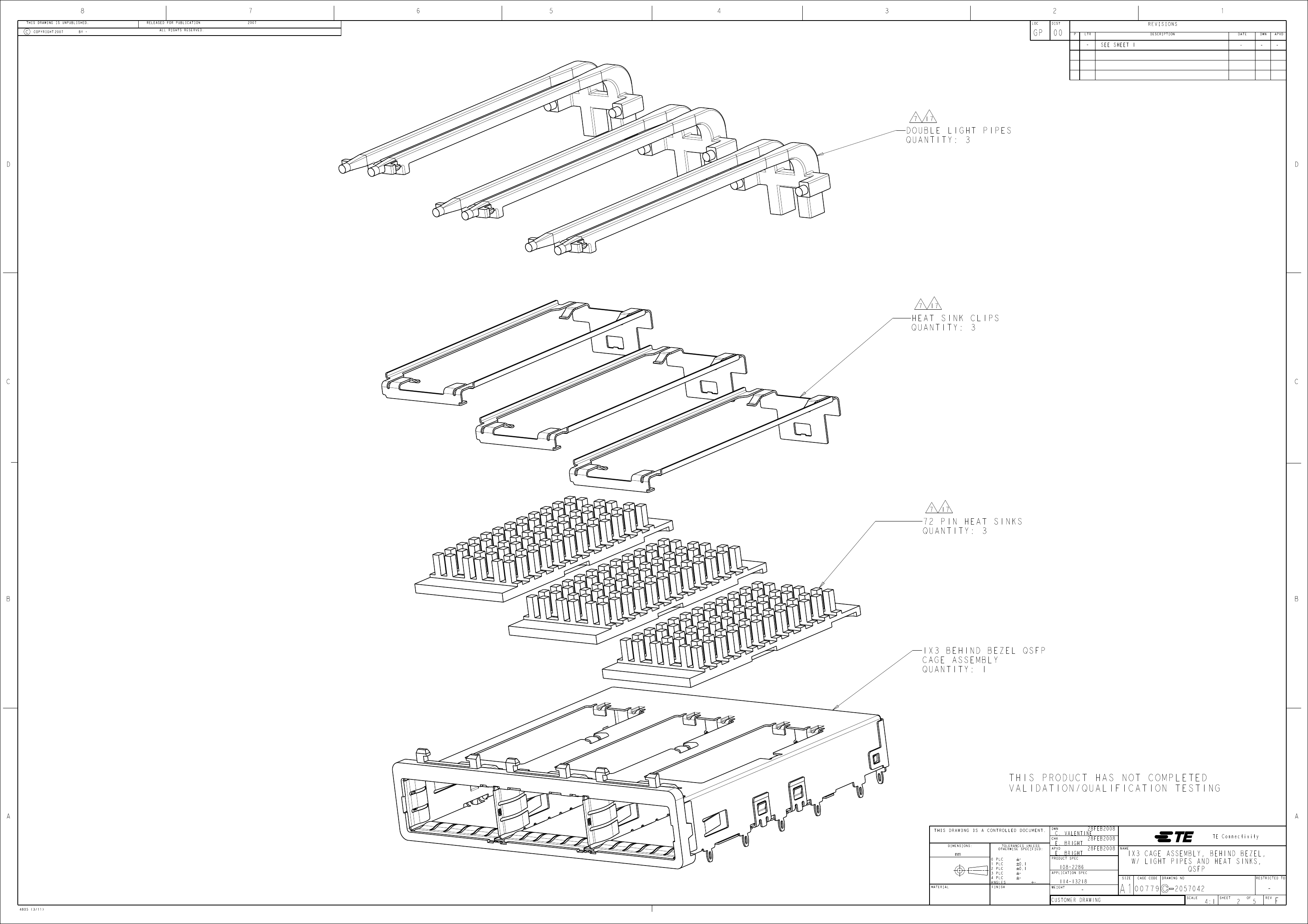

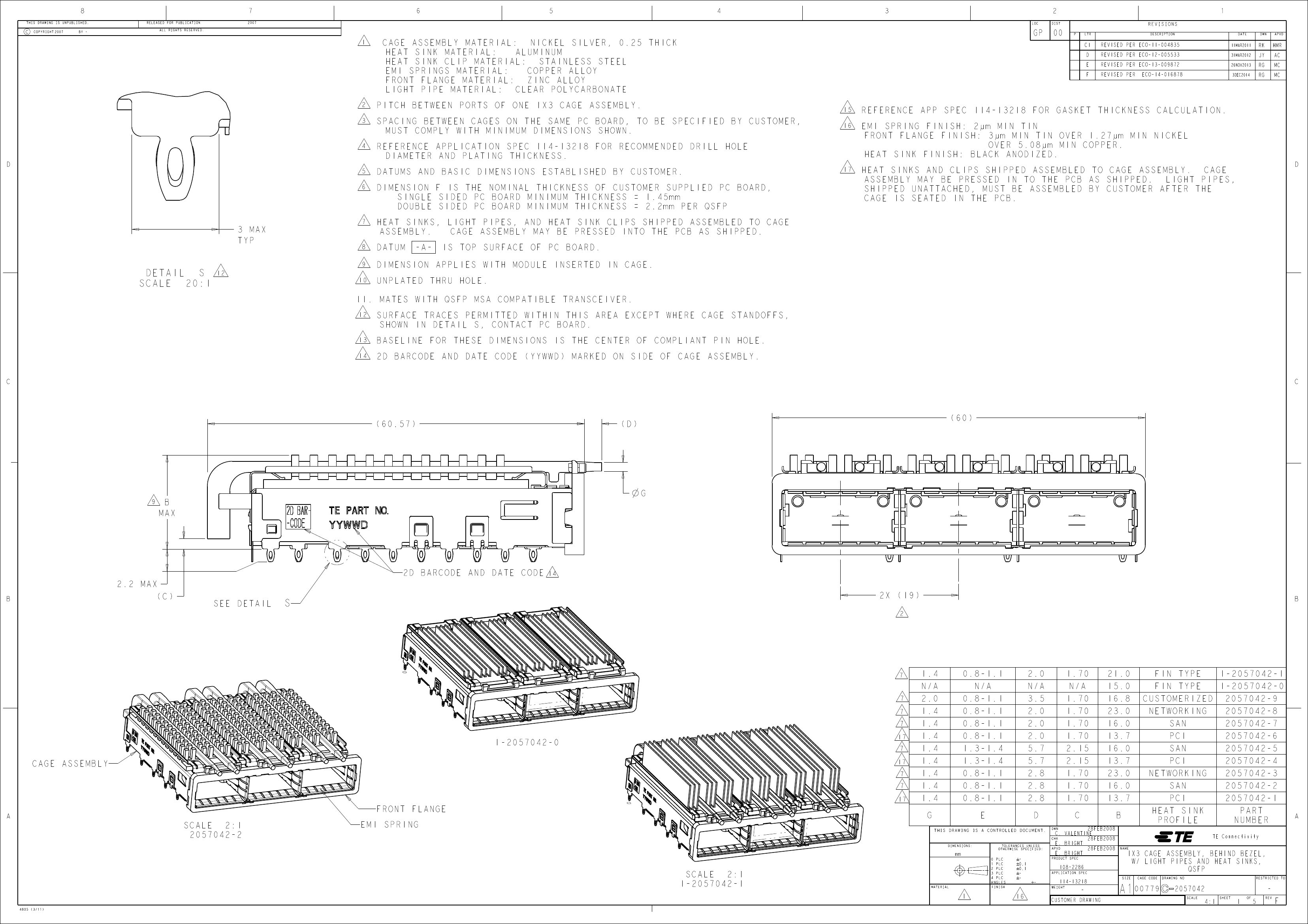

CAGE ASSEMBLY MATERIAL: NICKEL SILVER, 0.25 THICK

HEAT SINK MATERIAL:

ALUMINUM

HEAT SINK CLIP MATERIAL: STAINLESS STEEL

EMI SPRINGS MATERIAL:

COPPER ALLOY

FRONT FLANGE MATERIAL: ZINC ALLOY

LIGHT PIPE MATERIAL: CLEAR POLYCARBONATE

PITCH BETWEEN PORTS OF ONE 1X3 CAGE ASSEMBLY.

SPACING BETWEEN CAGES ON THE SAME PC BOARD, TO BE SPECIFIED BY CUSTOMER,

MUST COMPLY WITH MINIMUM DIMENSIONS SHOWN.

REFERENCE APPLICATION SPEC 114-13218 FOR RECOMMENDED DRILL HOLE

DIAMETER AND PLATING THICKNESS.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

DIMENSION F IS THE NOMINAL THICKNESS OF CUSTOMER SUPPLIED PC BOARD,

SINGLE SIDED PC BOARD MINIMUM THICKNESS = 1.45mm

DOUBLE SIDED PC BOARD MINIMUM THICKNESS = 2.2mm PER QSFP

HEAT SINKS, LIGHT PIPES, AND HEAT SINK CLIPS SHIPPED ASSEMBLED TO CAGE

ASSEMBLY.

CAGE ASSEMBLY MAY BE PRESSED INTO THE PCB AS SHIPPED.

DATUM

-A-

IS TOP SURFACE OF PC BOARD.

DIMENSION APPLIES WITH MODULE INSERTED IN CAGE.

UNPLATED THRU HOLE.

REVISED PER ECO-11-004835

REVISED PER ECO-12-005533

REVISED PER ECO-13-009872

REVISED PER

ECO-14-016878

11MAR2011

31MAR2012

26NOV2013

3DEC2014

HMR

REFERENCE APP SPEC 114-13218 FOR GASKET THICKNESS CALCULATION.

EMI SPRING FINISH: 2µm MIN TIN

FRONT FLANGE FINISH: 3µm MIN TIN OVER 1.27µm MIN NICKEL

OVER 5.08µm MIN COPPER.

HEAT SINK FINISH: BLACK ANODIZED.

HEAT SINKS AND CLIPS SHIPPED ASSEMBLED TO CAGE ASSEMBLY. CAGE

ASSEMBLY MAY BE PRESSED IN TO THE PCB AS SHIPPED. LIGHT PIPES,

SHIPPED UNATTACHED, MUST BE ASSEMBLED BY CUSTOMER AFTER THE

CAGE IS SEATED IN THE PCB.

3 MAX

TYP

DETAIL

SCALE

20:1

11. MATES WITH QSFP MSA COMPATIBLE TRANSCEIVER.

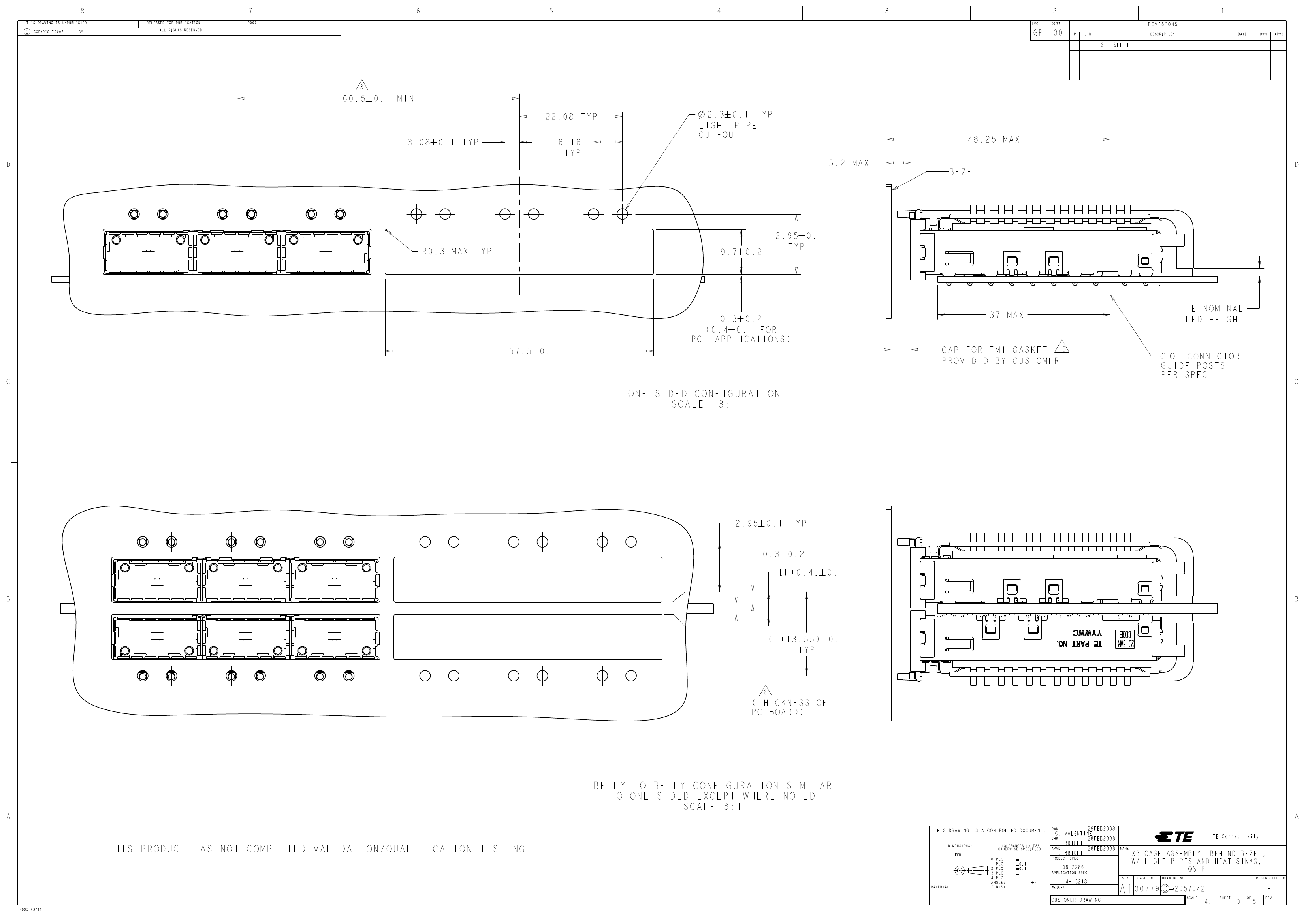

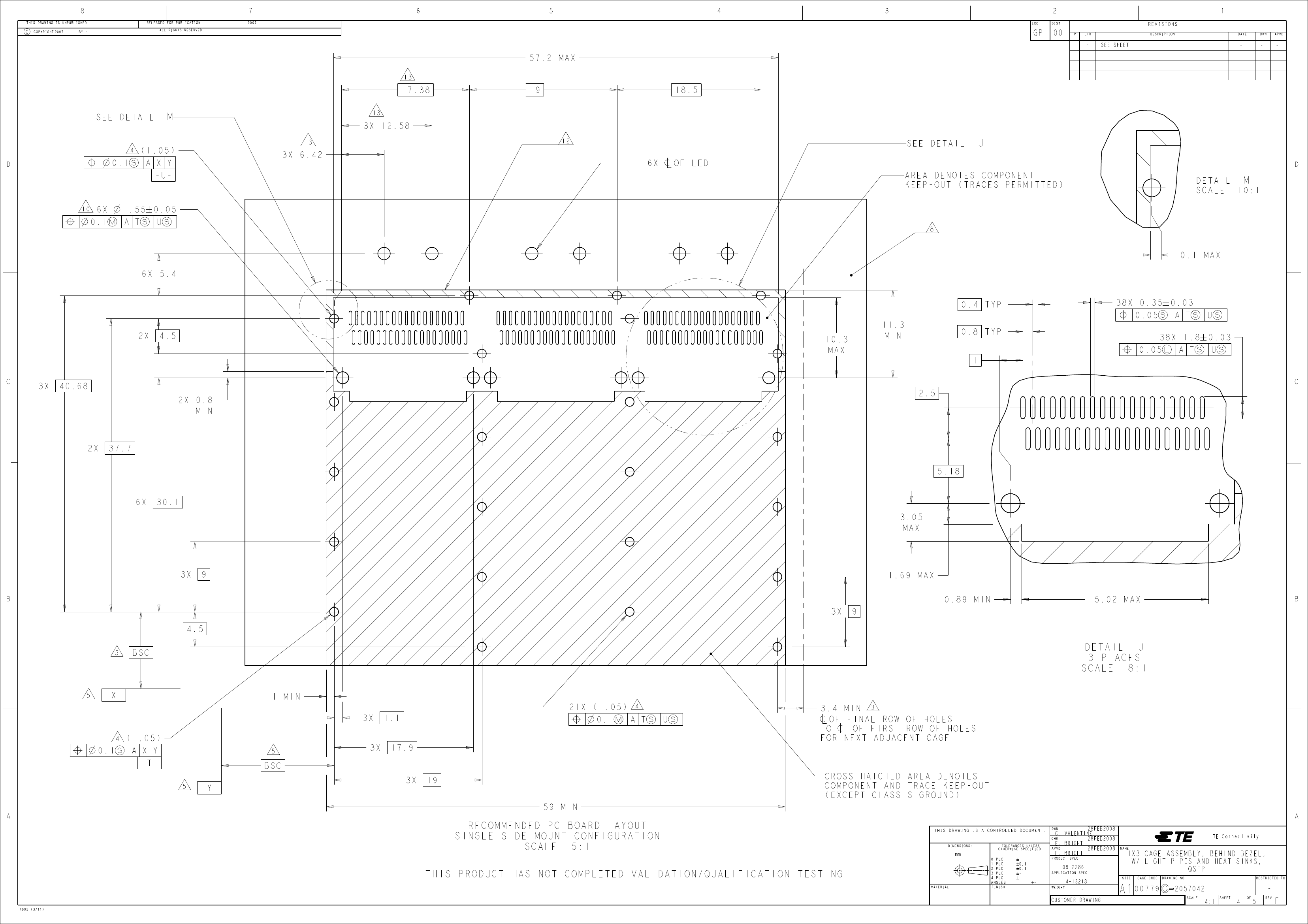

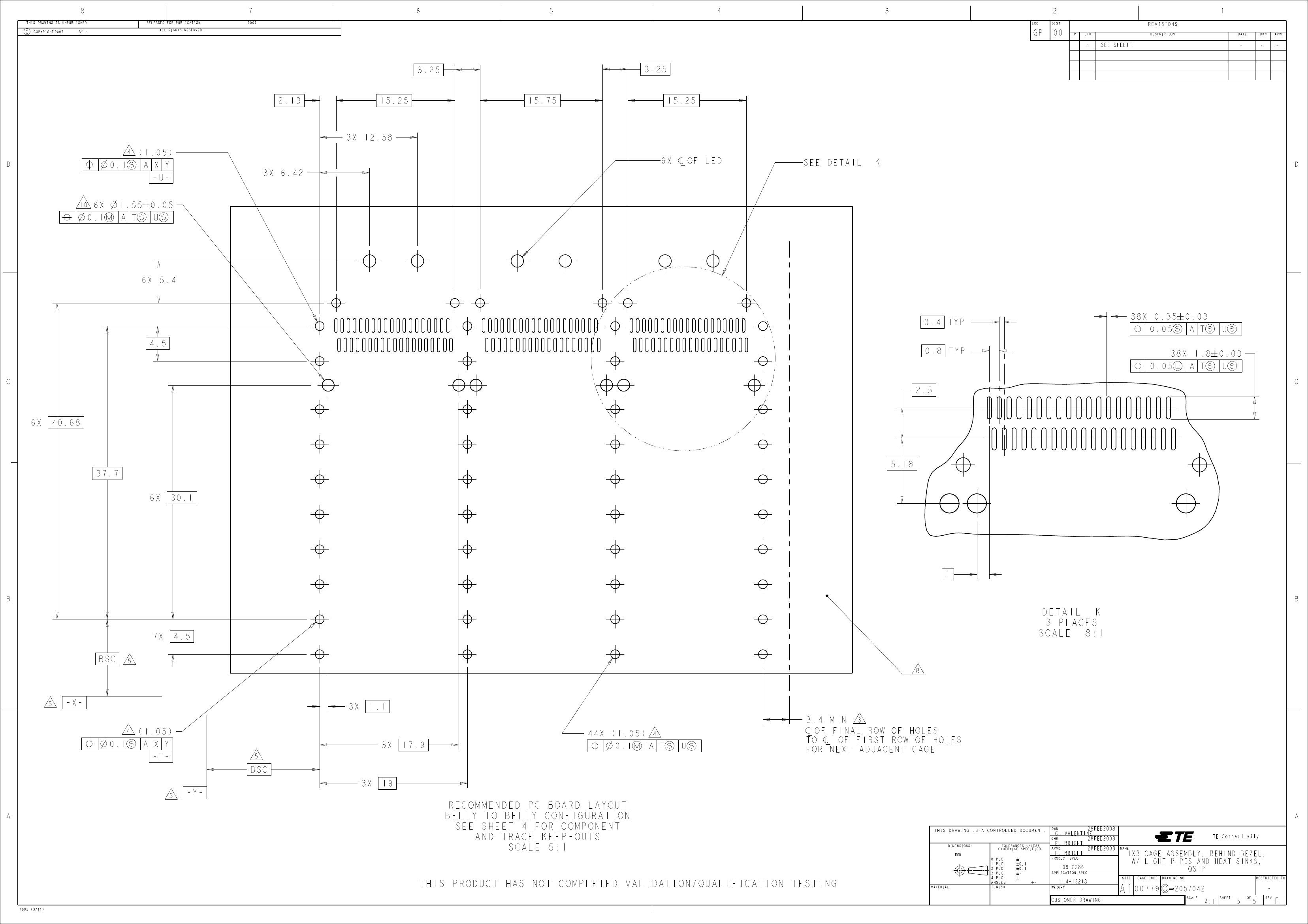

SURFACE TRACES PERMITTED WITHIN THIS AREA EXCEPT WHERE CAGE STANDOFFS,

SHOWN IN DETAIL S, CONTACT PC BOARD.

BASELINE FOR THESE DIMENSIONS IS THE CENTER OF COMPLIANT PIN HOLE.

2D BARCODE AND DATE CODE (YYWWD) MARKED ON SIDE OF CAGE ASSEMBLY.

( 60.57 )

(D)

( 60 )

MAX

2.2 MAX

2D BARCODE AND DATE CODE

(C)

SEE DETAIL

2X ( 19 )

1.4

N/A

2.0

1.4

0.8-1.1

N/A

2.0

N/A

2.0

3.5

1.70

N/A

21.0

15.0

23.0

13.7

16.0

16.8

FIN TYPE

CUSTOMERIZED

NETWORKING

PCI

SAN

FIN TYPE

1-2057042-1

1-2057042-0

2057042-9

0.8-1.1

1.3-1.4

0.8-1.1

DIMENSIONS:

0.8-1.1

1-2057042-0

CAGE ASSEMBLY

0.8-1.1

2.0

5.7

2.0

1.70

2.15

1.70

DWN

CHK

1.70

2057042-7

2057042-5

2057042-3

2057042-1

PART

NUMBER

2057042-2

2057042-4

2057042-6

2057042-8

1.3-1.4

2.15

16.0

23.0

13.7

0.8-1.1

2.8

1.70

FRONT FLANGE

SCALE

2:1

2057042-2

EMI SPRING

13.7

28FEB2008

NAME

16.0

NETWORKING

SAN

PCI

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

HEAT SINK

PROFILE

C. VALENTINE

E. BRIGHT

108-2286

TE Connectivity

APVD

SCALE

2:1

1-2057042-1

4805 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.1

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13218

CUSTOMER DRAWING

00779

SIZE

1X3 CAGE ASSEMBLY, BEHIND BEZEL,

W/ LIGHT PIPES AND HEAT SINKS,

QSFP

CAGE CODE

DRAWING NO

RESTRICTED TO

2057042

SCALE

4:1

SHEET

REV

2057042-5 Related Products

	2057042-5	2057042-4
Description	1x3 QSFP Kit Assy Lp&HS, SAN	1x3 QSFP Kit Assy Lp&HS, PCI
Dimensions	QSFP+	QSFP+
Radiator included	yes	yes
cage type	Linkage	Linkage
Connector System	cable to board	cable to board
Sealable	no	no
Connectors and terminals terminate to	A printed circuit board	A printed circuit board
Port matrix configuration	1 x 3	1 x 3
Number of ports	3	3
Light pipe configuration	double circle	double circle
Number of rear EONs per port post	1	1
Data rate (max) (Gb/s)	14	14
Radiator type	Pin	Pin
Radiator height category	SAN	PCI
Radiator height	6.5 mm [ .256 in ]	4.2 mm [ .165 in ]
Radiator surface coating	anodized black	anodized black
PCB terminal termination area plating materials	tin	tin
PCB Termination Methods	Through hole - solderless connection	Through hole - solderless connection
Connector mounting type	board mounting	board mounting
cage material	nickel silver	nickel silver
PCB thickness (recommended)	1.45 mm [ .057 in ]	1.45 mm [ .057 in ]
tail length	2.2 mm [ .086 in ]	2.2 mm [ .086 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]
Suitable for pluggable I/O products	QSFP cable assembly, QSFP MSA compatible transceiver	QSFP cable assembly, QSFP MSA compatible transceiver
Pluggable I/O Applications	standard	standard
Circuit Application	Signal	Signal
UL flammability rating	UL 94V-0	UL 94V-0
Encapsulation method	boxes and trays	boxes and trays
EMI containment feature types	Seals for customer applications	Seals for customer applications
Light pipe included	yes	yes
Enhanced functionality	standard	standard
