4
THIS DRAWING IS UNPUBLISHED.
DIFFUSION RESTREINTE
3
RELEASED FOR PUBLICATION
LIBRE A LA DIFFUSION
ALL RIGHTS RESERVED.
TOUS DROITS RESERVES
20
2
REVISIONS
P
LTR
DESCRIPTION
MODIFICATIONS
1
DATE
DWN
DESS.
APVD
APP.
C
COPYRIGHT
20
BY -
DATE CODE MARKING
SEE NOTE 6
F
+0.02
n 0.63
-0.03
F1
DRAWING NOTES CORRECTED
01AUG2016
KJK
PS
D
HEADER TYPE
MARKING
SEE NOTE 5
F
4
0.5
8.8
0
-0.2
7
0
-0.5
D
SECTION
2.9
0.3
A-A
C
C
1.27
MAX
"A"
2.54
1.27
MAX
PERCAGE CARTE DE C.I.
PCB LAYOUT HOLES
2.54
2.54
typ.
+0.1
-0.05
SCALE
6:1
2.54
7
OBSOLETE
50.80
45.72
43.18
38.10
"C" MAX
SCALE
3:1
7
OBSOLETE
33.02
30.48
25.40
20.32
15.24
12.70
10.16
7.62
5.08
C
48.26
43.18
40.64
35.56
30.48
27.94
22.86
17.78
12.70
10.16
7.62
5.08
2.54
A
2x
2x
2x
2x
2x
2x
2x
2x
2x
2x
2x
2x
2x
20
18
17
15
13
12
10
8
6
5
4
3
2
2-281743-0
1-281743-8
1-281743-7
1-281743-5
1-281743-3
1-281743-2
1-281743-0
0-281743-8
0-281743-6
0-281743-5
0-281743-4
0-281743-3
0-281743-2
PART NUMBER
*
7.62 MAX
7
-X-
OBSOLETE
*
B
CONTACT
No 1
NOTES:
B
*
*
*
*
*
*
*
1. THESE HEADERS ARE DESIGNED TO BE MATED WITH "HE1302" RECEPTACLES DOUBLE ROW
2. THE PART NUMBERS FOLLOWED BY * ARE COVERED BY THE INTERNATIONAL STANDARD IEC
3. CONTACTS PLATING: MATING AREA SELECTIVE GOLD MIN 0.4µm OVER MIN 1.27µm NICKEL
SOLDER AREA MIN 2.5µm TIN OVER MIN 1.27µm NICKEL
4. PLASTIC MATERIAL: HIGH TEMPERATURE THERMOPLASTIC, UL-94V0, BLUE COLOR
CONTACT MATERIALl: PHOSPHOR BRONZE
5. HEADER TYPE MARKING (HE1302) WITH BLACK INK
6. DATE CODE MARKING WITH BLACK INK
603-8
DIMENSIONS
Nb
DE
POS
A
ANNEE
YEAR
XXYYDZ
SEMAINE
WEEK
JOUR (1 A 7)
DAY (1 to 7)
"D" POUR L'EQUIPE JOUR et "N" POUR CELLE DE NUIT
1 LETTER "D" FOR DAY & "N" FOR NIGHT TEAM
CE PLAN EST UN DOCUMENT CONTROLE PAR AMP INCORPORATED.
IL EST SUSCEPTIBLE D'ETRE REVISE. CONTACTER LE SERVICE
TECHNIQUE D'AMP DE FRANCE POUR OBTENIR LA DERNIERE REVISION.
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
TOLERANCES NON SPECIFIEES
(SUIV NB DE DECIMALES)
mm
7
OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI
MATERIAL
/MATIERE
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
/DEC:
/DEC:
/DEC:
/DEC:
/DEC:
0.3
PRODUCT SPEC
SPEC. PRODUIT
22NOV2000
C. COMBEDOUZON
CHK /VERIFIE
22NOV2000
T. CORRIOU
APVD /APROUVE
22NOV2000
Y. PETRONIN
DWN /DESSINE
TE Connectivity
NAME
TITRE
A
FINISH /FINITION
5 $
APPLICATION SPEC
SPEC. APPLICATION
WEIGHT
MASSE APPROX.
108-15053
-
SIZE
FORMAT

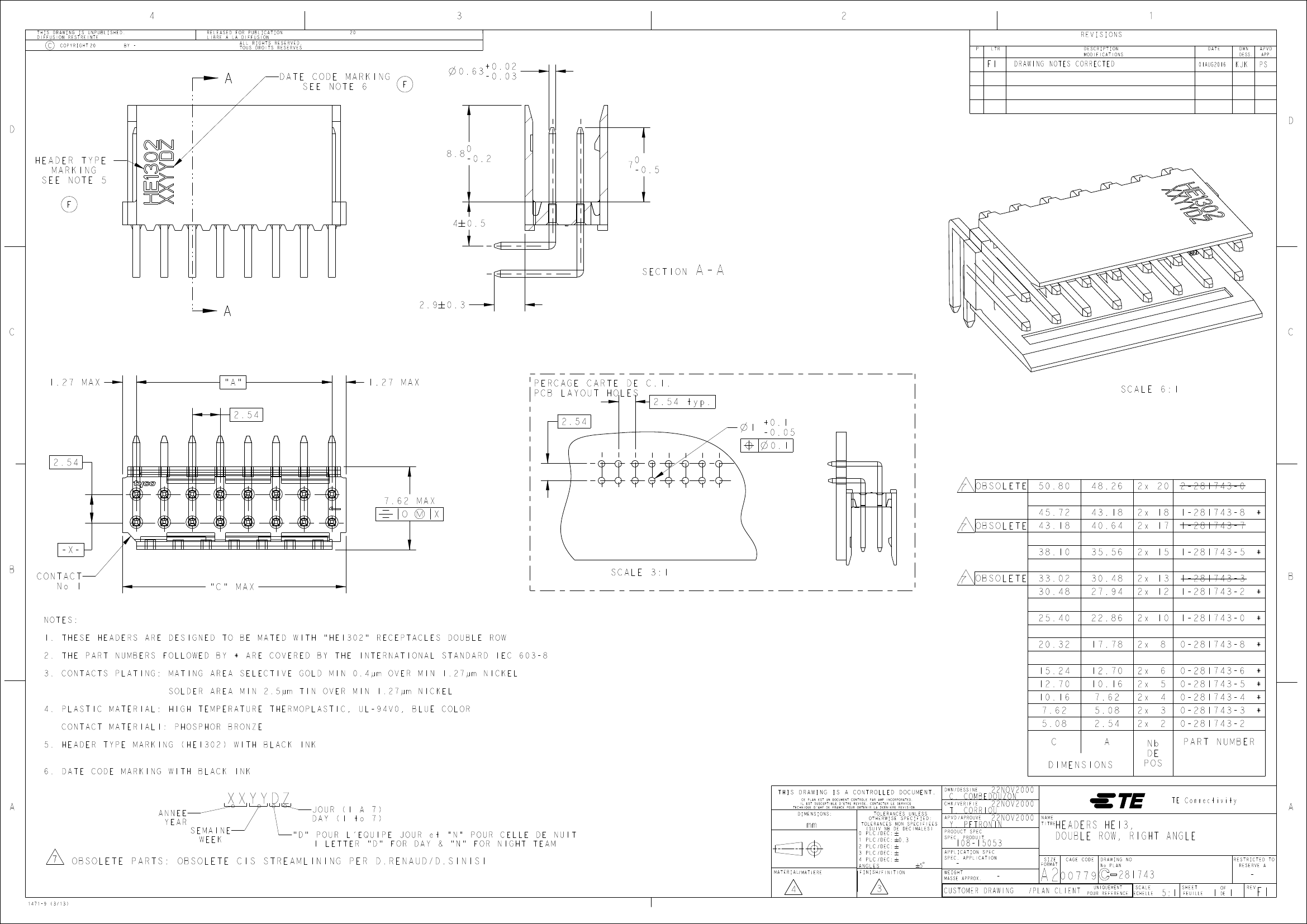

HEADERS HE13,
DOUBLE ROW, RIGHT ANGLE
CAGE CODE
DRAWING NO
No PLAN
4
1471-9 (3/13)
3
-
CUSTOMER DRAWING
/PLAN CLIENT
A2
00779
UNIQUEMENT
POUR REFERENCE
281743
RESTRICTED TO
RESERVE A
SCALE
ECHELLE
5:1
SHEET
FEUILLE
1
OF
DE
1
REV
-
F1
