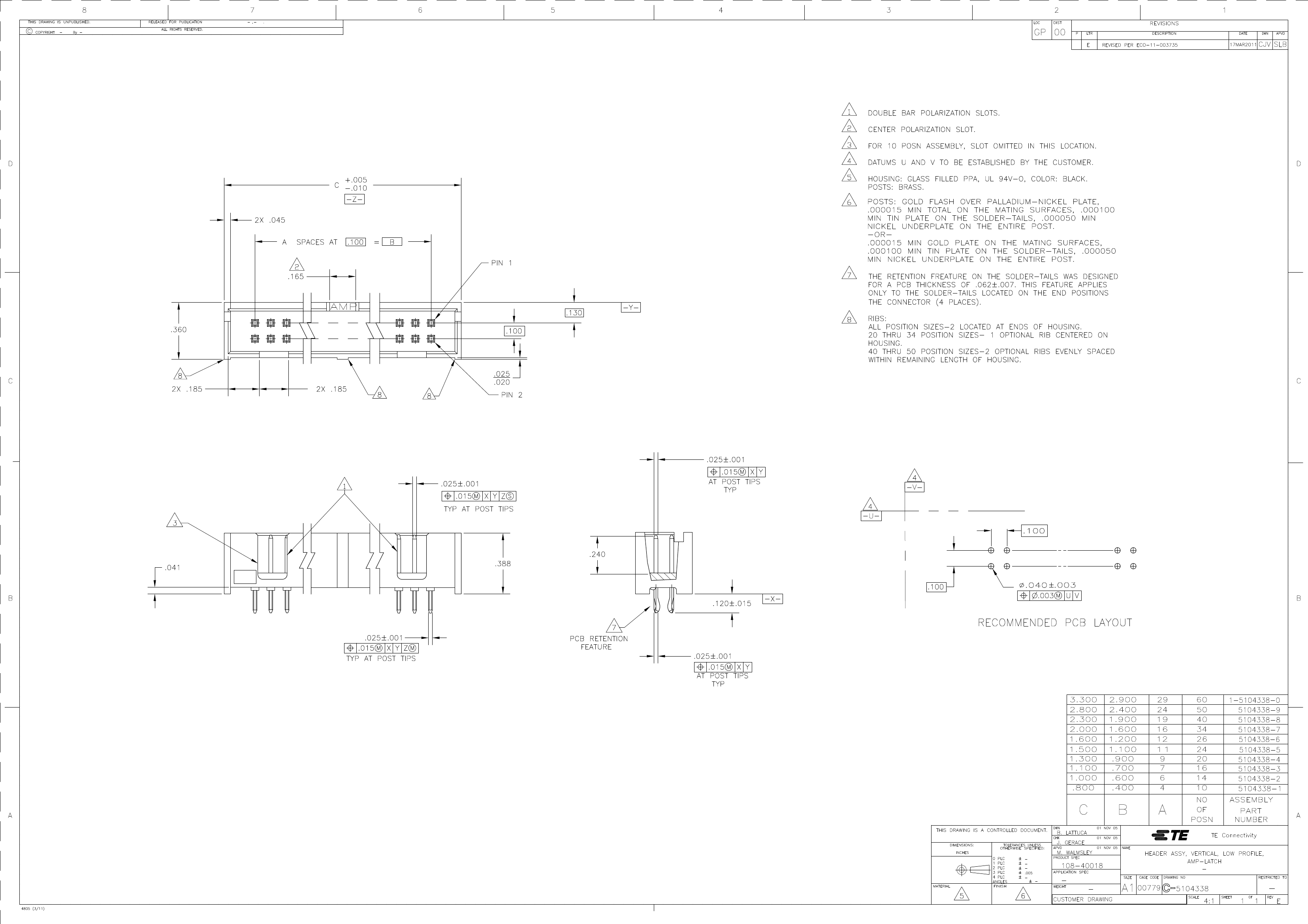

5104338-3

Description
A/L LOW PRO HDR 16P VERT HT
CategoryThe connector    The connector
File Size105KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5104338-3 Online Shopping

Suppliers Part Number Price MOQ In stock
5104338-3 - - View Buy Now

5104338-3 Overview

A/L LOW PRO HDR 16P VERT HT

5104338-3 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Is SamacsysN
Other featuresLOW PROFILE, POLARIZED
body width0.36 inch
subject depth0.388 inch
body length1.1 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH OVER PALLADIUM NICKEL (15)/GOLD (15) OVER NICKEL (50)
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHTHALAMIDE
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts16
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

5104338-3 Related Products

5104338-3 5104338-4 ACS01E20-17SW(023) 5104338-8 5104338-6 Q14R4GKKRG28E-027 Q14R5AYXXSY12A-013
Description A/L LOW PRO HDR 16P VERT HT A/L LOW PRO HDR 20P VERT HT MIL Series Connector A/L LOW PRO HDR 40P VERT HT A/L LOW PRO HDR 26P VERT HT Visible LED, Visible LED,
Reach Compliance Code compliant compliant unknown compliant compliant compliant compliant
Brand Name AMP AMP - AMP AMP - -
Is it Rohs certified? conform to conform to - conform to conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT - ROHS COMPLIANT ROHS COMPLIANT - -
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 - -
Factory Lead Time 10 weeks 10 weeks - 20 weeks 7 weeks - -
Other features LOW PROFILE, POLARIZED LOW PROFILE, POLARIZED STANDARD: MIL-DTL-5015, POLARIZED LOW PROFILE LOW PROFILE, POLARIZED - UL RECOGNIZED
body width 0.36 inch 0.36 inch - 0.36 inch 0.36 inch - -
subject depth 0.388 inch 0.388 inch - 0.347 inch 0.388 inch - -
body length 1.1 inch 1.3 inch - 2.3 inch 1.6 inch - -
Body/casing type PLUG RECEPTACLE RECEPTACLE PLUG RECEPTACLE - -
Connector type BOARD CONNECTOR BOARD CONNECTOR MIL SERIES CONNECTOR BOARD CONNECTOR BOARD CONNECTOR - -
Contact to complete cooperation GOLD FLASH OVER PALLADIUM NICKEL (15)/GOLD (15) OVER NICKEL (50) GOLD FLASH OVER PALLADIUM NICKEL (15)/GOLD (15) OVER NICKEL (50) - NOT SPECIFIED GOLD FLASH OVER PALLADIUM NICKEL (15)/GOLD (15) OVER NICKEL (50) - -
Contact completed and terminated Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier - Tin (Sn) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier - -
Contact point gender MALE MALE FEMALE MALE MALE - -
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE - NOT SPECIFIED PHOSPHOR BRONZE - -
contact mode RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR - -
Contact style SQ PIN-SKT SQ PIN-SKT - SQ PIN-SKT SQ PIN-SKT - -
DIN compliance NO NO - NO NO - -
Filter function NO NO NO NO NO - -
IEC compliance NO NO - NO NO - -
Insulation resistance 1000000000 Ω 1000000000 Ω - 5000000000 Ω 1000000000 Ω - -
Insulator color BLACK BLACK - BLACK BLACK - -
insulator material GLASS FILLED POLYPHTHALAMIDE GLASS FILLED POLYPHTHALAMIDE NEOPRENE GLASS FILLED POLYPHTALAMIDE GLASS FILLED POLYPHTHALAMIDE - -
JESD-609 code e3 e3 - e3 e3 - -
MIL compliance NO NO - NO NO - -
Plug contact pitch 0.1 inch 0.1 inch - 0.1 inch 0.1 inch - -
Match contact row spacing 0.1 inch 0.1 inch - 0.1 inch 0.1 inch - -
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE - -
Mixed contacts NO NO NO NO NO - -
Installation option 1 LOCKING LOCKING - LOCKING LOCKING - -
Installation method STRAIGHT STRAIGHT - STRAIGHT STRAIGHT - -
Installation type BOARD BOARD CABLE BOARD BOARD - -
Number of connectors ONE ONE - ONE ONE - -
PCB row number 2 2 - 2 2 - -
Number of rows loaded 2 2 - 2 2 - -
Maximum operating temperature 105 °C 105 °C 125 °C 105 °C 105 °C - 85 °C
Minimum operating temperature -65 °C -65 °C -55 °C -65 °C -65 °C - -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - -
PCB contact pattern RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR - -
PCB contact row spacing 2.54 mm 2.54 mm - 2.54 mm 2.54 mm - -
polarization key POLARIZED HOUSING POLARIZED HOUSING - POLARIZED POLARIZED HOUSING - -
Rated current (signal) 1 A 1 A - 1 A 1 A - -
Guideline UL, CSA UL, CSA - UL UL, CSA - -
Terminal length 0.12 inch 0.12 inch - 0.12 inch 0.12 inch - -
Terminal pitch 2.54 mm 2.54 mm - 2.54 mm 2.54 mm 2.5 mm -
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER - -
Total number of contacts 16 20 6 40 26 - -
UL Flammability Code 94V-0 94V-0 - 94V-0 94V-0 - -
Objectid - - 7055013090 1659842368 - 145053355895 145054110049
YTEOL - - 8.75 9.1 - 7.72 7.65
