3-647295-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-647295-5

Preview

3-647295-5: Description05P MTA100 HI-TEMP HDR SN TL; CategoryThe connector The connector; File Size313KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-647295-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-647295-5	-	-	View	Buy Now

3-647295-5 Overview

05P MTA100 HI-TEMP HDR SN TL

3-647295-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

K3

REVISED PER ECR-18-004355

18JUN2018

BDA

SG

1

2

POST TO WITHSTAND 13 NEWTONS (3 LBS) MIN AXIAL FORCE

IN BOTH DIRECTIONS SHOWN WITHOUT DISLODGING.

TOLERANCES APPLY TO SOLDER SIDE OF BOARD.

MEASURED AT

-A- .

D

( 10.67 )

[.420]

3

4. PARTS TO COMPLY WITH AMP SOLDERABILITY SPEC 109-11-2.

5

PLUG

ONE HOLE MAY BE UNDERSIZED 0.81 - 0.89 [.032 - .035]

DIA. FOR ASSEMBLY RETENTION DURING WAVE SOLDERING.

MATERIAL: HOUSING : NYLON, 4/6, HIGH TEMP, BLACK.

POST -2 THRU -12 :COPPER ALLOY TIN LEAD (93/7) PLATING

POST -32 THRU -42 : COPPER ALLOY TIN PLATE

COORDINATE DIMENSION APPLIES FROM CENTER OF ACTUAL

FEATURE.

POST TO BE MEASURED WHEN STRIP IS HELD FLAT.

6

7

8

TUBE

9. TUBE MUST MAINTAIN PART ORIENTATION AND ALLOW FREE

SLIDING AT A 45 $ TUBE INCLINE.

10. DIMENSIONS IN BRACKETS ARE IN INCHES.

11

AMP LOGO AND UL AND CSA TRADEMARKS TO APPEAR ON THIS SURFACE.

OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

HEADER ASSEMBLY

(SEE SHEET 2)

12

( 16.00 )

[.630]

C

( 609.60 )

[24.000]

TIN

7.62 [.300]

-

7.62 [.300]

-

W

-

12.70 [.500]

7.62 [.300]

5.08 [.200]

2.54 [.100]

-

10.16 [.400]

2

19

20

22

25

28

32

38

45

57

76

30.48 [1.200]

27.94 [1.100]

25.40 [1.000]

22.86 [.900]

20.32 [.800]

12

10

9

8

7

6

5

4

3

2

11

4- 647295 -1

4- 647295 -0

3- 647295 -9

4- 647295 -2

B

17.78 [.700]

15.24 [.600]

12.70 [.500]

10.16 [.400]

7.62 [.300]

5.08 [.200]

3- 647295 -8

3- 647295 -7

3- 647295 -6

3- 647295 -5

3- 647295 -4

3- 647295 -3

3- 647295 -2

1- 647295 -2

B

TIN

SUPERCEDED BY 4-647295-2

SUPERCEDED BY 4-

SUPERCEDED BY 3-

TUBE LOADED HEADER ASSEMBLY

12

-1

-0

-9

-8

-7

-6

-5

-4

-3

TIN-LEAD

FINISH

TIN-LEAD

12.70 [.500]

10.16 [.400]

7.62 [.300]

5.08 [.200]

-

114

19

20

22

25

28

32

38

45

76

57

30.48 [1.200]

27.94 [1.100]

25.40 [1.000]

22.86 [.900]

20.32 [.800]

17.78 [.700]

15.24 [.600]

12.70 [.500]

10.16 [.400]

7.62 [.300]

5.08 [.200]

L

02JAN2002

NAME

12

11

10

9

8

7

6

5

4

3

2

NO. OF

POSN

1- 647295 -1

1- 647295 -0

647295 -9

647295 -8

647295 -7

647295 -6

647295 -5

647295 -4

647295 -3

647295 -2

TUBE LOADED

ASSEMBLY

PART NUMBER

TE Connectivity

SUPERCEDED BY 3-

2.54 [.100]

SUPERCEDED BY 3-647295-2

-

G

PLUG

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

QTY PER TUBE

DWN

CHK

HEADER

ASSEMBLIES

K. WHITAKER

D. BOSSI

-

114

A

mm[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.38 [.015]

-

0 $ 30'

PRODUCT SPEC

APPLICATION SPEC

SIZE

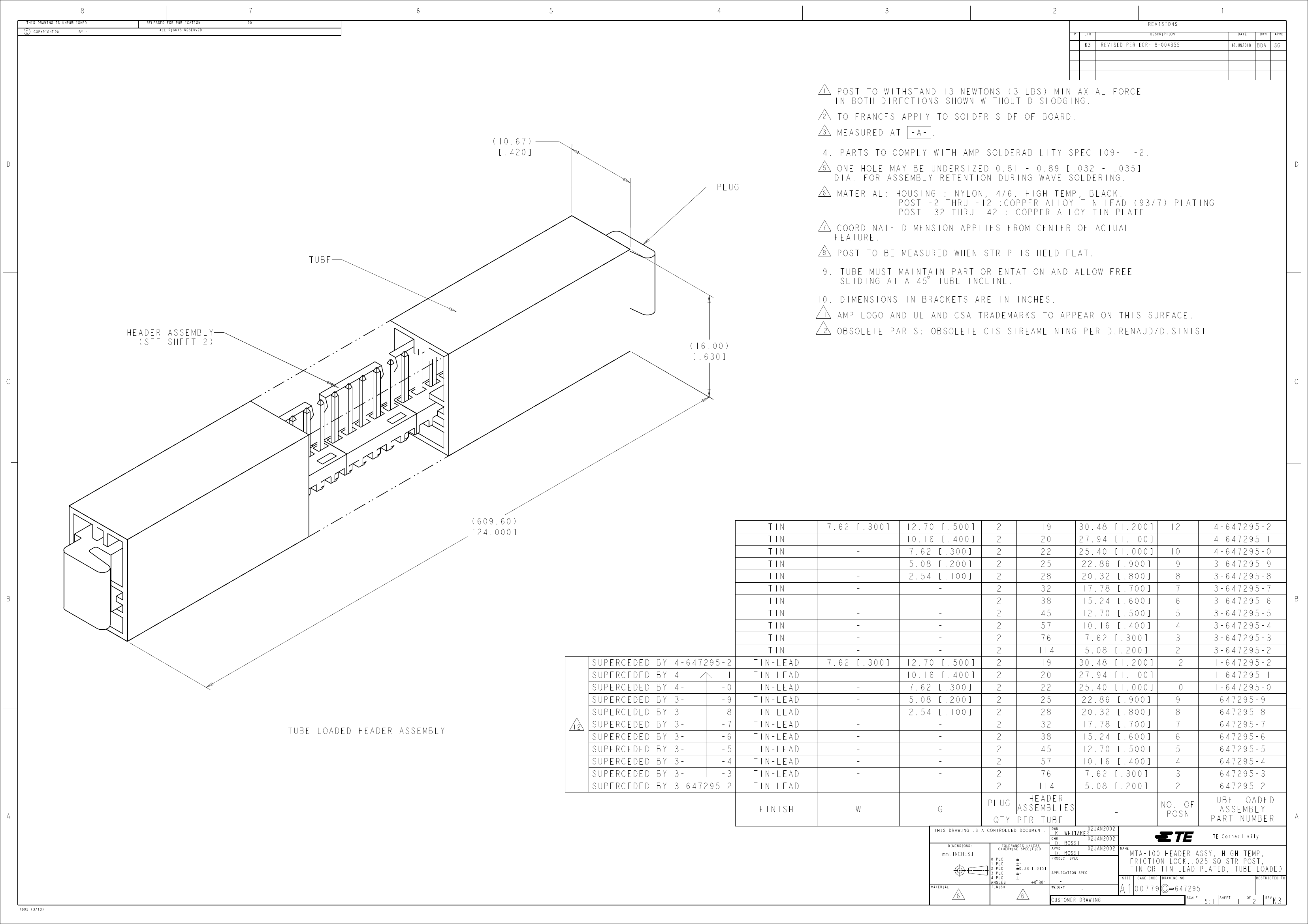

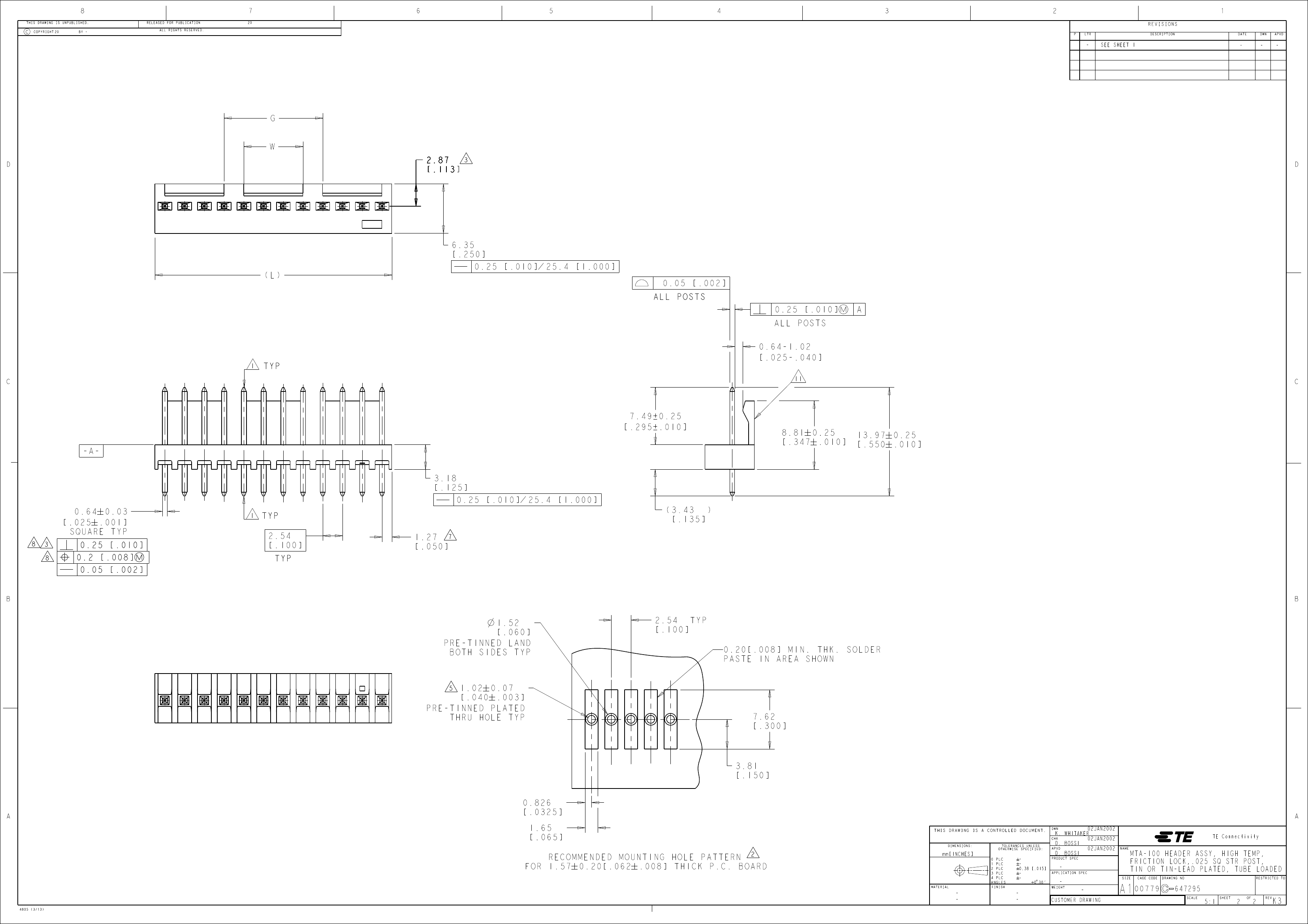

MTA-100 HEADER ASSY, HIGH TEMP,

FRICTION LOCK,.025 SQ STR POST,

TIN OR TIN-LEAD PLATED, TUBE LOADED

CAGE CODE

DRAWING NO

WEIGHT

6

4805 (3/13)

6

-

CUSTOMER DRAWING

A1

00779

RESTRICTED TO

647295

SCALE

5:1

SHEET

1

OF

2

REV

K3
