1734260-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1734260-5

1734260-5: Description1.25 WTB HDR SMT, 5 POS; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1734260-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1734260-5	-	-	View	Buy Now

1734260-5 Overview

1.25 WTB HDR SMT, 5 POS

1734260-5 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1743898634
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Samacsys Description	1.25 WTB HDR SMT, 5 POS
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 06:33:16
YTEOL	8.3
Board mount options	PEG
body width	0.167 inch
subject depth	0.187 inch
body length	0.454 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Durability	10 Cycles
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Panel mounting	NO
Plating thickness	50u inch
polarization key	POLARIZED
Rated current (signal)	3 A
Rated voltage	125 V
Guideline	UL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	32 AWG

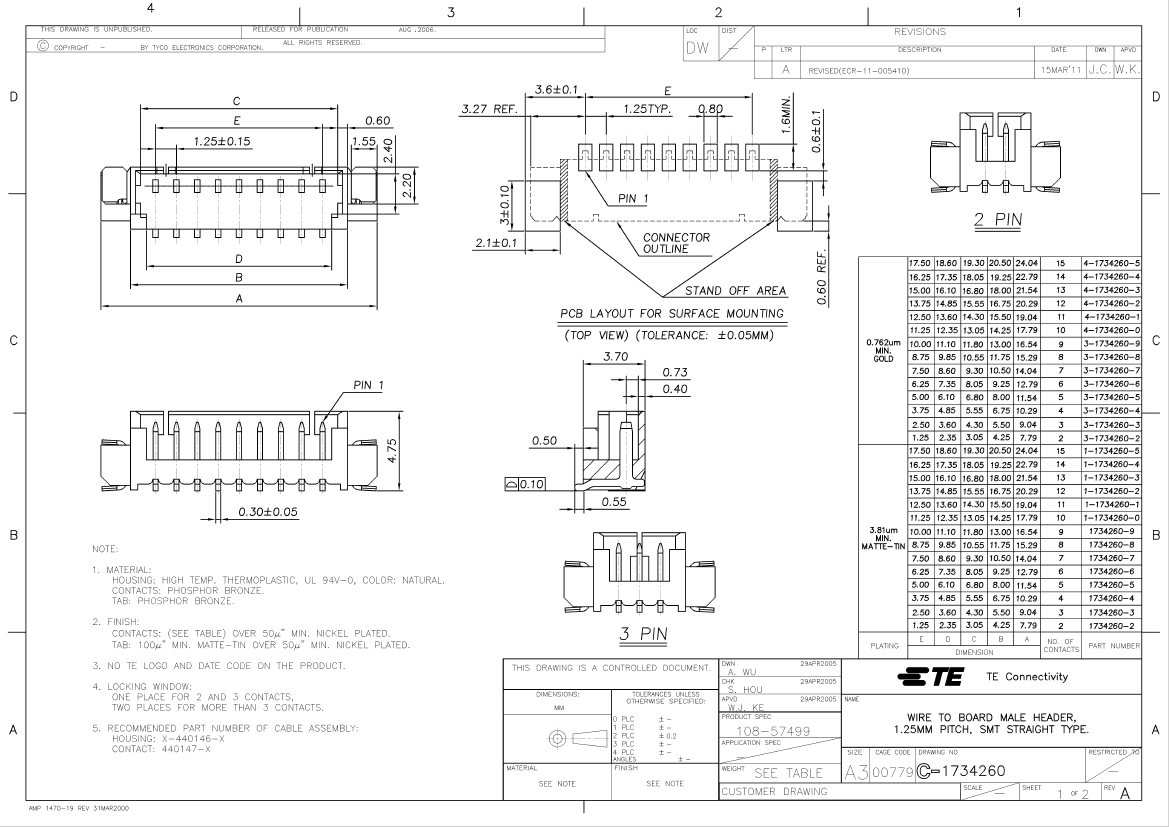

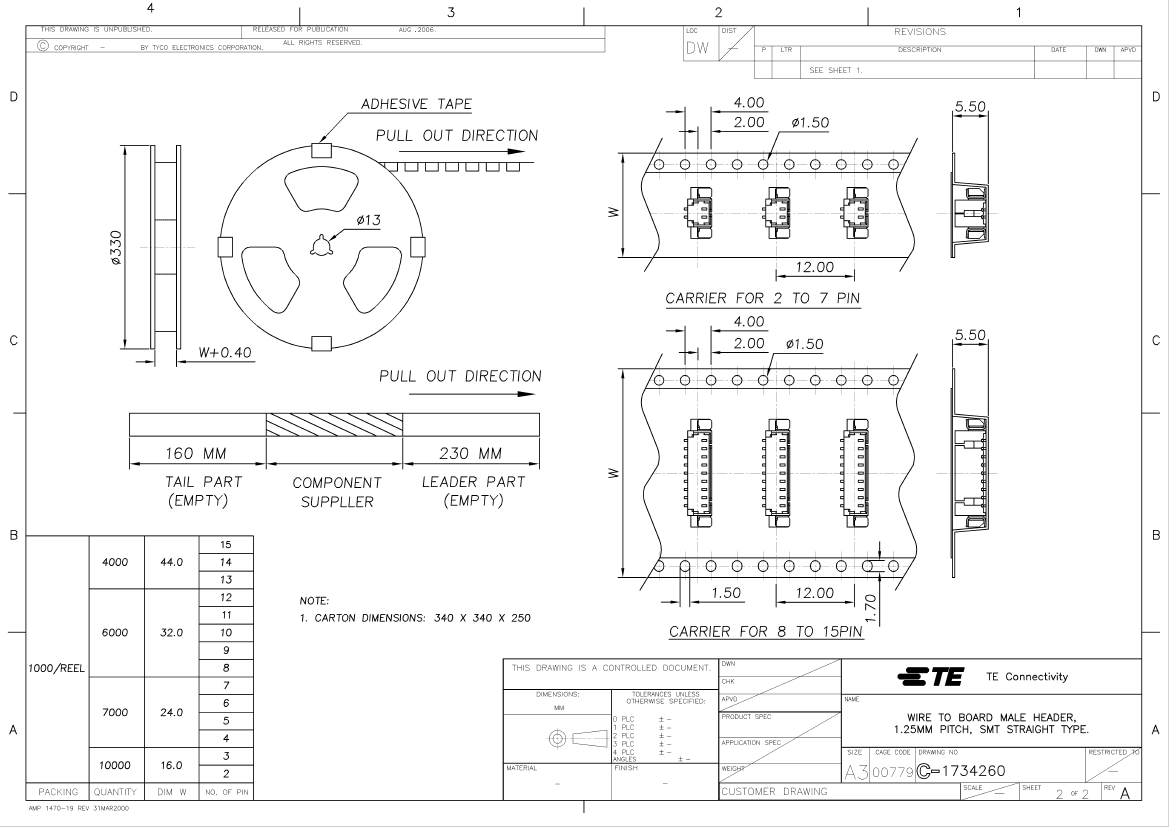

Preview

Download Datasheet
