5102159-4

Description
A/L UNIV HDR 20P RA
CategoryThe connector    The connector
File Size177KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5102159-4 Online Shopping

Suppliers Part Number Price MOQ In stock
5102159-4 - - View Buy Now

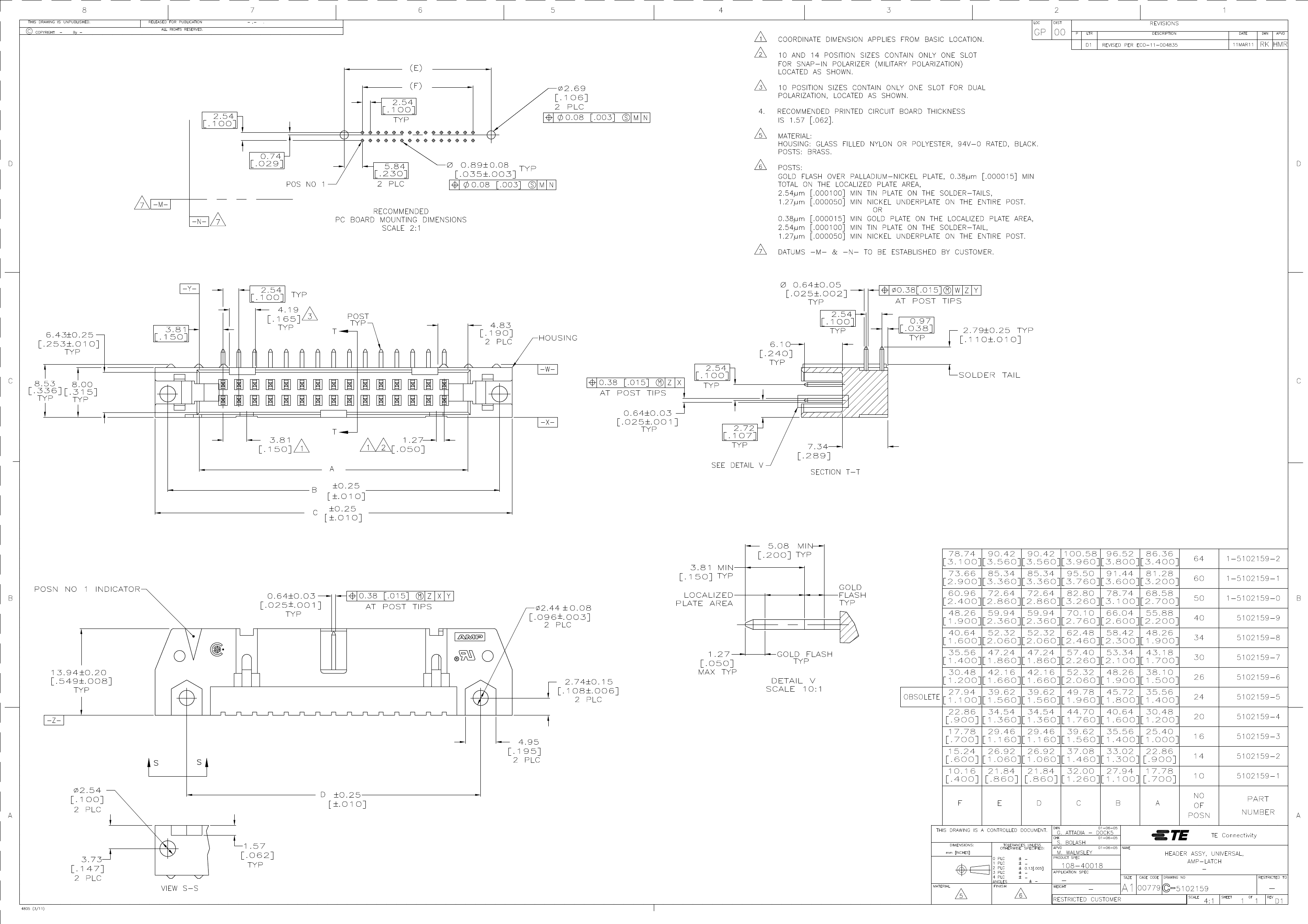

5102159-4 Overview

A/L UNIV HDR 20P RA

5102159-4 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Samacsys Confidence
Samacsys StatusReleased
Samacsys PartID431366
Samacsys Pin Count20
Samacsys Part CategoryUndefined or Miscellaneous
Samacsys Package CategoryOther
Samacsys Footprint NameTYCO_5102159-4
Samacsys Released Date2017-01-12 10:08:23
Is SamacsysN
Other featuresLOW PROFILE, POLARIZED
Board mount optionsHOLE .099-.111
body width0.336 inch
subject depth0.549 inch
body length1.76 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts20
UL Flammability Code94V-0
Base Number Matches1
