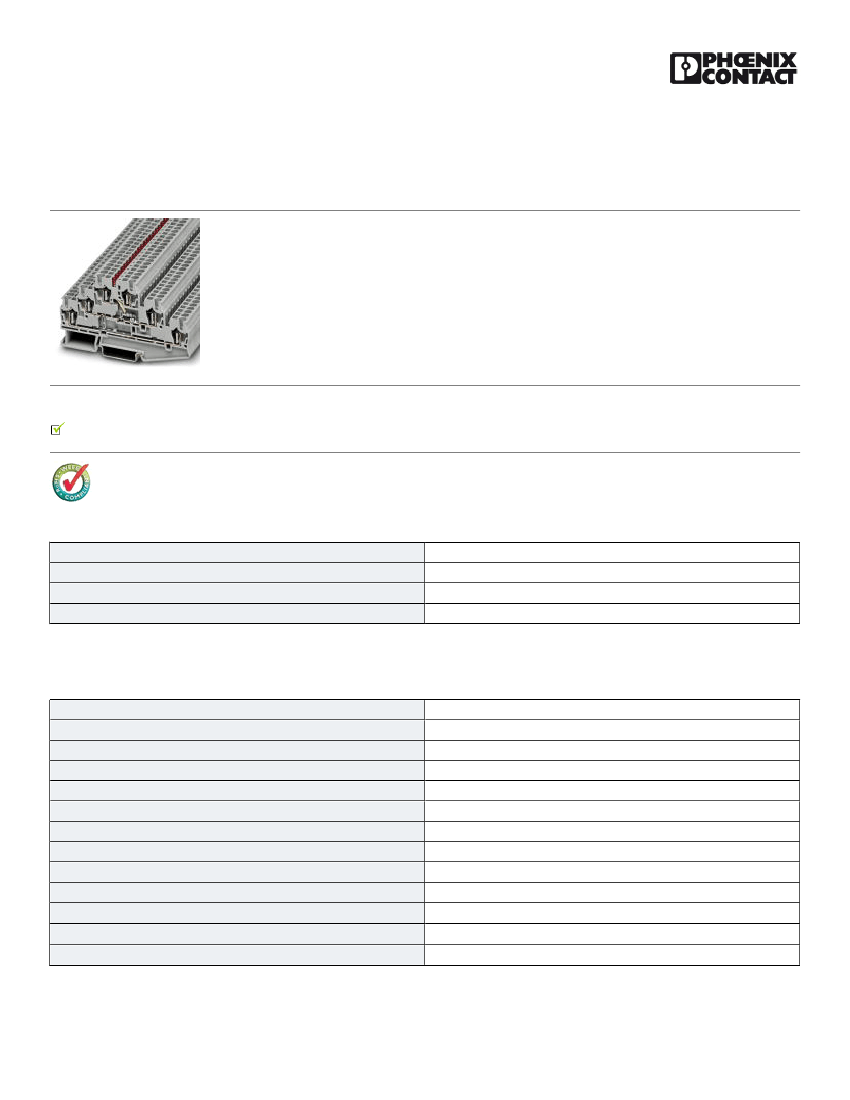

Multi-level terminal block - ST 2,5-3L-LA 24RD/O-M - 3035580
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Multi-level terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product Features
Can be labeled on every level
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
20.0 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Open side panel
3
6
gray
PA
V0
28 A (with 4 mm² conductor cross section)
6 kV
3
III
I
20 A
500 V (the operating voltage is determined by the selected LED version)
ja
19.11.2013 Page 1 / 11
https://www.phoenixcontact.com/us/products/3035580
Multi-level terminal block - ST 2,5-3L-LA 24RD/O-M - 3035580
Technical data
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
5.2 mm
99.5 mm
58 mm
65.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Minimum stripping length
Maximum stripping length
Internal cylindrical gage
Spring-cage connection
8 mm
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141128
27141128
27141128
27141128
27141128
27141128
27141128
ETIM
ETIM 2.0
EC000897
19.11.2013 Page 2 / 11
https://www.phoenixcontact.com/us/products/3035580
Multi-level terminal block - ST 2,5-3L-LA 24RD/O-M - 3035580
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
GOST / GOST
Ex Approvals
Approvals submitted
Approval details
GOST
GOST
Accessories
Accessories
Bridge
19.11.2013 Page 3 / 11
https://www.phoenixcontact.com/us/products/3035580
Multi-level terminal block - ST 2,5-3L-LA 24RD/O-M - 3035580
Accessories

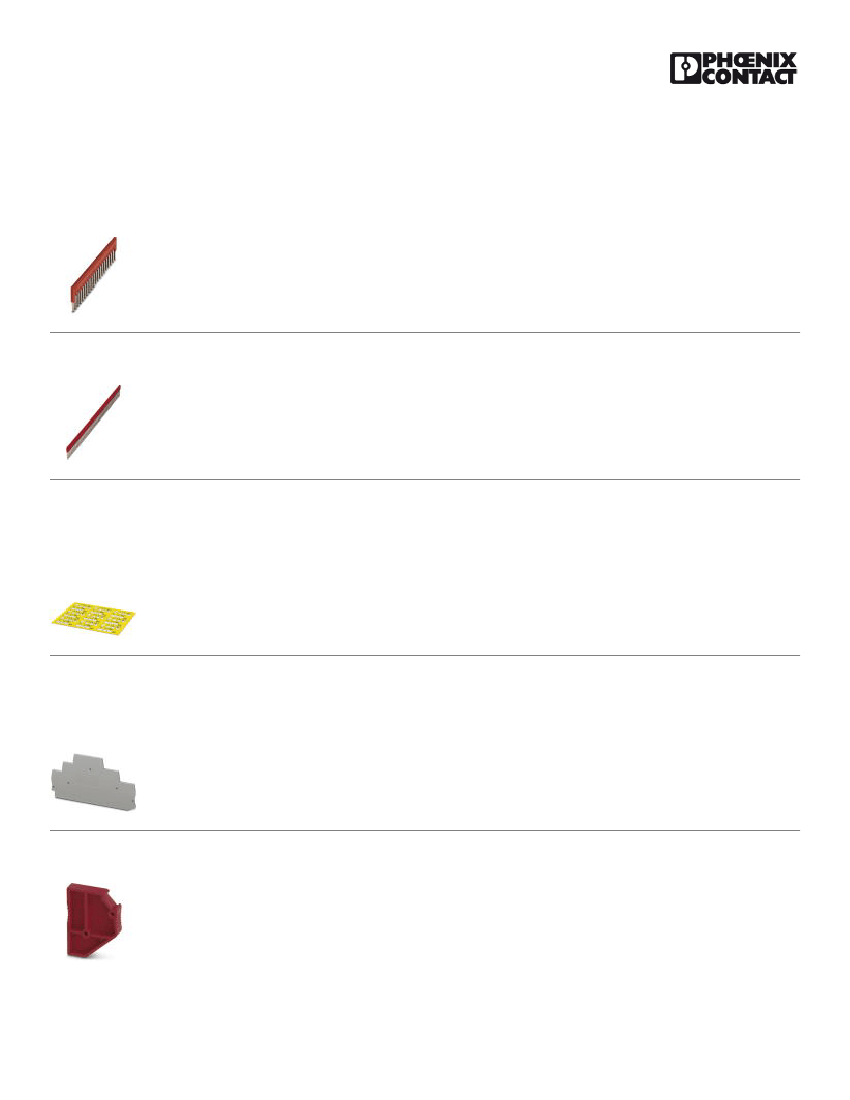

Plug-in bridge - FBS 2-5 - 3030161
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-5 - 3030174
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-5 - 3030187
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-5 - 3030190
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-5 - 3030213
Plug-in bridge, Number of positions: 10, Color: red
19.11.2013 Page 4 / 11
https://www.phoenixcontact.com/us/products/3035580
Multi-level terminal block - ST 2,5-3L-LA 24RD/O-M - 3035580
Accessories
Plug-in bridge - FBS 20-5 - 3030226
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge - FBS 50-5 - 3038930
Plug-in bridge, Number of positions: 50, Color: red
Documentation
Mounting material - ST-IL - 3039900
Operating decal for the ST terminal block
End cover
End cover - D-ST 2,5-3L - 3036660
End cover, Length: 99.5 mm, Width: 2.2 mm, Height: 50.3 mm, Color: gray
Spacer plate - DP PS-5 - 3036725
Spacer plate, Color: red
19.11.2013 Page 5 / 11
