Datasheet> All Categories > The connector> The connector> 3-87977-9

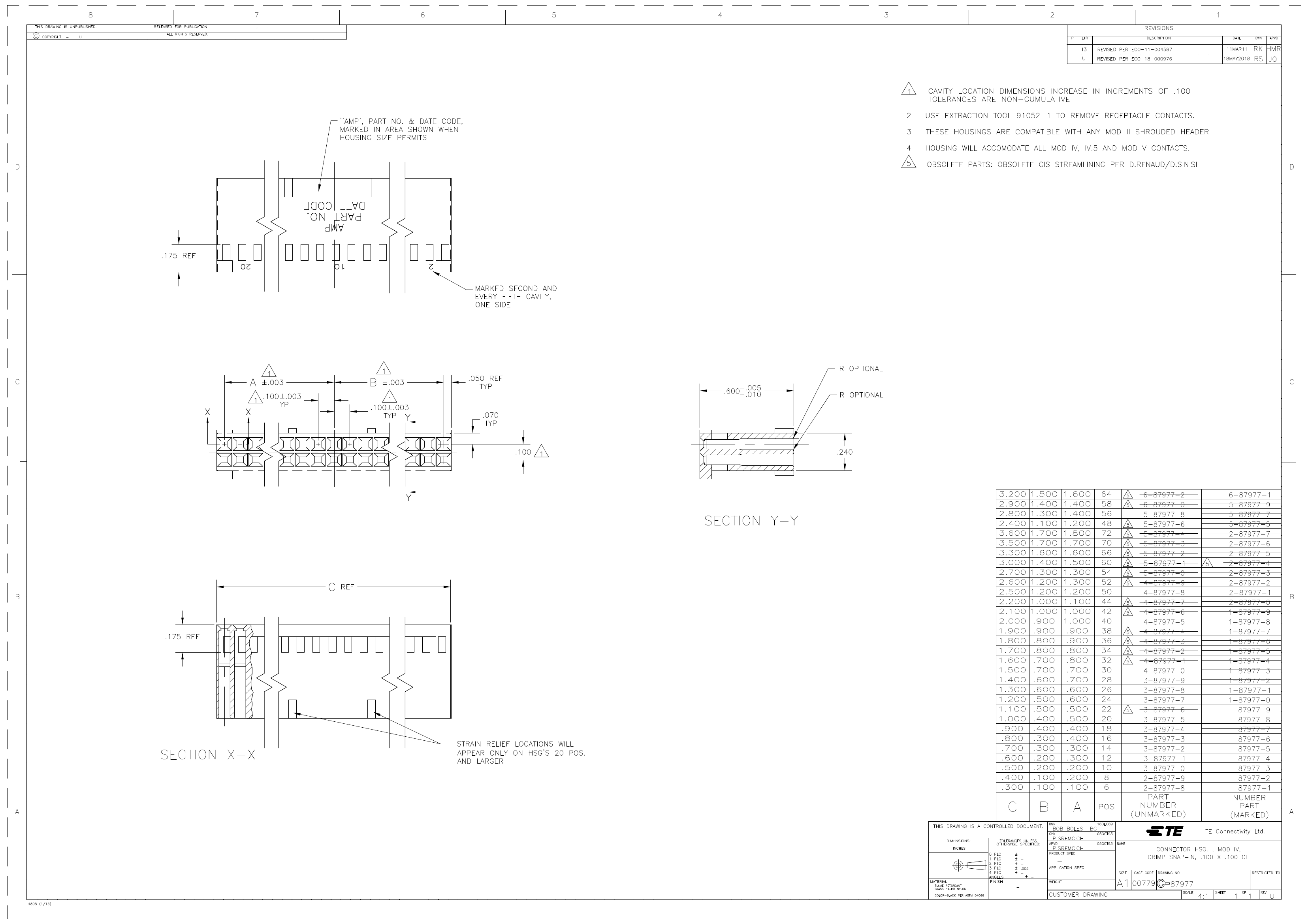

Preview

3-87977-9: Description28 MODIV HSG COMP DR .100 POL; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-87977-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-87977-9	-	-	View	Buy Now

3-87977-9 Overview

28 MODIV HSG COMP DR .100 POL

3-87977-9 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	POLARISED, AMPMODU
body width	0.24 inch
subject depth	0.6 inch
body length	1.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Rated current (signal)	3 A
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	28
Maximum wire diameter	20 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

3-87977-9 Related Products

	3-87977-9	10121750-0202088LF	2-87977-1	4-87977-8
Description	28 MODIV HSG COMP DR .100 POL	Board Connector	50 MODIV HSG DR MRKD .100 POL	50 MODIV HSG COMP DR .100 POL
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	POLARISED, AMPMODU	TERMINAL PITCH FOR POWER CONTACTS IS 6.35	POLARISED, AMPMODU	POLARISED, AMPMODU
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	YES	NO	NO
Installation type	CABLE	BOARD	CABLE	CABLE
Number of rows loaded	2	4	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	PRESS FIT	CRIMP	CRIMP
Total number of contacts	28	18	50	50
Brand Name	AMP	-	AMP	AMP
Is it lead-free?	Lead free	-	Lead free	Lead free
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Factory Lead Time	11 weeks	-	8 weeks	9 weeks
body width	0.24 inch	-	0.24 inch	0.24 inch
subject depth	0.6 inch	-	0.6 inch	0.6 inch
body length	1.4 inch	-	2.5 inch	2.5 inch
Body/casing type	PLUG	-	PLUG	PLUG
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Insulator color	BLACK	-	BLACK	BLACK
insulator material	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Rated current (signal)	3 A	-	3 A	3 A
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Maximum wire diameter	20 AWG	-	20 AWG	20 AWG
Minimum wire diameter	32 AWG	-	32 AWG	32 AWG
Base Number Matches	1	-	1	1
