803-43-078-30-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 803-43-078-30-001000

803-43-078-30-001000: Descriptionconn socket dbl 78pos .100" smd; CategoryThe connector socket; File Size748KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-43-078-30-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-43-078-30-001000	-	-	View	Buy Now

803-43-078-30-001000 Overview

conn socket dbl 78pos .100" smd

803-43-078-30-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP78
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e3
Number of contacts	78
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

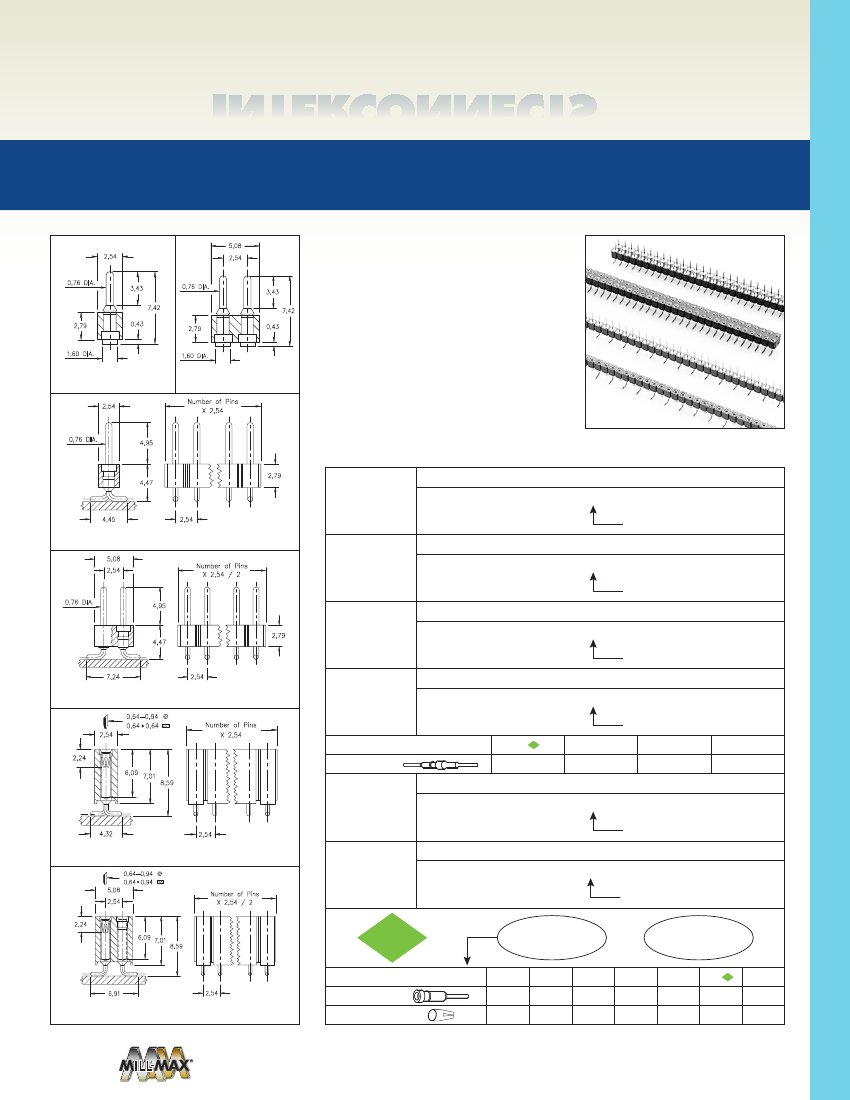

SERIES 349, 449, 800, 801, 802, 803 • 2,54 GRID (0,76 DIA. PINS),

SURFACE MOUNT HEADERS & SOCKETS • SINGLE AND DOUBLE ROW STRIPS

5,08

•

Series 349 & 449 use MM #4956-1 pins. See

page 218 for details

215 for details

2,54

0,76 DIA.

3,43

7,42

0,76 DIA.

•

Series 800 & 802 use MM #7007 pins. See page

3,43

7,42

2,79

0,43

•

Series 801 & 803 use MM #1304 receptacles

•

Receptacles use Hi-Rel, 6-finger BeCu #47

2,79

0,43

and accept pin diameters from 0,64 - 0,94 and

0,64 square pins. See page 177 for details

contact rated at 4.5 amps. See page 256 for

details

suitable for all soldering operations

1,60 DIA.

FIG. 1

2,54

FIG. 2

Number of Pins

X 2,54

•

Insulators are high temperature thermoplastic,

0,76 DIA.

4,95

ORDERING INFORMATION

2,79

4,47

Series 349...560

4,45

2,54

FIG. 3

5,08

2,54

Coplanarity 0,13.

For pin counts >10

positions, consult

Technical Support.

Number of Pins

X 2,54 / 2

FIG. 1

Series 449...560

Single Row Surface Mount Header

349-10-1_ _-00-560000

02-64

Specify number of pins

FIG. 2

Series 800...001

2,79

Double Row Surface Mount Header

449-10-2_ _-00-560000

04-64

Specify number of pins

0,76 DIA.

4,95

4,47

FIG. 3

Series 802...001

Single Row Surface Mount Header

800-10-0_ _-30-001000

03-64

Specify number of pins

7,24

2,54

FIG. 4

0,64-0,94

2,54

0,64

Coplanarity 0,13.

For pin counts >20

positions, consult

Technical Support.

Number of Pins

X 2,54

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Double Row Surface Mount Header

802-10-0_ _-30-001000

04-72

Specify number of pins

0,25μm

2,24

6,09

7,01

8,59

Series 801...001

FIG. 5

4,32

2,54

Single Row Surface Mount Socket

801-43-0_ _-30-001000

03-50

5,08

2,54

0,64-0,94

0,64

0,94

FIG. 6

Number of Pins

X 2,54 / 2

Specify number of pins

RoHS - 2

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2,24

6,09

7,01

8,59

2011/65/EU

XX=Plating Code

See Below

5,08μm

Sn/Pb

6,91

2,54

FIG. 6

Coplanarity 0,13.

For pin counts >20

positions, consult

Technical Support.

SPECIFY PLATING CODE XX=

Sleeve

(Pin)

Contact

(Clip)

5,08μm

0,76μm

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 59 | INTERCONNECTS

FIG. 5

Coplanarity 0,13.

For pin counts >10

positions, consult

Technical Support.

Specify number of pins

Series 803...001

Double Row Surface Mount Socket

803-XX-_ _ _-30-001000
