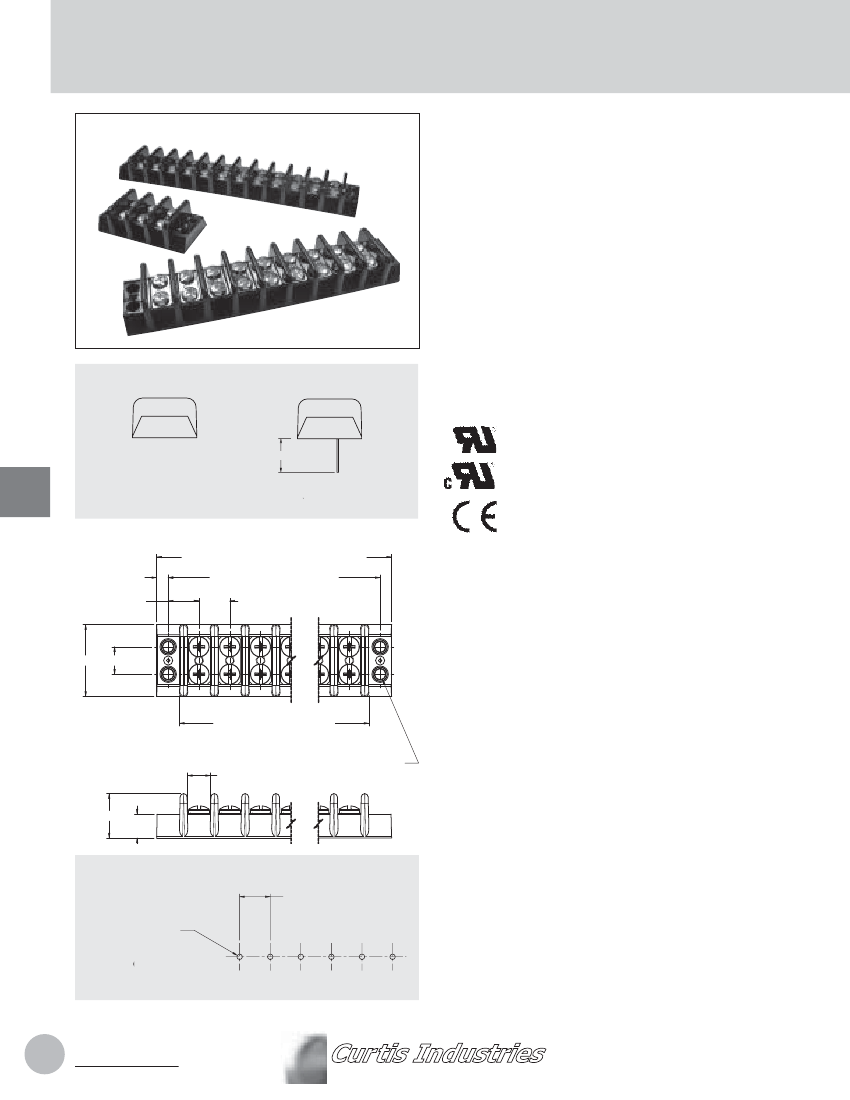

Series 5600
.563" (14.29mm) Center-to-Center Spacing
Features:
Durable, Hi-Temp, phenolic is self-extinguishing, resists
breakage and conforms to UL94V-0
Terminal Flexibility is ideal for surface mount, sub-panel or
chassis connections. One thru 22 terminals. 9/16" center-to-
center spacing.
Economical Closed-Back Design does not require costly
insulation strip
Broad Wire Range using 8-32 or 10-32 external twin
screws, UL recognized for No. 22 AWG to No. 10 AWG.
Variations include double solder lug, single solder lug, wire
wrap and printed circuit pin
UL Electrical Ratings
50Amp up to 600VAC dependent on options
Field Wiring to 40A
Dual Row
Series 5600 Variations
Factory Wiring to 50A
Recognition
Various terminal types are UL recognized and CSA certified.
UL Standard 1059,
Guide No. XCFR2
CSA Guide
22.2 No. 158
0 = Flush Mount
11/16" ±.032
1 = Turret Type Solder Terminal
T
BARRIER STYLE
Series 5600 Dimensions
"A" OVERALL DIMENSION W/MTG ENDS
.21
.563
"B" MOUNTING DIMENSION
.563
Designed to meet IEC 947-7-1
e
at o s:
1.311
.500
"C" OVERALL DIMENSION
BARRIERS BOTH SIDES
.420
4X Ø.208
MOUNTING HOLES
.810
.438
PC BOARD DRILLING DIMENSIONS
.5625
Typ.
2-11 Terminals
Ø.079
12-22 Terminals
T
Ø.093
Center-to-Center Spacing:
.563" (14.29mm)
Wire Range:
No. 22AWG to No. 8AWG (No. 8 with ring lug
for #10 screw only)
No. of Terminals:
1 thru 22
Voltage Rating:
600V
Tightening Torque:
16 in.-lbs. with #8 screws
20 in.-lbs. with #10 screws
Current Rating:
50A with #8 or #10 screw and ring lug
40A with #10 screw
35A with #8 Screw
(Options may affect current rating)
Housing:
Material
Phenolic
Continuous Use
Temp. (UL Index)
150°C (302°F)
Flammability Rating
94V-0
Water Absorption
(24 hrs. % wt. gain) .1%
Breakdown Voltage:
Terminal - Terminal
7,500 Vrms
Terminal - Ground
6,000 Vrms
36
www.curtisind.com
Curtis Industries
A Division of Powers Holdings, Inc.
ci c tions su ct to c n .
Dimensions are shown for
reference purposes only.

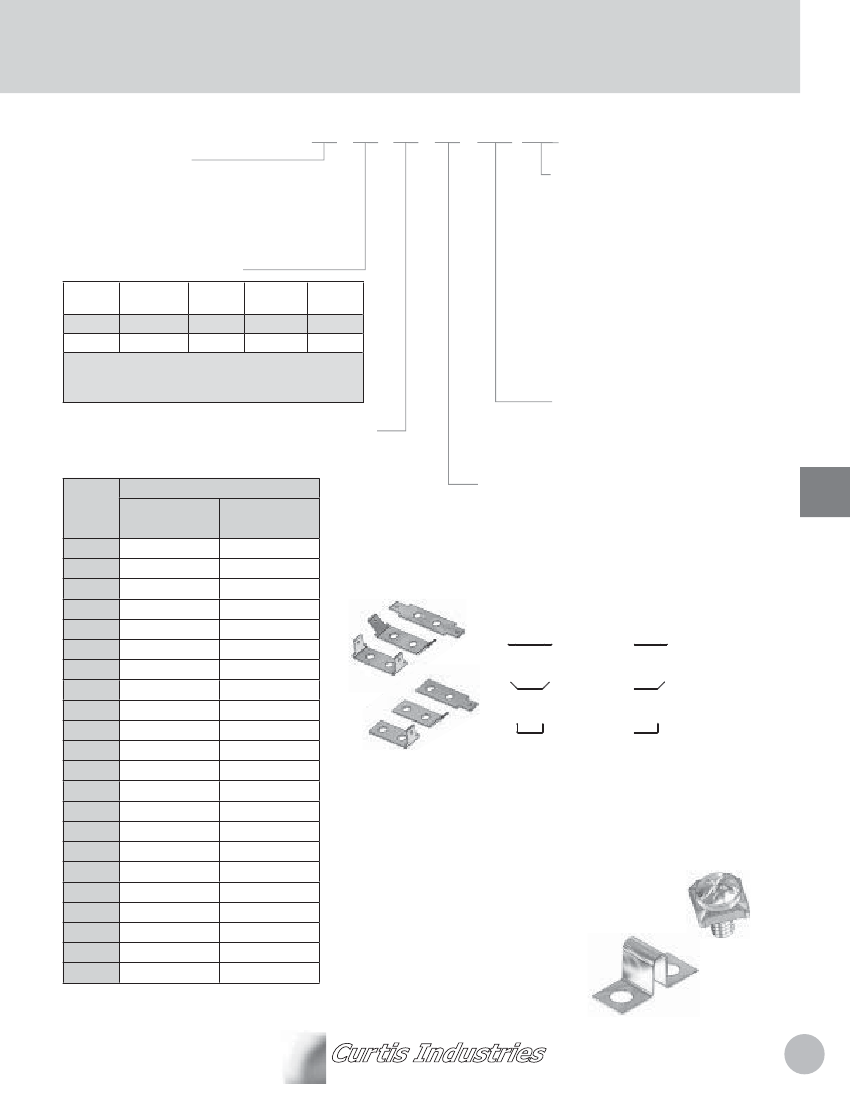

How to Order
MOLDING DESIGN
]
1 = Barriers Both Sides
2 = w/ Mounting Ends
3 = Y Pin with Barriers
4 = Y Pin with Mounting Ends
5 Thru 9 to be assigned.
56 0 0 0 0 00 0
[
SPECIALS OR
OPTIONAL DESIGNS
0 = None
1 = Double Tab, Flat (TB91)
2 = Double Tab, 45° Bend (TB92)
3 = Double Tab, 90° Bend (TB93)
7 = Single Tab, Flat (TB97)
8 = Single Tab, 45° Bend (TB98)
9 = Single Tab, 90° Bend (TB99)
A thru Z to be assigned
by engineering for special
con gurations (optional
umper available)
[
NUMBER OF POLES AVAILABLE
Available
01-22 w/ Mounting Ends
01-22 w/ Barriers Both Ends
[
SCREW TYPE
0 = Binder Head, Combo Slot, Zinc Plated, Steel
2 = Binder Head, Combo Slot, Nickel Plated, Brass
4 = Wire Clamp Sems, Combo Slot, Zinc
Plated, Steel
6 = Quick Connects Tabs Supplied w/ Binder Head
(see special options)
TERMINATION DESIGN
]
Part No.
Digit
0=
1=
Terminal
Plate Type
STEEL
STEEL
Screw
Type
STEEL
**BRASS
Approval
UR/cUR
UR
*Field/
Factory
2
1
** SEMS NOT AVAILABLE IN BRASS
*1 = FACTORY WIRING ONLY
2 = FACTORY & FIELD WIRING
Dual Row
SCREW SIZE
]
0 = 8-32 Thread
1 = 10-32 Thread
Dimensions
Number
of
Terminals
“A” (Min-Max)
Overall Dim.
w/ Mounting Ends
“B” (Min-Max)
Mounting Dim.
BARRIER STYLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1.551–1.539
2.116–2.100
2.680–2.660
3.245–3.221
3.809–3.781
4.374–4.342
4.938–4.902
5.503–5.463
6.067–6.023
6.632–6.584
7.196–7.144
7.761–7.705
8.325–8.265
8.888–8.828
9.452–9.388
10.017–9.949
10.581–10.509
11.146–11.070
11.710–11.630
12.273–12.193
12.837–12.753
13.402–13.314
1.131–1.119
1.694–1.682
2.258–2.242
2.823–2.803
3.387–3.363
3.952–3.924
4.516–4.484
5.081–5.045
5.645–5.605
6.210–6.166
6.774–6.726
7.339–7.287
7.903–7.847
8.468–8.408
9.030–8.970
9.595–9.531
10.159–10.091
10.724–10.652
11.288–11.212
11.853–11.773
12.415–12.335
12.978–12.898
Double Sided
TB91
Single Sided
TB97
TB92
TB93
TB98
TB99
Series 5600 Accessories
QUICK CONNECT TERMINALS
.250" x .032" quick connect tabs available in 6 different styles. Tin-plated brass
tabs are held in place by terminal screws. Terminal blocks can accommodate 1
to 6 terminations per pole. Factory assembled or shipped bulk.
WIRE CLAMPS
Wire clamp captivated screws eliminate the need for lugs.
Available for both 8-32 & 10-32 thread options, these screws
accept up to No. 10AWG wire and may be factory installed
or shipped bulk.
TERMINAL BLOCK JUMPERS
Jumpers constructed of plated brass
permit connections of 2 poles
Dimensions shown are ± 0.030"
Dimensions are in inches and millimeters
unless otherwise speci ed.
Values in parentheses are metric equivalents.
Curtis Industries
A Division of Powers Holdings, Inc.
1-800-657-0853
37
