1-1546105-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1-1546105-4

1-1546105-4: Description14 POS 5.08MM LH PLUG BLCK; CategoryThe connector terminals; File Size234KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1546105-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1546105-4	-	-	View	Buy Now

1-1546105-4 Overview

14 POS 5.08MM LH PLUG BLCK

1-1546105-4 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	14
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

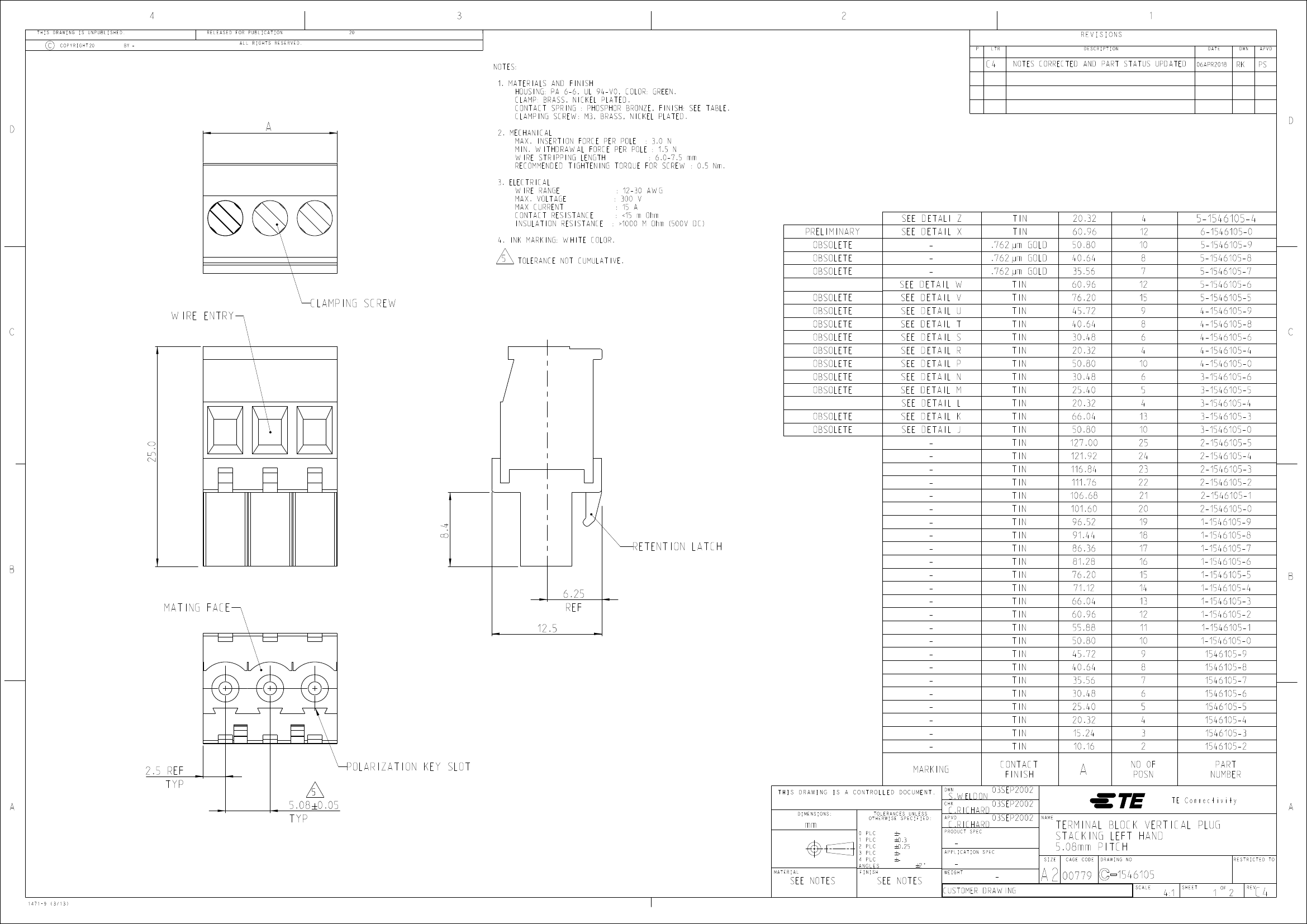

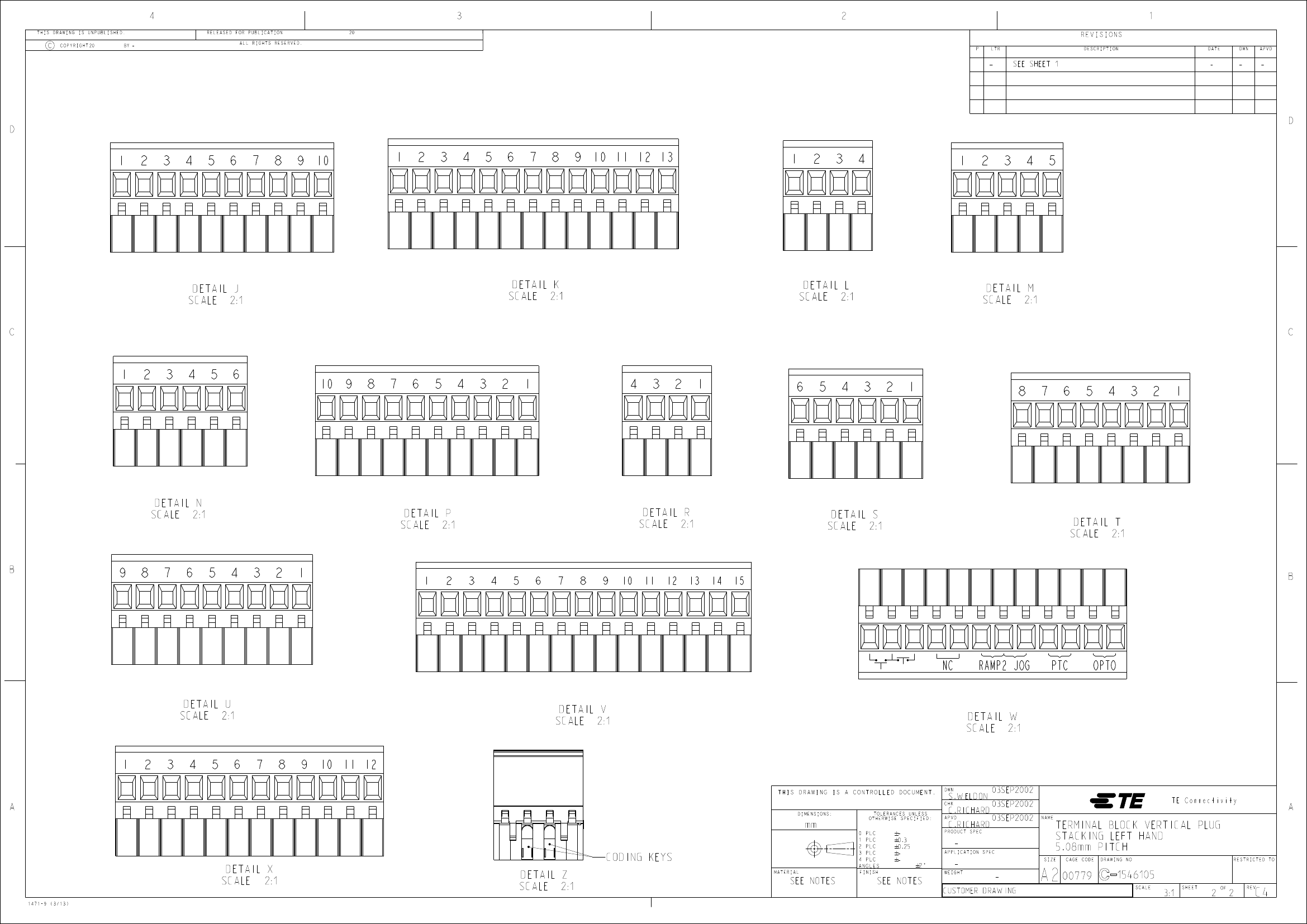

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

NOTES:

1. MATERIALS AND FINISH

HOUSING: PA 6-6, UL 94-V0, COLOR: GREEN.

CLAMP: BRASS, NICKEL PLATED.

CONTACT SPRING : PHOSPHOR BRONZE, FINISH: SEE TABLE.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

2. MECHANICAL

MAX. INSERTION FORCE PER POLE : 3.0 N

MIN. WITHDRAWAL FORCE PER POLE : 1.5 N

WIRE STRIPPING LENGTH

: 6.0-7.5 mm

RECOMMENDED TIGHTENING TORQUE FOR SCREW : 0.5 Nm.

3. ELECTRICAL

WIRE RANGE

MAX. VOLTAGE

MAX CURRENT

CONTACT RESISTANCE

INSULATION RESISTANCE

12-30 AWG

300 V

15 A

<15 m Ohm

>1000 M Ohm (500V DC)

NOTES CORRECTED AND PART STATUS UPDATED

06APR2018

4. INK MARKING: WHITE COLOR.

PRELIMINARY

OBSOLETE

SEE DETAIL X

SEE DETALI Z

.762µm GOLD

TIN

CONTACT

FINISH

03SEP2002

NAME

TIN

60.96

50.80

35.56

60.96

76.20

45.72

40.64

30.48

20.32

50.80

30.48

25.40

20.32

50.80

66.04

40.64

20.32

5-1546105-4

6-1546105-0

5-1546105-9

5-1546105-8

5-1546105-7

5-1546105-6

5-1546105-5

4-1546105-9

4-1546105-8

4-1546105-6

4-1546105-4

4-1546105-0

3-1546105-6

3-1546105-5

3-1546105-4

3-1546105-0

3-1546105-3

2-1546105-5

2-1546105-4

2-1546105-3

2-1546105-2

2-1546105-1

2-1546105-0

1-1546105-9

1-1546105-8

1-1546105-7

1-1546105-6

1-1546105-5

1-1546105-4

1-1546105-3

1-1546105-2

1-1546105-1

1-1546105-0

1546105-9

1546105-8

1546105-7

1546105-6

1546105-5

1546105-4

1546105-2

PART

NUMBER

TE Connectivity

TOLERANCE NOT CUMULATIVE.

SEE DETAIL W

SEE DETAIL V

SEE DETAIL U

SEE DETAIL T

SEE DETAIL S

SEE DETAIL R

SEE DETAIL P

SEE DETAIL N

SEE DETAIL M

SEE DETAIL L

SEE DETAIL K

SEE DETAIL J

NO 0F

POSN

WIRE ENTRY

CLAMPING SCREW

25.0

OBSOLETE

127.00

121.92

116.84

111.76

106.68

101.60

96.52

91.44

86.36

81.28

76.20

71.12

66.04

60.96

55.88

50.80

45.72

40.64

35.56

30.48

20.32

15.24

10.16

25.40

8.4

RETENTION LATCH

MATING FACE

12.5

6.25

REF

TIN

1546105-3

2.5 REF

TYP

POLARIZATION KEY SLOT

5.08 0.05

TYP

MARKING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.WELDON

C.RICHARD

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.25

PRODUCT SPEC

C.RICHARD

APPLICATION SPEC

2°

SEE NOTES

WEIGHT

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK VERTICAL PLUG

STACKING LEFT HAND

5.08mm PITCH

CAGE CODE DRAWING NO

RESTRICTED TO

1546105

SCALE

1471-9 (3/13)

4:1

SHEET

REV
