4114T-2-1202BCB

Description
Array/Network Resistor, Isolated, Thin Film, 0.2W, 12000ohm, 50V, 0.1% +/-Tol, -25,25ppm/Cel, 7726,
CategoryPassive components    The resistor
File Size341KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

4114T-2-1202BCB Overview

Array/Network Resistor, Isolated, Thin Film, 0.2W, 12000ohm, 50V, 0.1% +/-Tol, -25,25ppm/Cel, 7726,

4114T-2-1202BCB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid770308794
Reach Compliance Codenot_compliant
ECCN codeEAR99
structureMolded
JESD-609 codee0
Lead length3.43 mm
lead spacing2.54 mm
Network TypeIsolated
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height4.57 mm
Package length19.43 mm
Package formDIP
Package width6.71 mm
Rated power dissipation(P)0.2 W
resistance12000 Ω
Resistor typeARRAY/NETWORK RESISTOR
series4100T
size code7726
technologyTHIN FILM
Temperature Coefficient-25,25 ppm/°C
Terminal surfaceTin/Lead (Sn/Pb)
Tolerance0.1%
Operating Voltage50 V
Features
“Termination” option)
n
Custom circuits available per factory
n
RoHS compliant* (see How to Order
For information on thin film applications,
download Bourns’ Thin Film Application Note.
This series is currently available but
not recommended for new designs.

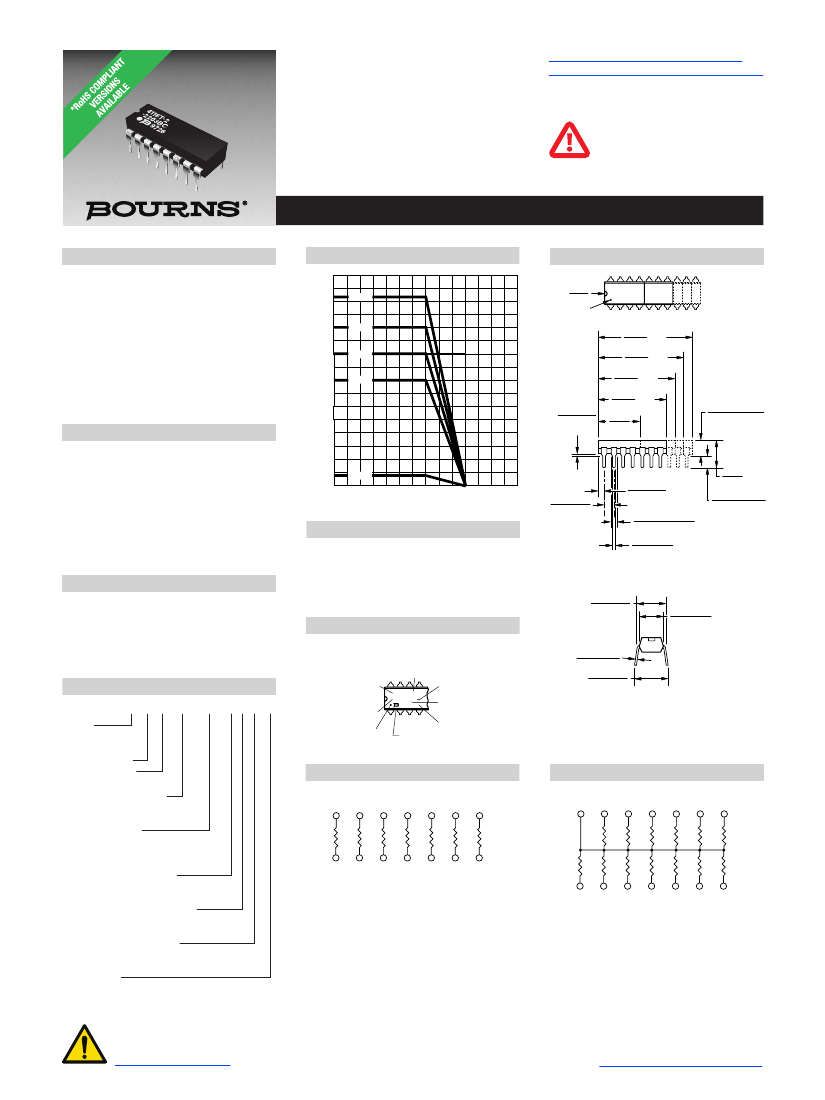

4100T - Thin Film Molded DIP
Product Characteristics
Resistance Range .......50 to 100K ohms
Resistance Tolerance
......................... ±0.1 %, ±0.5 %, ±1 %
Temperature Coefficient
.................±100 ppm/°C, ±50 ppm/°C,
±25 ppm/°C
Temperature Range
................................-55 °C to +125 °C
Insulation Resistance
................ 10,000 megohms minimum
TCR Tracking.........................±5 ppm/°C
Maximum Operating Voltage ...........50 V
Environmental Characteristics
TESTS PER MIL-STD-202 ......
∆R MAX.
Thermal Shock ............................. 0.1 %
Low Temperature Operation ....... 0.25 %
Short Time Overload..................... 0.1 %
Resistance to Soldering Heat ....... 0.1 %
Moisture Resistance ..................... 0.1 %
Mechanical Shock ...................... 0.25 %
Life ................................................ 0.5 %
High Temperature Storage ........... 0.2 %
Low Temperature Storage ............ 0.1 %
Physical Characteristics
Lead Frame Material
.........................Copper, solder coated
Body Material Flammability
......................... Conforms to UL94V-0
Body Material..................Novolac Epoxy
How To Order
PACKAGE
Power Temp. Derating Curve
Package
POWER TEMPERATURE
DERATING CURVE (4100T-1)
3.00
2.75
2.50
2.25
2.00
1.75
1.50
1.25
1.00
0
4108T
25
70
125
150
AMBIENT TEMPERATURE (
ϒ
C )
4120T
4118T
4116T
4114T
Product Dimensions
.635
(.025)
PIN #1 REF.
27.05
MAX.
(1.065)
24.51
MAX.
(.965)
21.97
MAX.
(.865)
19.43
MAX.
(.765)
11.81
(.465)
MAX.
WATTS
.89 ± .25
(.035 ± .010)
TYP.
4.57 + .12/ - .28
(.180 + .005/ - .011)
Package Power Rating at 70 °C
4108T .....................................1.09 watts
4114T......................................2.00 watts
4116T......................................2.25 watts
4118T......................................2.50 watts
4120T .....................................2.80 watts
Typical Part Marking
Represents total content. Layout may
vary.
PART
NUMBER
RESISTANCE
CODE (4 DIGIT)
PIN ONE
INDICATOR
CIRCUIT
4116T-2-
-2203BC
YYWW
2.54 ± .25
(.100 ± .010*)
TYP.
NON-ACCUM.
2.03 ± .12
(.080 ± .005)
1.65 + .12/ - .07
(.065 + .005/ - .003)
.438 ± .050
TYP.
(.019 ± .002)
8.40
MAX.
(.331)
3.43 + .38/ - .25
(.135 + .015/ - .010)
7.87 ± .25
(.310 ± .010)
TO OUTSIDE
WHEN PINS
ARE PARALLEL
.254 ± .050
(.010 ± .002)
8.64 ± .50
(.340 ± .020)
6.71 ± .10
(.264 ± .004)
TC CODE
ABSOLUTE
TOLERANCE CODE
DATE CODE
41 16 T - 2 - 2222 F A B __
Governing dimensions are in metric. Dimensions in parentheses
are inches and are approximate.
*Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
Model
(41 = Molded
DIP)
Number of Pins
Physical Config.
• T = Thin Film
Electrical Configuration
• 2 = Bussed
• 1 = Isolated
Resistance Code
• First 3 digits are significant
• Fourth digit represents the
number of zeros to follow.
Absolute Tolerance Code
• B = ±0.1 %
• F = ±1 %
• D = ±0.5 %
Temperature Coefficient Code
• A = ±100 ppm/°C • C = ±25 ppm/°C
• B = ±50 ppm/°C
Ratio Tolerance (Optional)
• A = ±0.05 % to R1 • B = ±0.1 % to R1
• D = ±0.5 % to R1
Terminations
• L = Tin-plated (RoHS compliant version)
• Blank = Tin/Lead-plated
Consult factory for other available options.
MANUFACTURER'S
TRADEMARK
Isolated Resistors (1 Circuit)
Available in 8, 14, 16, 18,
001 CIRCUIT
Pin
and 20
ISOLATED RESISTORS
001 CIRCUIT
ISOLATED RESISTORS
14
14
88
Bussed Resistors (2 Circuit)
Available in 8, 14, 16, 18, and 20 Pin
002 CIRCUIT
BUSSED RESISTORS
002 CIRCUIT
BUSSED RESISTORS
14
14
88
11
77
11
77
These models incorporate 4, 7, 8, 9, or
10 thin-film resistors of equal value, each
connected between a separate pin.
Power Rating per Resistor......... 0.2 watt
Resistance Range ......50 to 100K ohms
These models incorporate 7, 13, 15, 17,
or 19 thin-film resistors of equal value,
each connected by a common pin.
Power Rating per Resistor....... 0.12 watt
Resistance Range ........50 to 50K ohms
REV. 08/20
WARNING Cancer and Reproductive Harm
www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth
on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
