77313-824-12 datasheet, PDF - EEWORLD Datasheet

77313-824-12: Descriptionhdr str DR .100 DP; CategoryThe connector; File Size196KB，2 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric View All

77313-824-12 Overview

hdr str DR .100 DP

Parameter Name	Attribute value
Datasheets

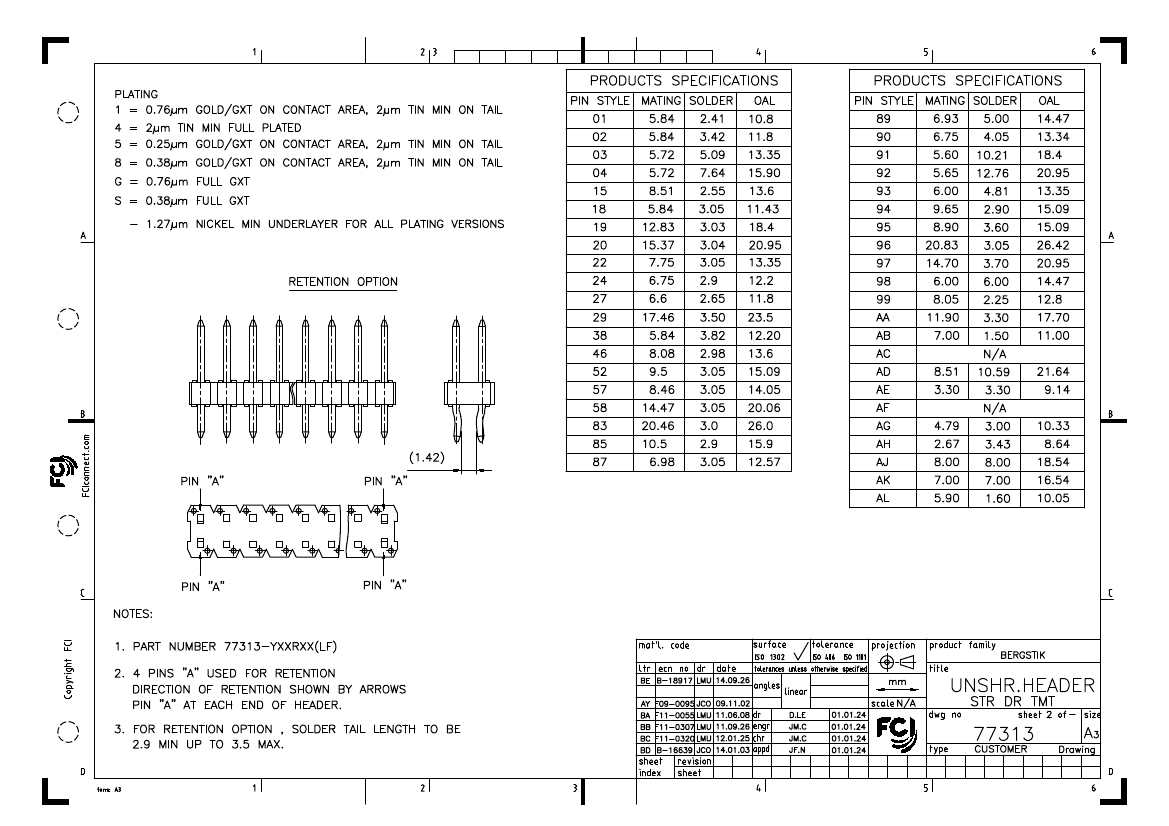

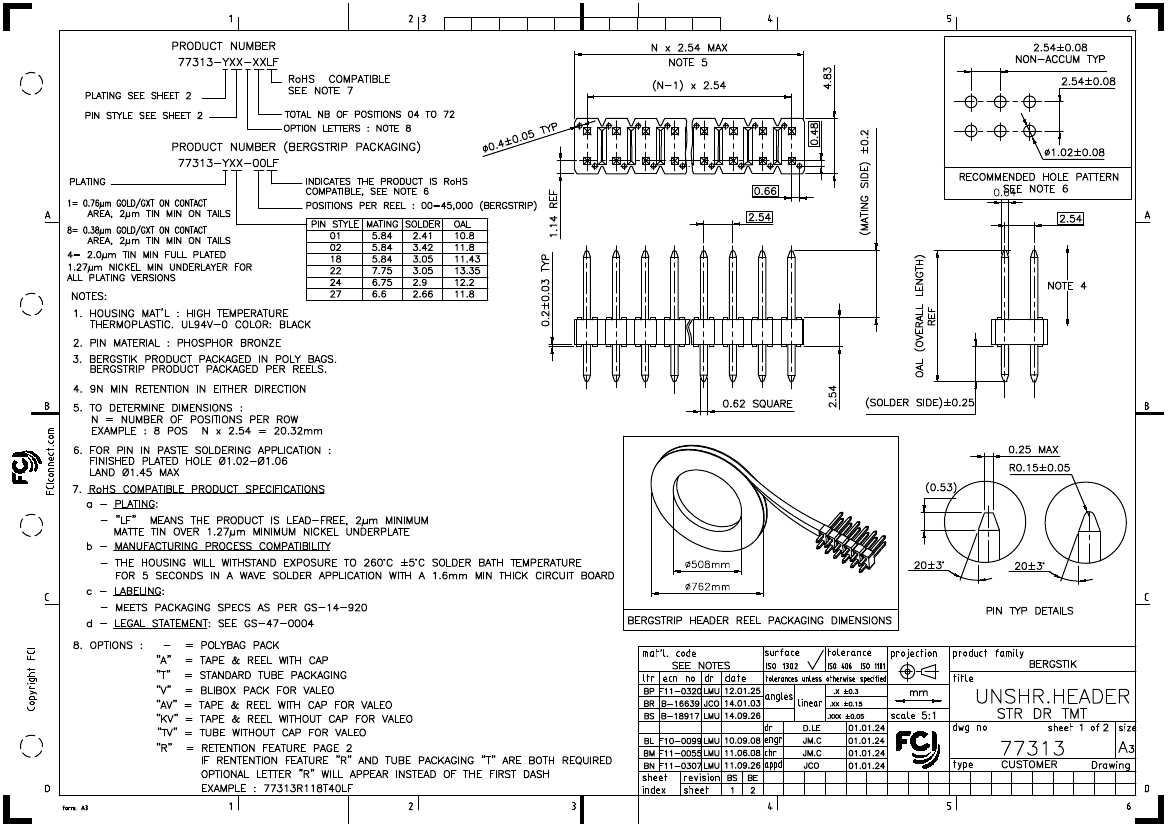

77313-yxx-xxLF Drawing
Featured Produc
MezzSelec
PCN Obsolescence/ EOL
Basics+ Non Rohs 25/Jul/2007
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	12
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.266" (6.75mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold, GXT™
Contact Finish Thickness	15µin (0.38µm)
Col	Black
Mating Products	89898-306ALF-ND - CONN RCPT 12POS .100 DL STR SMD89898-306BLF-ND - CONN RCPT 12POS .100 DL STR SMD609-3042-ND - CONN RCPT 12POS .100 DL STR SMD71609-306ALF-ND - CONN RCPT 12POS .100" DL SMD RA71609-406ALF-ND - CONN RCPT 12POS .100" DL SMD RA71609-306-ND - CONN RCPT 12POS .100" DL SMD RA76342-306-ND - CONN RCPT 12POS .100 DBL STR PCB71609-406LF-ND - CONN RCPT 12POS .100" DL SMD RA71609-306LF-ND - CONN RCPT 12POS .100 DBL R/A SMD76342-306LF-ND - CONN RCPT 12POS .100 DBL STR PCB76342-406LF-ND - CONN RCPT 12POS .100 DBL STR PCB87606-306LF-ND - CONN RCPT 12POS .100" DBL PCB87606-406LF-ND - CONN RCPT 12POS .100" DBL PCB

PDS: Rev :BS

STATUS:Released

Printed: Oct 08, 2014
