Preview

5756-2041: DescriptionBoard Connector, 4 Contact(s), Male, Straight, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5756-2041 Overview

Board Connector, 4 Contact(s), Male, Straight, Surface Mount Terminal, Locking

5756-2041 Parametric

Parameter Name	Attribute value
Objectid	307811160
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.345 inch
subject depth	0.39 inch
body length	0.382 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	5756
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

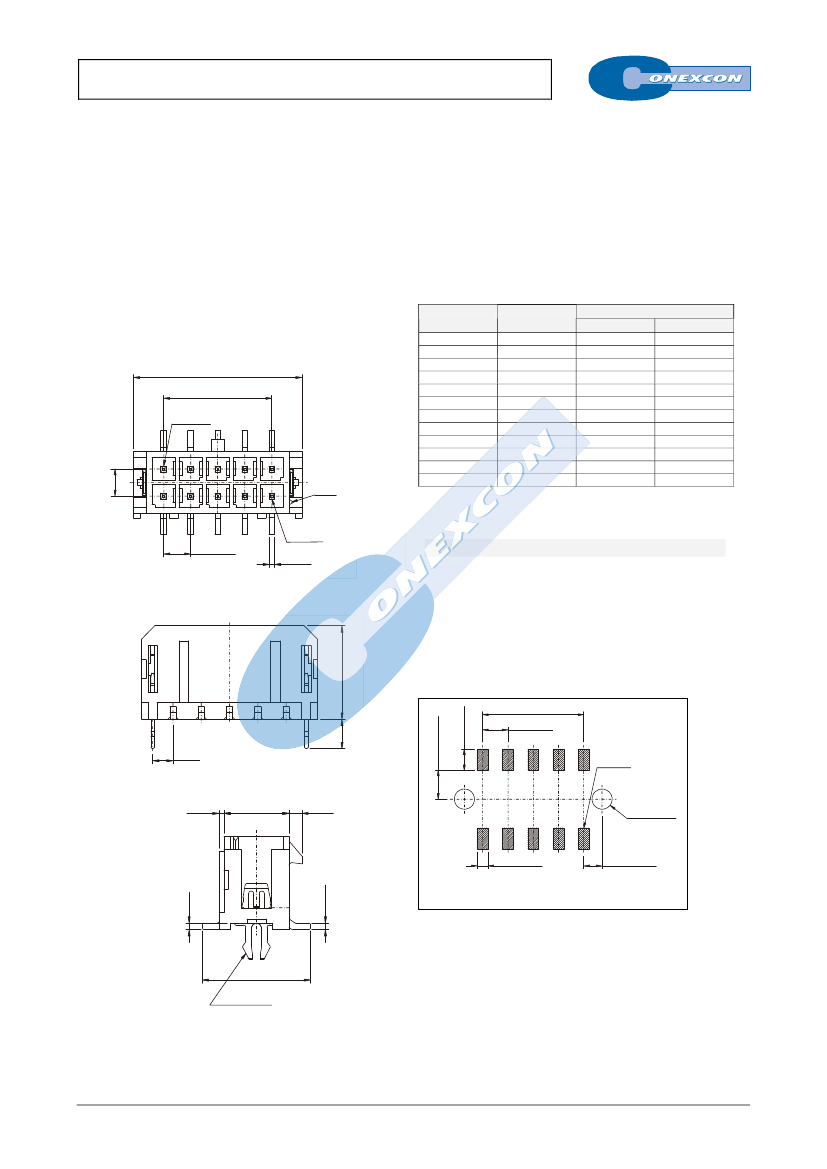

STRAIGHT MICRO POWER CONNECTOR; SMT

5756 SERIES.

Pitch 3.00 mm. (0.118”). High current / High density.

Features



Available 2 to 24 circuits

Insulator Material: Nylon 6T, high temperature,

black colour; UL 94V-0

Contact Material: Brass of 0,64 mm square;

Tin plating as standard finish



Mates with 5740 series housing

With metal board lock

Insulation Resistance

>

1000 Mohms.

Working termperature –40º C a 105º C

Dimensional Information

Ordering and Dimensional In formation

Circuits

2

4

B

A

Last circuit

Part Number

5756 –

T021

5756 –

T041

5756 –

T061

5756 –

T081

5756 –

T101

5756 –

T121

5756 –

T141

5756 –

T161

5756 –

T181

5756 –

T201

5756 –

T221

5756 –

T241

Dimensions

A

-

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

B

6.70 (.264)

9.70 (.382)

12.70 (.500)

15.70 (.618)

18.70 (.657)

21.70 (.854)

24.70 (.972)

27.70 (1.091)

30.70 (1.209)

33.70 (1.327)

36.70 (1.445)

39.70 (1.563)

6

8

10

12

14

16

18

20

22

3.00

.118

24

Mark

Circuit 1

T = Plating of the Pins

Circuit 1

3.00±0.05

.118±.002

0.64

.025



T =

2.

Tin plated. (RECOMMENDED PLATING)

9.9

.390

3.43±0.05

.135±.002

2.54±0.05

.100±.002

A±0.10

3.00±0.10

.118±.004

3.1

2.16

.085

.122

Circuito 1

0.5

.020

6.86

.270

1.4

.055

Ø2.41±0.05

.095±.002

1.27±0.05

.050±.002

2.16±0.05

.085±.002

0.70

.028

11.4

.449

Metal Board

lock

FULL LINE CATALOGUE

0.70

.028

Recommended PCB Layout

L-9
