PH2MR20-103GCBCPR4-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PH2MR20-103GCBCPR4-U

PH2MR20-103GCBCPR4-U: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size238KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH2MR20-103GCBCPR4-U Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

PH2MR20-103GCBCPR4-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164560536
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.079 inch
subject depth	0.189 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (20)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PH2MR
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

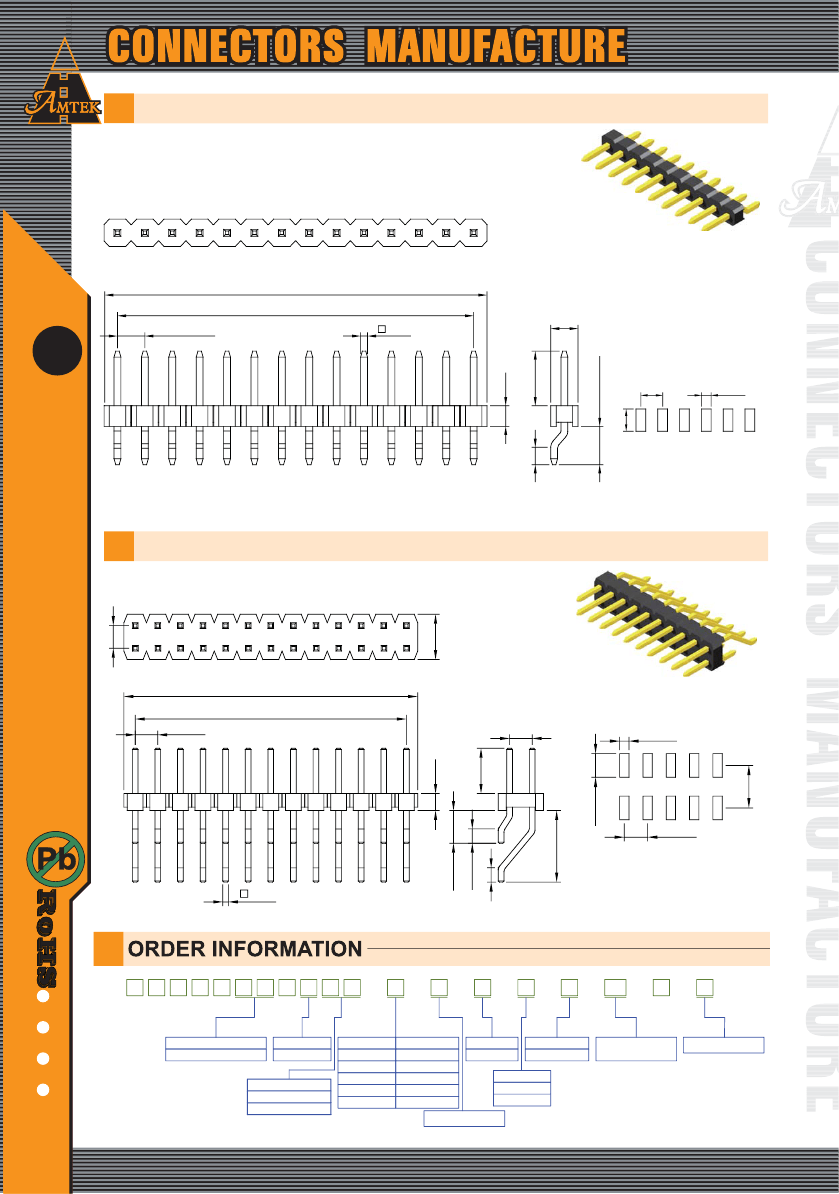

Pin Header 2.0mm 1 Row H=1.5/2.0mm SMT R/A Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

in Header 2.0mm

2-47

Part No.:PH2MR15/20-1XX-U

Pin Header 2.0mm 2 Row H=1.5/2.0mm SMT R/A Type

Part No.:PH2MR15/20-2XX-U

P H 2 M R X X - X X X

15:Insulator Height H=1.5mm

20:Insulator Height H=2.0mm

1:Single Row

2:Dual Row

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

No. of Contacts Per Row

H=1.5mm (02~30)

H=2.0mm (02~30)

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

O:W/O Peg

O:W/O Cap

T:Tube

R:Tape & Reel

C:With Cap

Fill in Dimensions For

Special Design

U:RoHS + Nylon 6T

P:With Peg

P For H=2.0 Only

B:Black Insulator

Standard Recommended

www.amtek-co.com.tw
