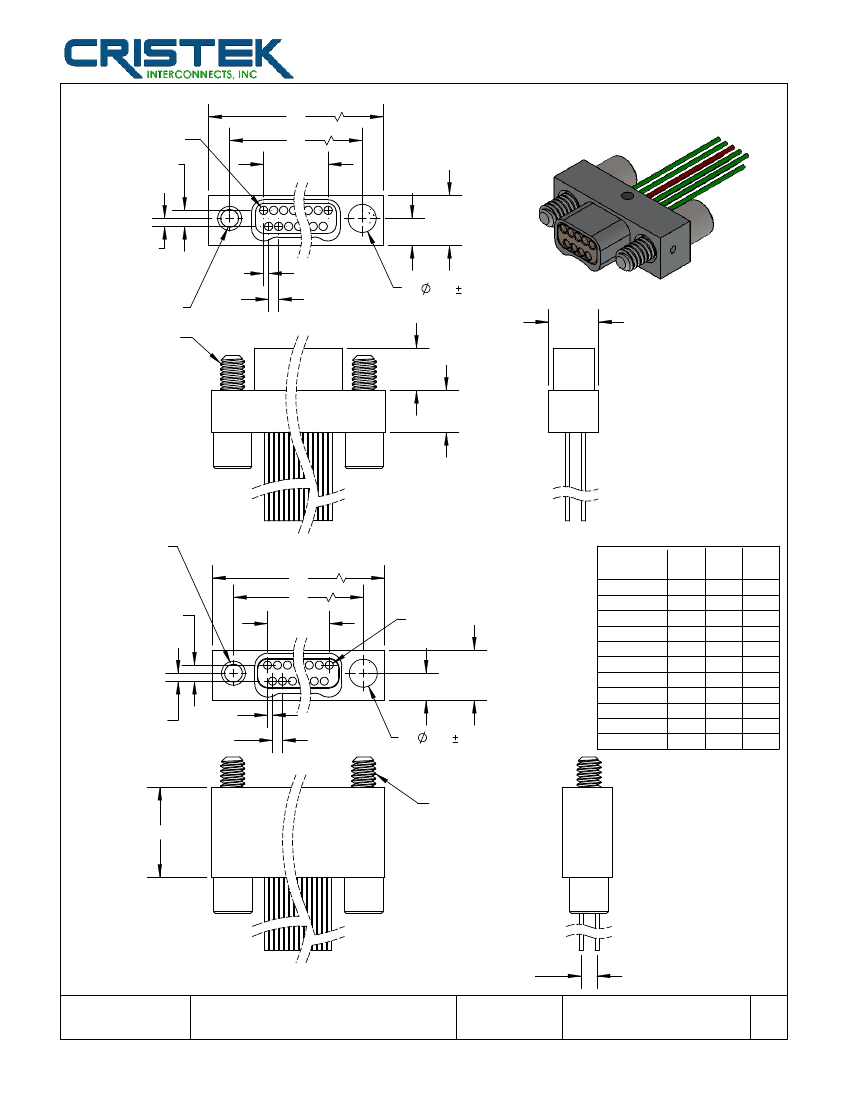

SERIES
CMN2
NANO METAL SHELL
DUAL ROW WITH LEADS
1
6
5
1
9
1
17
8
1
11
1
14
13
5
9
1
8
15
1
11
21
1
1
13
25
1
9
9
15
31
1
27
1
34
1
36
15 12
16
31
21
1
20
21
25
19
25
9
6
16
31
15
31
1
27
9
21
1
20
12
25
19
37
14
37
26
51
33
37
17
37
26
51
1
34
51
65
69
51
65
33
65
35
69
65
35
69
43
43
85
46
91
1
69
85
46
36
1
1
44
85
1
47
85
91
44
1
47
91
91

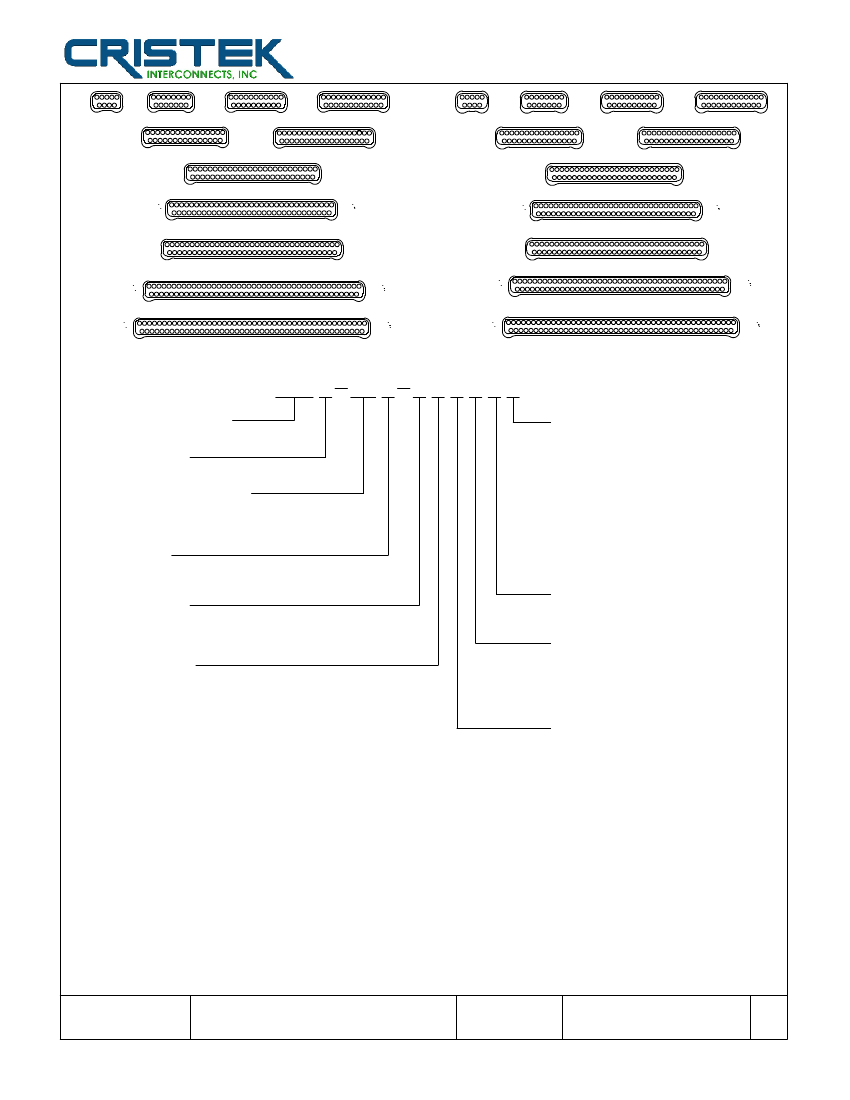

PLUG MATING FACE
RECEPTACLE MATING FACE
CMN 2
NANO METAL SHELL
WITH LEADS
BODY STYLE
2 = DUAL ROW
NUMBER OF CONTACTS
09 25 51 85
15 31 65 91
21 37 69
GENDER
P = PLUG, PIN CONTACTS
S = RECEPTACLE, SOCKET CONTACTS
HARDWARE
0 = NONE (THRU HOLE ONLY)
J = JACKSCREW (CAPTURED)
T = #0-80 THREADED HOLE
SHELL FINISH
ALUMINUM
A = CADMIUM
B = NICKEL
C = ZINC-NICKEL
G = GOLD
STAINLESS STEEL
P = PASSIVATE
TITANIUM
T = TITANIUM (FINISH N/A)
XX X
X X X X X X
WIRE LENGTH
STRANDED (+1.00 / -0.00)
1 = 6 INCHES
2 = 12 INCHES
3 = 18 INCHES
4 = 24 INCHES
5 = 36 INCHES
6 = 72 INCHES
SOLID COPPER (+0.20 / -0.00)
30 AWG
1 = 0.5 INCH
2 = 1.0 INCH
3 = 0.25 INCH
WIRE SIZE
0 = 32 AWG STRANDED/30 AWG SOLID
1 = 30 AWG STRANDED
WIRE COLOR/TYPE
0 = WHITE *
1 = YELLOW
2 = 10 SOLID COLORS REPEATED *
3 = FULL COLOR CODE
9 = SOLID COPPER *
TERMINATION
WIRE TYPE
STRANDED
H = HARNESS (MIL-W-16878/6) *
S = SPACE M22759/33
M = 04047-30A
N = NEMA HP3
SOLID
G = GOLD PLATED COPPER
T = TIN/LEAD PLATED COPPER
* = MOST COMMONLY USED & STOCKED WIRE TYPES AND HARDWARE OPTIONS
MATERIALS AND FINISHES ARE IAW MIL-DTL-32139.
FOR DETAILS SEE MIL-SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
SHELL - ALUMINUM ALLOY, STAINLESS STEEL OR TITANIUM
INSULATOR - LIQUID CRYSTAL POLYMER OR GLASS FILLED
THERMOPLASTIC
CONTACT - COPPER ALLOY
3. SPECIFICATIONS:
4. ADDITIONAL INFORMATION:
2. FINISH:
SHELL - ELECTROLESS NICKEL OR CADMIUM OVER
ELECTROLESS NICKEL OR PASSIVATE OR GOLD
OR ZINC-NICKEL
CONTACT - GOLD OVER NICKEL
CURRENT RATING ------------------ 1 AMP MAX
FOR OTHER TERMINATIONS, CONTACT CRISTEK.
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS
5. SIZE 85 & 91 HARDWARE IS #2-56
DWV AT SEA LEVEL ---------------- 250 VAC
DWV AT 70,000 FT ALTITUDE --- 100 VAC
CONTACT RESISTANCE ------------ 30 mV DROP @ 1 A, 10 mA
CONTACT RETENTION ------------- 2 LBS AXIAL LOAD
ENGAGEMENT FORCE ------------- 5 oz MAX
SEPARATION FORCE --------------- 0.4 oz MIN
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
NANO METAL SHELL
DUAL ROW
WITH LEADS
DWG. NO.
SHT
REV
2
OF
2
CMN2
F
888.265.9162
CRISTEK.COM
