MB81G163222-80TQ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MB81G163222-80TQ

Preview

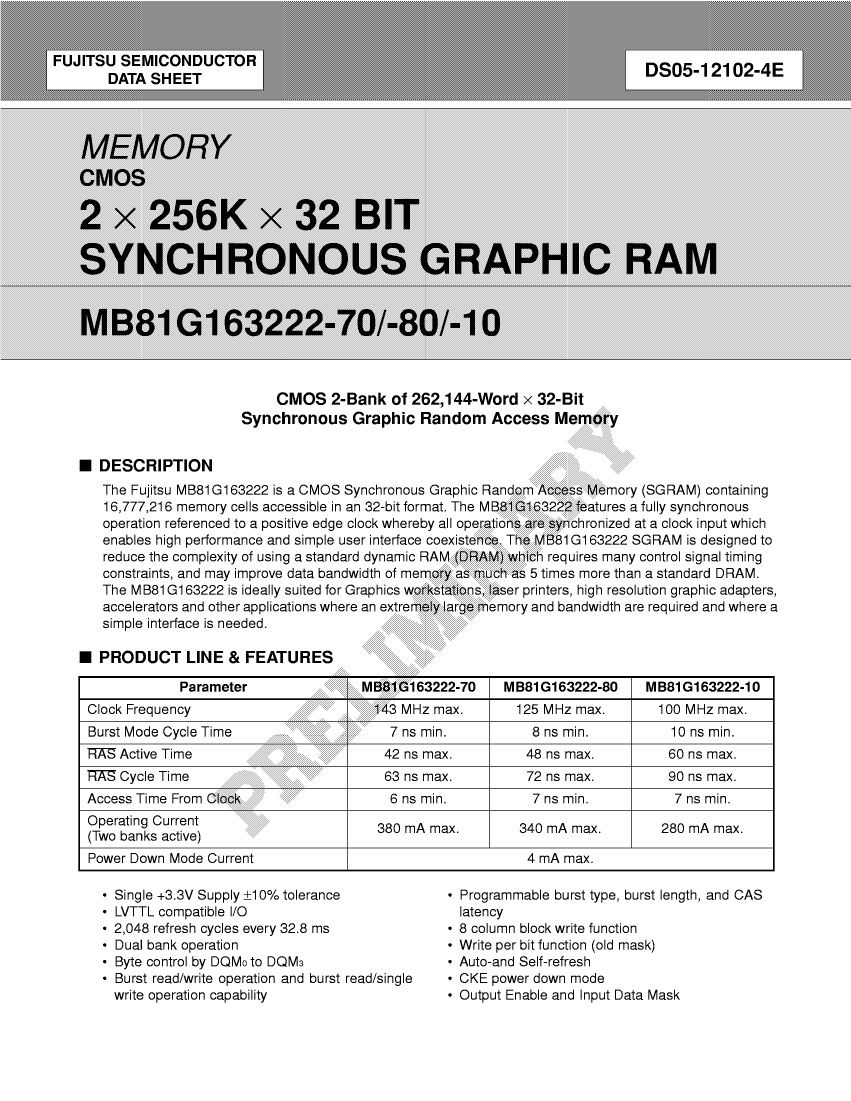

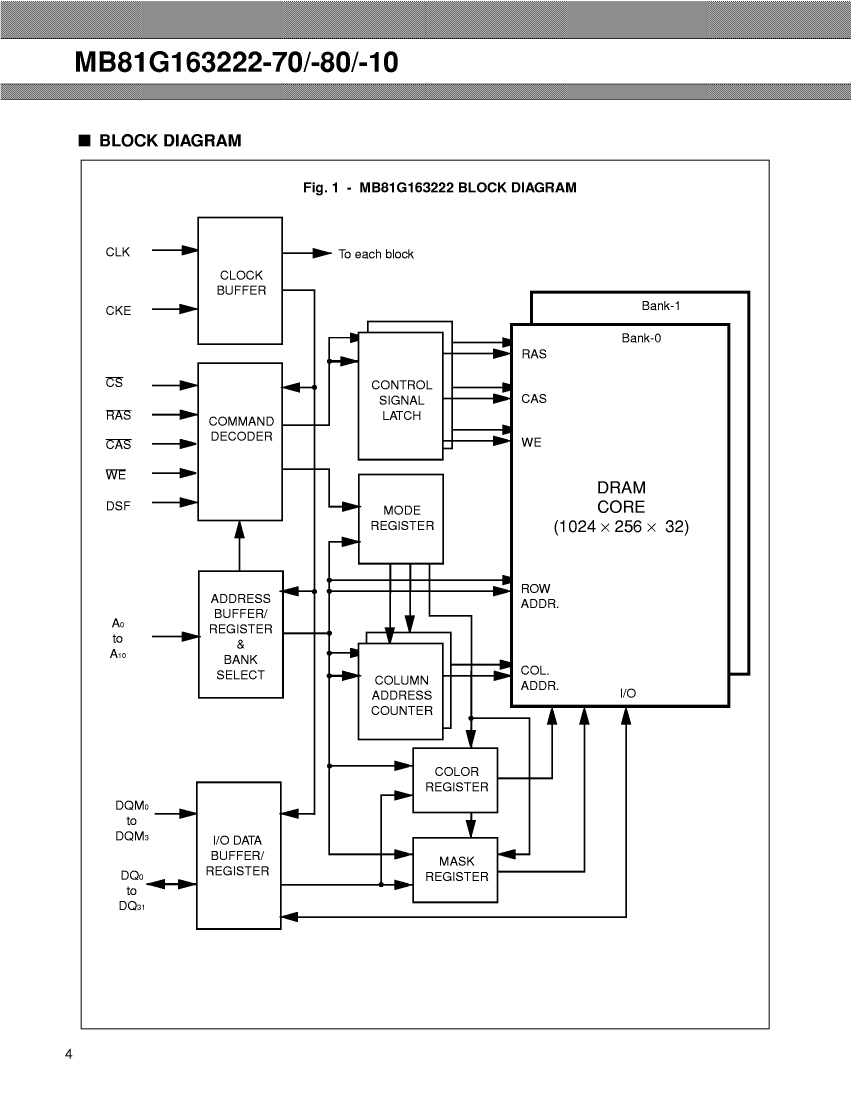

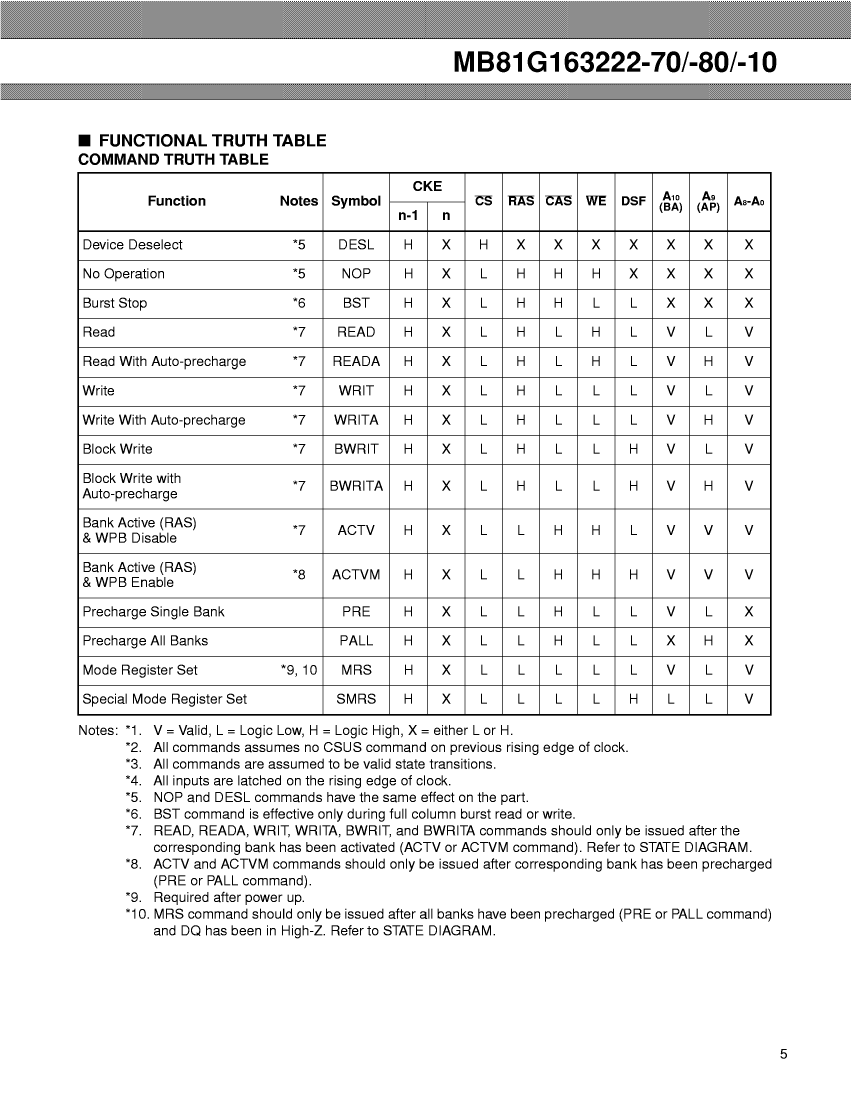

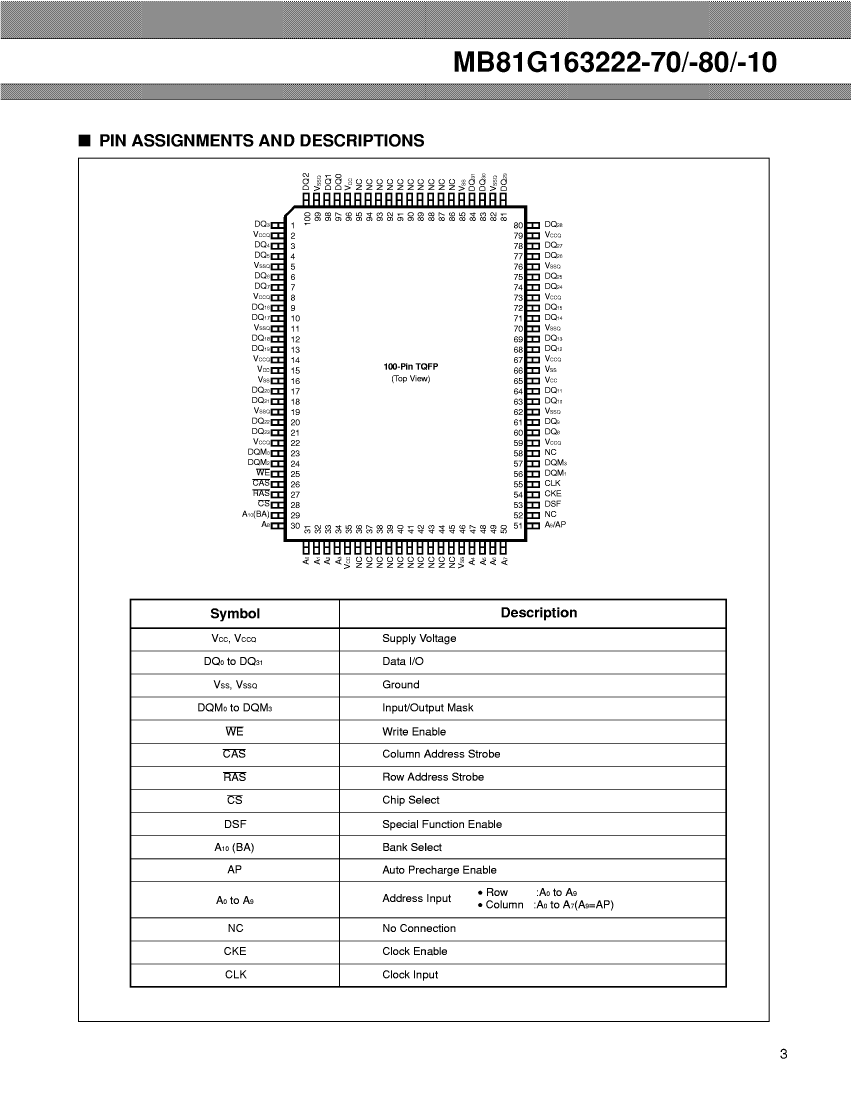

MB81G163222-80TQ: Description512KX32 SYNCHRONOUS GRAPHICS RAM, 7ns, PQFP100, PLASTIC, TQFP-100; Categorystorage storage; File Size4MB，50 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81G163222-80TQ Overview

512KX32 SYNCHRONOUS GRAPHICS RAM, 7ns, PQFP100, PLASTIC, TQFP-100

MB81G163222-80TQ Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	TQFP,
Contacts	100
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	7 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PQFP-G100
length	20 mm
memory density	16777216 bi
Memory IC Type	SYNCHRONOUS GRAPHICS RAM
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	100
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX32
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Package shape	RECTANGULAR
Package form	FLATPACK, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MB81G163222-80TQ Related Products

	MB81G163222-80TQ	MB81G163222-70TQ	MB81G163222--70TQ	MB81G163222--80TQ	MB81G163222--10TQ
Description	512KX32 SYNCHRONOUS GRAPHICS RAM, 7ns, PQFP100, PLASTIC, TQFP-100	Synchronous Graphics RAM, 512KX32, 6ns, CMOS, PQFP100, PLASTIC, TQFP-100	512KX32 SYNCHRONOUS GRAPHICS RAM, 6ns, PQFP100, PLASTIC, TQFP-100	512KX32 SYNCHRONOUS GRAPHICS RAM, 7ns, PQFP100, PLASTIC, TQFP-100	512KX32 SYNCHRONOUS GRAPHICS RAM, 7ns, PQFP100, PLASTIC, TQFP-100
Parts packaging code	QFP	QFP	QFP	QFP	QFP
package instruction	TQFP,	TQFP,	TQFP, TQFP100,.7X.9,25	TQFP, TQFP100,.7X.9,25	TQFP, TQFP100,.7X.9,25
Contacts	100	100	100	100	100
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	7 ns	6 ns	6 ns	7 ns	7 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM
memory width	32	32	32	32	32
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	100	100	100	100	100
word count	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX32	512KX32	512KX32	512KX32	512KX32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TQFP	TQFP	TQFP	TQFP	TQFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm
Objectid	-	1449545531	1442946356	1442946359	1442946353
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible
Maximum clock frequency (fCLK)	-	-	143 MHz	125 MHz	100 MHz
I/O type	-	-	COMMON	COMMON	COMMON
interleaved burst length	-	-	2,4,8	2,4,8	2,4,8
JESD-609 code	-	-	e0	e0	e0
Output characteristics	-	-	3-STATE	3-STATE	3-STATE
Encapsulate equivalent code	-	-	TQFP100,.7X.9,25	TQFP100,.7X.9,25	TQFP100,.7X.9,25
refresh cycle	-	-	2048	2048	2048
Continuous burst length	-	-	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	-	-	0.003 A	0.003 A	0.003 A
Maximum slew rate	-	-	0.38 mA	0.34 mA	0.28 mA
Terminal surface	-	-	TIN LEAD	TIN LEAD	TIN LEAD
