MITSUBISHI IGBT MODULES
CM50DY-24H
MEDIUM POWER SWITCHING USE
INSULATED TYPE
A
B
C
F
F
K
E2 G2
Q - DIA.
(2 TYP.)
D
M
G1 E1
J
C2E1
E2
C1
N
(3 TYP.)
R
S - M5 THD
(3 TYP.)
R
R
TAB#110 t=0.5
H
L
H
P
E
G
Description:
Mitsubishi IGBT Modules are de-
signed for use in switching applica-
tions. Each module consists of two
IGBTs in a half-bridge configuration
with each transistor having a re-
verse-connected super-fast recov-
ery free-wheel diode. All compo-
nents and interconnects are iso-
lated from the heat sinking base-
plate, offering simplified system as-
sembly and thermal management.
Features:
Low Drive Power
Low V
CE(sat)
Discrete Super-Fast Recovery
Free-Wheel Diode
High Frequency Operation
Isolated Baseplate for Easy
Heat Sinking
Applications:
AC Motor Control
Motion/Servo Control
UPS
Welding Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from
the table below -i.e. CM50DY-24H
is a 1200V (V
CES
), 50 Ampere
Dual IGBT Module.
Type
CM
Current Rating
Amperes
50
V
CES
Volts (x 50)
24
G2
E2
C2E1
E2
C1
E1
G1

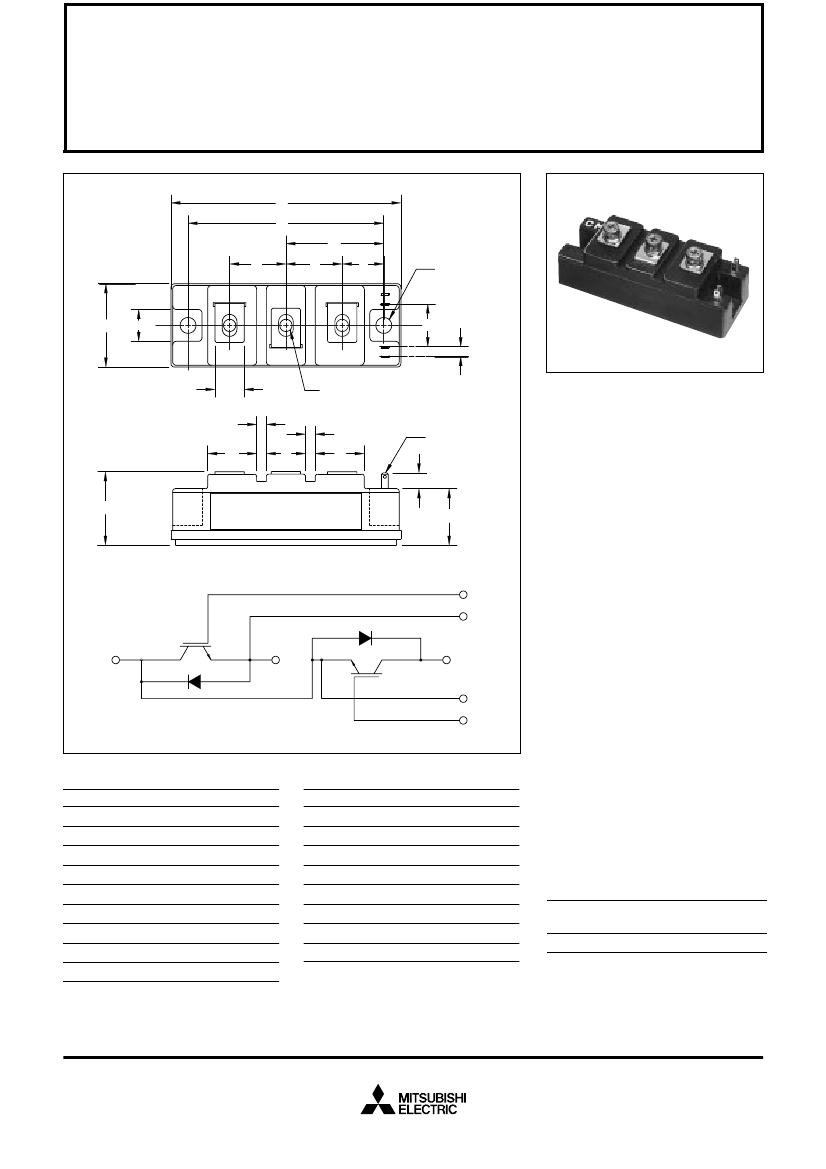

Outline Drawing and Circuit Diagram
Dimensions
A
B
C
D
E
F
G
H
J
Inches
3.70
3.150±0.01
1.57
1.34
1.22 Max.
0.90
0.85
0.79
0.71
Millimeters
94.0
80.0±0.25
40.0
34.0
31.0 Max.
23.0
21.5
20.0
18.0
Dimensions
K
L
M
N
P
Q
R
S
Inches
0.67
0.63
0.51
0.47
0.28
0.256 Dia.
0.16
M5 Metric
Millimeters
17.0
16.0
13.0
12.0
7.0
Dia. 6.5
4.0
M5
Sep.1998
MITSUBISHI IGBT MODULES
CM50DY-24H
MEDIUM POWER SWITCHING USE
INSULATED TYPE
Absolute Maximum Ratings, T
j
= 25
°
C unless otherwise specified
Ratings
Junction Temperature
Storage Temperature
Collector-Emitter Voltage (G-E SHORT)
Gate-Emitter Voltage (C-E SHORT)
Collector Current (T
C
= 25°C)
Peak Collector Current
Emitter Current** (T
C
= 25°C)
Peak Emitter Current**
Maximum Collector Dissipation (T
C
= 25°C, T
j
≤
150°C)
Mounting Torque, M5 Main Terminal
Mounting Torque, M6 Mounting
Weight
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.)
*Pulse width and repetition rate should be such that the device junction temperature (T
j
) does not exceed T
j(max)
rating.
**Represents characteristics of the anti-parallel, emitter-to-collector free-wheel diode (FWDi).
Symbol
T
j
T
stg
V
CES
V
GES
I
C
I
CM
I
E
I
EM
P
c
–
–
–
V
iso
CM50DY-24H
–40 to 150
–40 to 125
1200
±20
50
100*
50
100*
400
1.47 ~ 1.96
1.96 ~ 2.94
190
2500
Units
°C
°C
Volts
Volts
Amperes
Amperes
Amperes
Amperes
Watts
N·m
N·m
Grams
Vrms
Static Electrical Characteristics, T
j
= 25
°
C unless otherwise specified
Characteristics
Collector-Cutoff Current
Gate Leakage Current
Gate-Emitter Threshold Voltage
Collector-Emitter Saturation Voltage
Symbol
I
CES
I
GES
V
GE(th)
V
CE(sat)
Q
G
V
EC
Test Conditions
V
CE
= V
CES
, V
GE
= 0V
V
GE
= V
GES
, V
CE
= 0V
I
C
= 5mA, V
CE
= 10V
I
C
= 50A, V
GE
= 15V
I
C
= 50A, V
GE
= 15V, T
j
= 150°C
Total Gate Charge
Emitter-Collector Voltage
V
CC
= 600V, I
C
= 50A, V
GE
= 15V
I
E
= 50A, V
GE
= 0V
Min.
–
–
4.5
–
–
–
–
Typ.
–
–
6.0
2.5
2.25
250
–
Max.
1.0
0.5
7.5
3.4**
–
–
3.5
Units
mA
µA
Volts
Volts
Volts
nC
Volts
** Pulse width and repetition rate should be such that device junction temperature rise is negligible.
Dynamic Electrical Characteristics, T
j
= 25
°
C unless otherwise specified
Characteristics
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Resistive
Load
Switching
Times
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Symbol
C
ies
C
oes
C
res
t
d(on)
t
r
t
d(off)
t
f
t
rr
Q
rr
I
E
= 50A, di
E
/dt = –100A/µs
I
E
= 50A, di
E
/dt = –100A/µs
V
CC
= 600V, I
C
= 50A,
V
GE1
= V
GE2
= 15V, R
G
= 6.3Ω
V
GE
= 0V, V
CE
= 10V
Test Conditions
Min.
–
–
–
–
–
–
–
–
–
Typ.
–
–
–
–
–
–
–
–
0.37
Max.
10
3.5
2
80
200
150
350
250
–
Units
nF
nF
nF
ns
ns
ns
ns
ns
µC
Diode Reverse Recovery Time
Diode Reverse Recovery Charge
Thermal and Mechanical Characteristics, T
j
= 25
°
C unless otherwise specified
Characteristics
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Case
Contact Thermal Resistance
Symbol
R
th(j-c)
R
th(j-c)
R
th(c-f)
Test Conditions
Per IGBT
Per FWDi
Per Module, Thermal Grease Applied
Min.
–
–
–
Typ.
–
–
–
Max.
0.31
0.70
0.075
Units
°C/W
°C/W
°C/W
Sep.1998
MITSUBISHI IGBT MODULES
CM50DY-24H
MEDIUM POWER SWITCHING USE
INSULATED TYPE

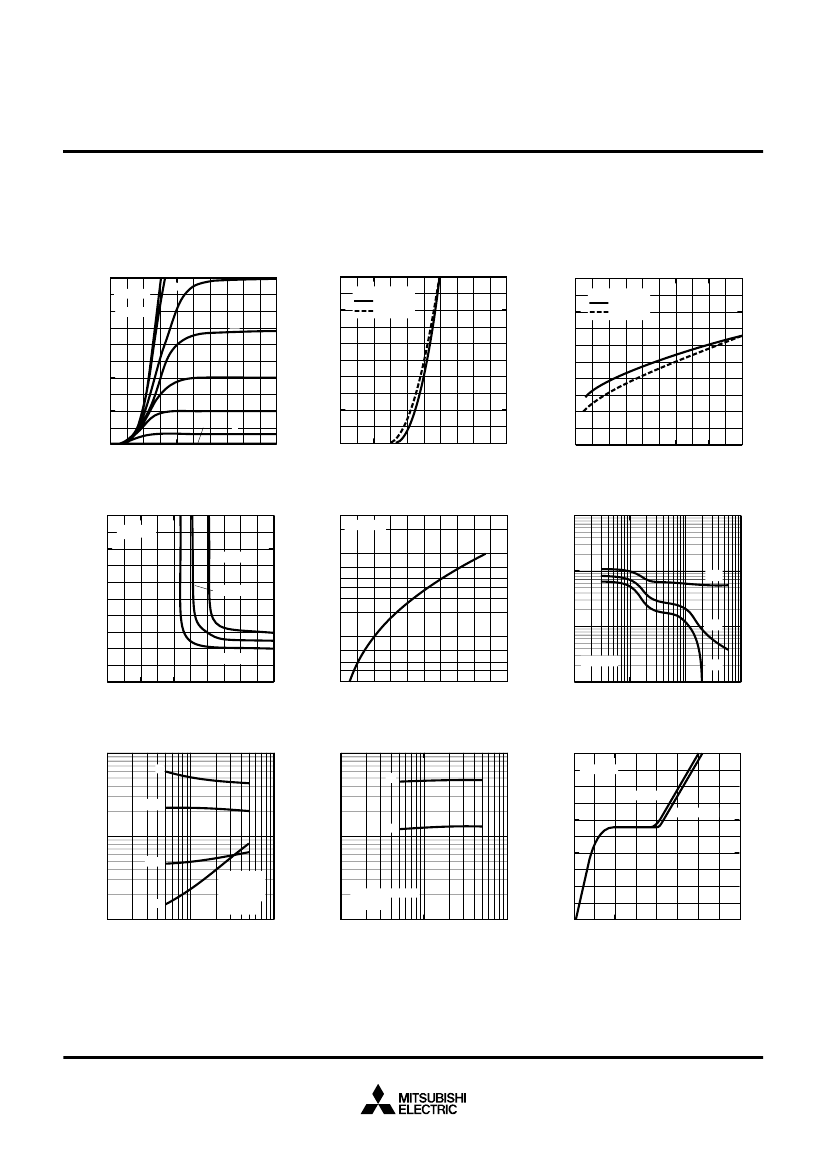

OUTPUT CHARACTERISTICS
(TYPICAL)
TRANSFER CHARACTERISTICS
(TYPICAL)
COLLECTOR-EMITTER
SATURATION VOLTAGE CHARACTERISTICS
(TYPICAL)
100
COLLECTOR CURRENT, I
C
, (AMPERES)
COLLECTOR CURRENT, I
C
, (AMPERES)
100
COLLECTOR-EMITTER
SATURATION VOLTAGE, V
CE(sat)
, (VOLTS)
T
j
= 25
o
C
15
5
V
CE
= 10V
T
j
= 25°C
T
j
= 125°C
V
GE
= 15V
T
j
= 25°C
T
j
= 125°C
12
80
V
GE
= 20V
11
80
4
60
10
60
3
40
40
2
20
7
9
8
20
1
0
0
2
4
6
8
10
COLLECTOR-EMITTER VOLTAGE, V
CE
, (VOLTS)
0
0
4
8
12
16
20
GATE-EMITTER VOLTAGE, V
GE
, (VOLTS)
0
0
20
40
60
80
100
COLLECTOR-CURRENT, I
C
, (AMPERES)
COLLECTOR-EMITTER
SATURATION VOLTAGE CHARACTERISTICS
(TYPICAL)
FREE-WHEEL DIODE
FORWARD CHARACTERISTICS
(TYPICAL)
CAPACITANCE VS. V
CE
(TYPICAL)
10
COLLECTOR-EMITTER
SATURATION VOLTAGE, V
CE(sat)
, (VOLTS)
3
T
j
= 25°C
2
T
j
= 25°C
EMITTER CURRENT, I
E
, (AMPERES)
10
2
CAPACITANCE, C
ies
, C
oes
, C
res
, (nF)
8
I
C
= 100A
10
2
7
5
3
2
10
1
6
C
ies
I
C
= 50A
4
10
1
7
5
3
10
0
C
oes
2
I
C
= 20A
V
GE
= 0V
C
res
0
0
4
8
12
16
20
GATE-EMITTER VOLTAGE, V
GE
, (VOLTS)
1.0
1.5
2.0
2.5
3.0
3.5
10
-1
10
-1
10
0
10
1
10
2
EMITTER-COLLECTOR VOLTAGE, V
EC
, (VOLTS)
COLLECTOR-EMITTER VOLTAGE, V
CE
, (VOLTS)
HALF-BRIDGE
SWITCHING CHARACTERISTICS
(TYPICAL)
REVERSE RECOVERY CHARACTERISTICS
(TYPICAL)
REVERSE RECOVERY CURRENT, I
rr
, (AMPERES)
GATE CHARGE, V
GE
10
3
t
f
REVERSE RECOVERY TIME, t
rr
, (ns)
10
3
I
rr
10
1
20
GATE-EMITTER VOLTAGE, V
GE
, (VOLTS)
I
C
= 50A
16
SWITCHING TIME, (ns)
t
d(off)
V
CC
= 400V
V
CC
= 600V
10
2
t
d(on)
V
CC
= 600V
V
GE
= ±15V
R
G
= 6.3Ω
T
j
= 125°C
10
2
t
rr
12
10
0
8
t
r
di/dt = -100A/µsec
T
j
= 25°C
4
10
1
10
0
10
1
COLLECTOR CURRENT, I
C
, (AMPERES)
10
2
10
1
10
0
10
-1
10
1
EMITTER CURRENT, I
E
, (AMPERES)
10
2
0
0
100
200
300
400
GATE CHARGE, Q
G
, (nC)
Sep.1998
MITSUBISHI IGBT MODULES
CM50DY-24H
MEDIUM POWER SWITCHING USE
INSULATED TYPE
NORMALIZED TRANSIENT THERMAL IMPEDANCE, Z
th(j-c)
Z
th
= R
th
• (NORMALIZED VALUE)
NORMALIZED TRANSIENT THERMAL IMPEDANCE, Z
th(j-c)
Z
th
= R
th
• (NORMALIZED VALUE)
TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(IGBT)
10
-3
10
-2
10
-1
10
0
10
1
10
1
TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(FWDi)
10
-3
10
-2
10
-1
10
0
10
1
10
1
10
0
Single Pulse
T
C
= 25°C
Per Unit Base = R
th(j-c)
= 0.31°C/W
10
0
Single Pulse
T
C
= 25°C
Per Unit Base = R
th(j-c)
= 0.7°C/W
10
-1
10
-1
10
-1
10
-1
10
-2
10
-2
10
-2
10
-2
10
-3
10
-5
TIME, (s)
10
-3
10
-4
10
-3
10
-3
10
-5
TIME, (s)
10
-4
10
-3
10
-3
