CM520813

Description
SCR/Diode POW-R-BLOK⑩ Modules 130 Amperes/800 Volts
CategoryAnalog mixed-signal IC    Trigger device
File Size85KB,4 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Environmental Compliance
Download Datasheet Parametric View All

CM520813 Overview

SCR/Diode POW-R-BLOK⑩ Modules 130 Amperes/800 Volts

CM520813 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPOWEREX
package instructionFLANGE MOUNT, R-PUFM-X6
Contacts6
Reach Compliance Codeunknown
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN SERIES DIODE
Critical rise rate of minimum off-state voltage500 V/us
Maximum DC gate trigger current100 mA
Maximum DC gate trigger voltage3 V
Quick connection descriptionG-GR
Description of screw terminalsA-K-2AK
JESD-30 codeR-PUFM-X6
Maximum leakage current30 mA
On-state non-repetitive peak current2600 A
Number of components1
Number of terminals6
Maximum on-state current130000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current205 A
Maximum repetitive peak off-state leakage current30000 µA
Off-state repetitive peak voltage800 V
Repeated peak reverse voltage800 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1

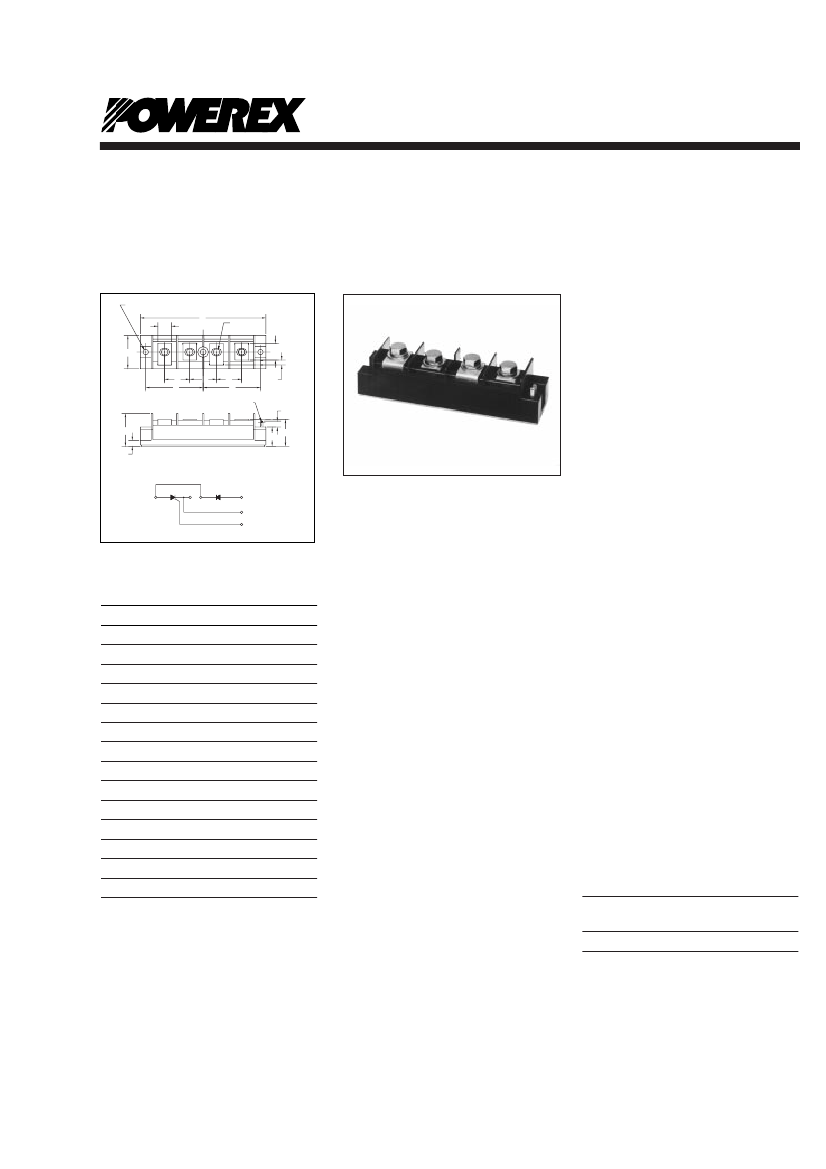

CM520813
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
SCR/Diode
POW-R-BLOK™ Modules
130 Amperes/800 Volts
L - DIA.
(2 TYP.)
A
J
A1K2
(4 TYP.)
K1
A1K2
P - M8 THD
(4 TYP.)
A2
C
K1
G1
H
F
B
E
F
B
.110 TAB
M
K
D
G
N
E
Description:
Powerex SCR/Diode
POW-R-BLOK™ Modules are
designed for use in applications
requiring Half-Control and
isolated packaging. The modules
are isolated for easy mounting
with other components on
common heatsinks.
Features:
A1K2
K1
A2
A1K2
K1
G1
*AIK2-AIK2 Connection made by external shorting bar.
CM520813
SCR/Diode
POW-R-BLOK™ Modules
130 Amperes/800 Volts
Isolated Mounting
Glass Passivated Chips
Metal Baseplate
Low Thermal Impedance
Outline Drawing
Dimension
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Inches
5.906
2.697±0.02
1.575
1.535
1.260
1.181
0.906
0.787
0.630
0.276
Millimeters
150.0
68.5±0.2
40.0
39.0
32.0
30.0
23.0
20.0
16.0
7.0
Applications:
Battery Supplies
Bridge Circuits
AC and DC Motor Control
Tap Changers
Lighting Control
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CM420813 is a
800 Volt, 130 Ampere SCR/Diode
POW-R-BLOK™ Module.
Type
CM52
Voltage
Volts (x100)
08
Current Rating
Amperes (x10)
13
0.256±0.008 Dia. Dia. 6.5±0.2
0.236
0.197
M8 Metric
6.0
5.0
M8
SD-25
