2029047-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2029047-4

2029047-4: Description(2029047-4) 4P MICRO MNL RCPT HSG SR SIDE; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2029047-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2029047-4	-	-	View	Buy Now

2029047-4 Overview

(2029047-4) 4P MICRO MNL RCPT HSG SR SIDE

2029047-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2008373982
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.58
Other features	LOW PROFILE
body width	0.207 inch
subject depth	0.553 inch
body length	0.512 inch
Body/casing type	RECEPTACLE
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	115/230VAC
Plug contact pitch	0.118 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCHING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED HOUSING
Rated voltage	250 V
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3 mm
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

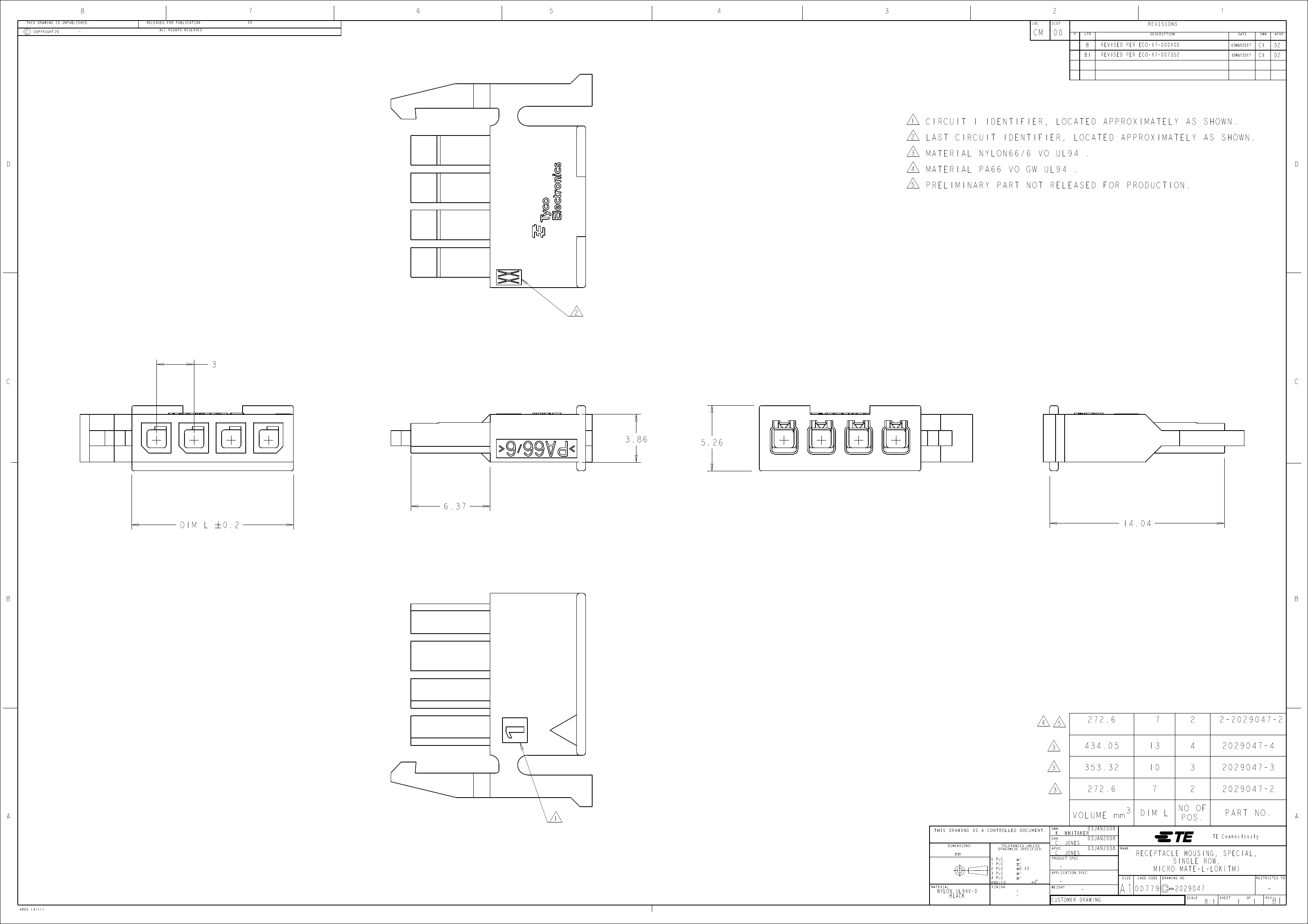

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-17-000100

REVISED PER ECO-17-007352

03MAR2017

10MAY2017

CIRCUIT 1 IDENTIFIER, LOCATED APPROXIMATELY AS SHOWN.

LAST CIRCUIT IDENTIFIER, LOCATED APPROXIMATELY AS SHOWN.

MATERIAL NYLON66/6 VO UL94 .

MATERIAL PA66 VO GW UL94 .

PRELIMINARY PART NOT RELEASED FOR PRODUCTION.

3.86

5.26

6.37

DIM L

# 0.2

14.04

272.6

2-2029047-2

434.05

353.32

272.6

VOLUME mm

DIM L

NO OF

POS.

2029047-4

2029047-3

2029047-2

PART NO.

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

K. WHITAKER

C. JONES

03JAN2008

NAME

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

APPLICATION SPEC

1 $

NYLON,UL94V-0

BLACK

WEIGHT

CUSTOMER DRAWING

00779

SIZE

RECEPTACLE HOUSING, SPECIAL,

SINGLE ROW,

MICRO MATE-L-LOK(TM)

CAGE CODE

DRAWING NO

RESTRICTED TO

2029047

SCALE

4805 (3/11)

8:1

SHEET

REV
