C124-14TG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> C124-14TG

C124-14TG: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerHighland Electronics Co., Ltd.

Download Datasheet Parametric View All

C124-14TG Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug

C124-14TG Parametric

Parameter Name	Attribute value
Objectid	303927181
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.417 inch
subject depth	0.28 inch
body length	0.895 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C124
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

Connectors

C123 Series

Dip Plug,2.54mm(0.100"),

Strain Relief

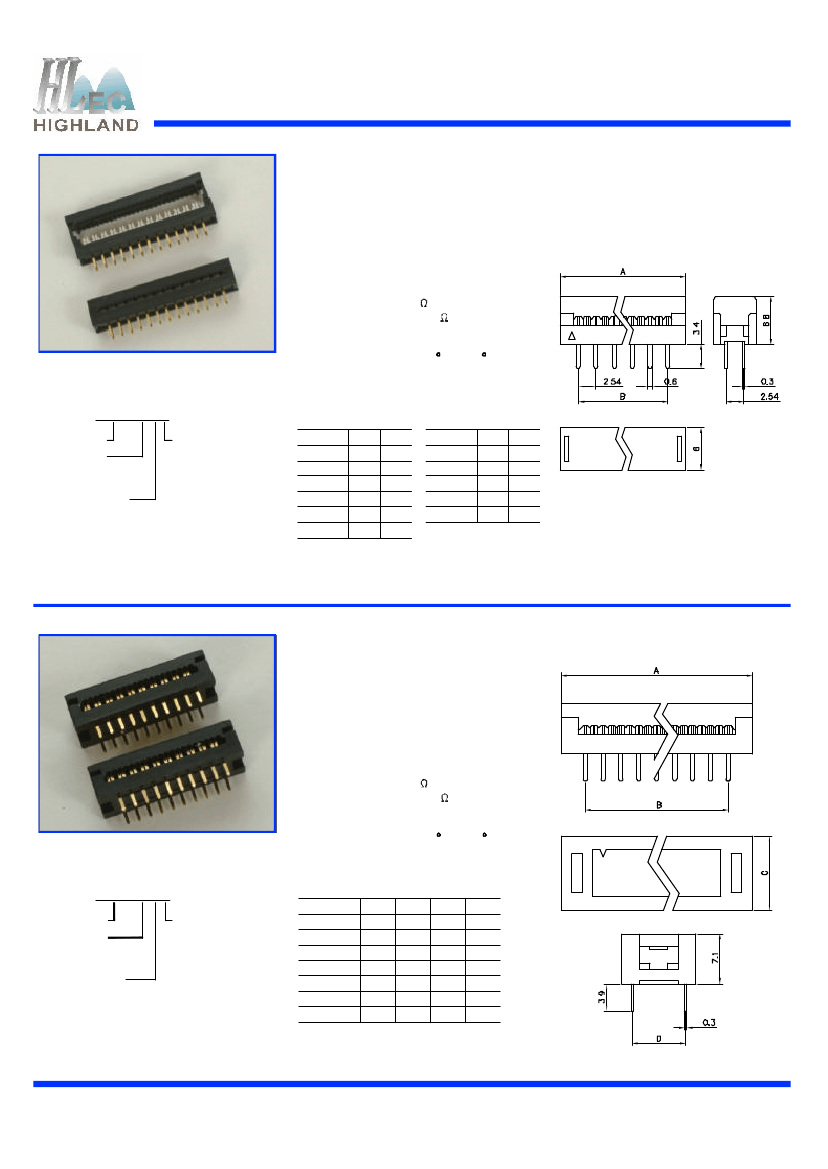

Specifications:

Contact Resistance:30m @100mADC

Insulator Resistance:1000M min. @ 5 0 0 V D C

Current Rating:1AMP

Voltage:500VAC For 1 minute

Operating Temperature:-55 C~+105 C

Contact:Brass or Phosphor Bronze,Stamped

Housing:PBT,UL94V-0

Ordering Information

C123-26TK

Series No.

N o . o f Pins:

10,14,16,20,26,30

34,40,50,60,64

Insulator Colour:

K-Black

G-Gray

Contact Plating:

G-AllGoldPlated

T-Tinned

C-NiPlatedTerminal

&Gold Plated Dip Tail

Positions

17.80

22.82

25.40

30.52

38.12

43.32

10.16

15.24

17.78

22.86

30.48

35.56

Positions

48.40

55.92

68.72

81.42

86.38

40.64

48.26

60.96

73.66

78.74

C124 Series

Dip Plug,2.54mm(0.100"),

Dual Row

Specifications:

Contact Resistance:30m @100mADC

Insulator Resistance:1000M min. @ 5 0 0 V D C

Current Rating:1AMP

Voltage:500VAC For 1 minute

Operating Temperature:-55 C~+105 C

Contact:Brass or Phosphor Bronze,Stamped

Housing:PBT,UL94V-0

Positions

Ordering Information

C124-24TK

Series No.

N o . o f Pins:

14,16,18,20,24,

28,40

Insulator Colour:

K-Black

G-Gray

Contact Plating:

G-AllGoldPlated

T-Tinned

C-NiPlatedTerminal

&Gold Plated Dip Tail

22.74

25.12

26.74

29.74

35.00

40.10

55.20

15.24

17.78

20.32

22.86

27.94

33.02

48.26

10.60

18.18

7.62

15.24

http://www.hlec.com.cn
