EH37 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 3.2mm x 5.0mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision E 03/12/2015
Electrical Specifications
Nominal Frequency
1.000MHz to 200.000MHz
Some frequencies within this range may not be available.
Frequency
Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the
Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration)
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
0°C to +70°C
-40°C to +85°C
±5ppm/year Maximum
2.5V
DC
±5%
6mA
7mA
8mA
9mA
Maximum
Maximum
Maximum
Maximum
over
over
over
over
Nominal
Nominal
Nominal
Nominal
Frequency
Frequency
Frequency
Frequency
of
of
of
of
1.000MHz to 25.000MHz
25.000001MHz to 75.000MHz
75.000001MHz to 100.000MHz
100.000001MHz to 200.000MHz
Operating Temperature
Range
Aging at 25°C
Supply Voltage
Input Current (No
Load)
Output Voltage Logic
High (V
OH
)
Output Voltage Logic
Low (V
OL
)
Duty Cycle
I
OH
= -8mA
90% of V
DD
Minimum
I
OL
= +8mA
10% of V
DD
Maximum
Measured at 50% of Waveform
50 ±10(%)
50 ±5(%)
Measured at 20% to 80% of Waveform
6nSec Maximum from 1.000MHz to 50.000MHz
4nSec Maximum from 50.000001MHz to 75.000MHz
2nSec Maximum from 75.000001MHz to 200.000MHz
15pF Maximum
CMOS
Tri-State (High Impedance)
90% of V
DD
Minimum or No Connection to Enable Output
10% of V
DD
Maximum to Disable Output (High Impedance)
10 A Maximum (Pin 1 = Ground)
Fj=12kHz to 20MHz
20pSec Typical, 30pSec Maximum
13pSec Typical
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage
Standby Current
RMS Phase Jitter
Period Jitter (RMS)
1 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH37 Series Oscillator
http://www.ecliptek.com/oscillators/EH37/
Period Jitter (pk-pk)
Start Up Time
Storage Temperature
85pSec Typical, 100pSec Maximum
10mSec Maximum
-55°C to +125°C
2 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH37 Series Oscillator
http://www.ecliptek.com/oscillators/EH37/

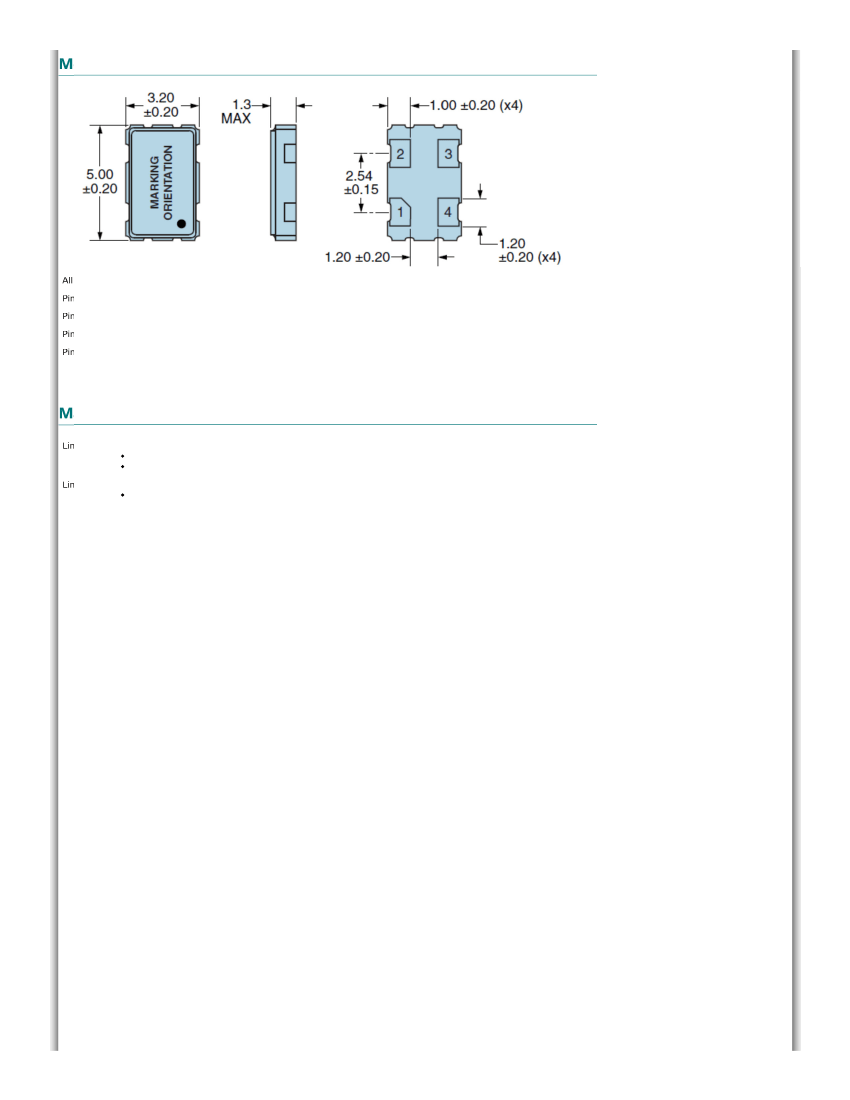

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
EXXXXXX
E = Ecliptek Designator
XXXXXX = Nominal Frequency in MHz (5 Digits + Decimal)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 2:
3 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH37 Series Oscillator
http://www.ecliptek.com/oscillators/EH37/
Environmental and Mechanical Specifications
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 3015, Class 1, HBM:1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
40°C/W (degrees Celsius per Watt)
14°C/W (degrees Celsius per Watt)
4 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH37 Series Oscillator
http://www.ecliptek.com/oscillators/EH37/
Tape & Reel Dimensions
1000 pieces per reel
Compliant to EIA-481
All Dimensions in Millimeters
5 of 10
28-Jan-2016 1:06 PM
