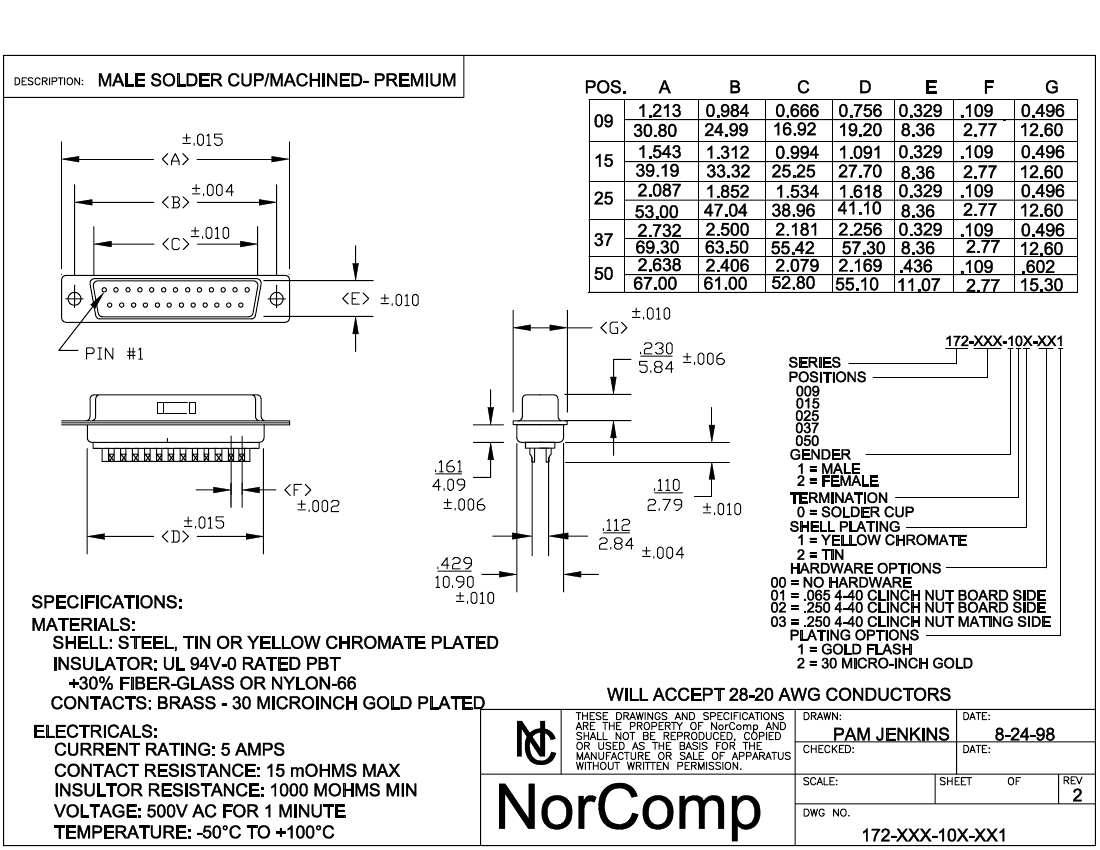

172-009-102-021: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

172-009-102-021 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Objectid	1281491144
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Other features	0.250" CLINCH NUT, BOARD SIDE
body width	0.496 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Plug contact pitch	0.109 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	100 °C
Minimum operating temperature	-50 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	9
