NMC-Q1111NPO681J100TRPLPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-Q1111NPO681J100TRPLPF

NMC-Q1111NPO681J100TRPLPF: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size2MB，33 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NMC-Q1111NPO681J100TRPLPF Overview

Ceramic Capacitor, Ceramic,

NMC-Q1111NPO681J100TRPLPF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7168721582
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	6
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.78 mm
JESD-609 code	e3
length	2.79 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
size code	1111
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.79 mm

Preview

Download Datasheet

View All

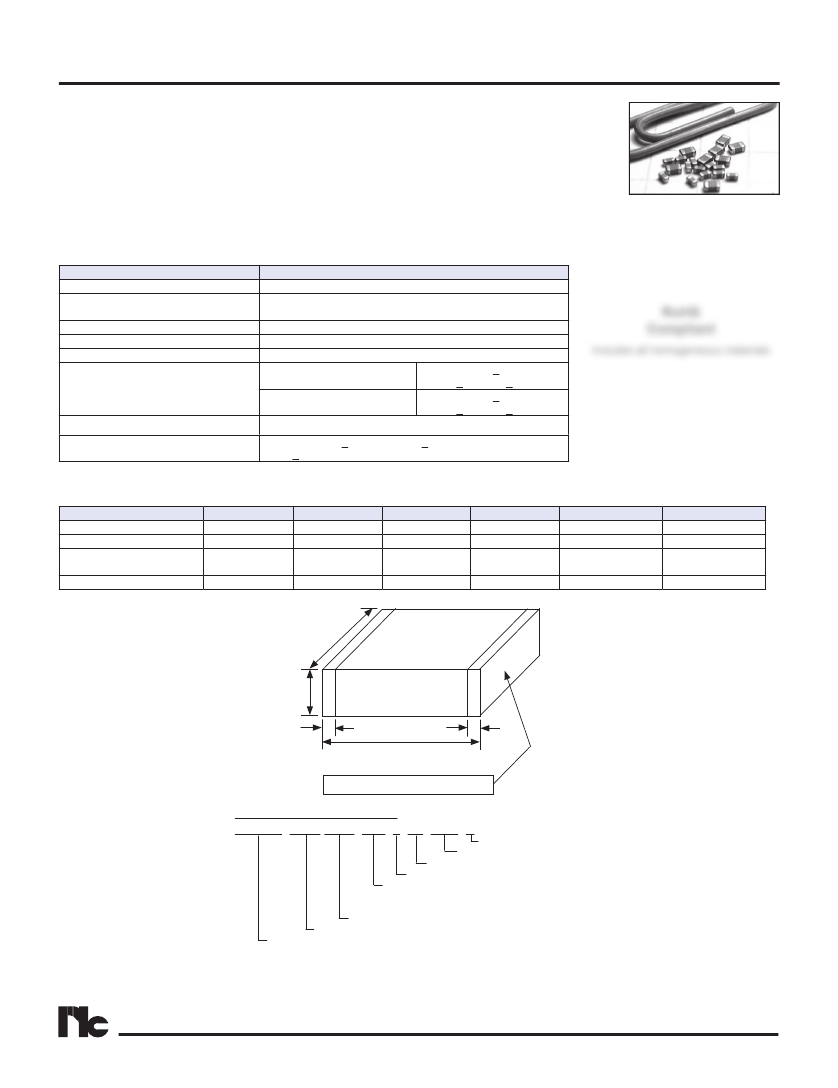

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH Q FOR RF APPLICATIONS

• STABLE NPO CHARACTERISTICS OVER TEMPERATURE AND VOLTAGE

• LOW LOSS COPPER (Cu) ELECTRODES

• HIGH VOLTAGE (UP TO 500VDC)

• EIA 0201, 0402, 0505, 0603, 0805 AND 1111 CASE SIZES

• IDEAL FOR WIRELESS DATA AND VOICE COMMUNICATIONS APPLICATIONS

WLANs, HIPERLAN, 802.11A, 802.11B, Wi-Fi, BLUETOOTH,TELEMATICS, PCS,

LMDS AND CELLULAR

SPECIFICATIONS

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltage

Q Factor

(1MHz, 1.0Vrms, +25°C)

insulation Resistance

Dielectric Withstanding Voltage

NPO

0.1pF ~ 1000pF

±0.05pF(A), ±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±1%(F), ±2%(G), ±5% (J)

-55°C ~ +125°C

0 ± 30PPM/°C

6.3Vdc, 10Vdc, 25Vdc, 50Vdc, 100Vdc, 250Vdc & 500Vdc

0201

C < 30pF Q > 400+20xC

0402 (25V ~ 50V)

C > 30pF Q > 1000

0402 (100V ~ 200V)

C < 30pF Q > 800+20xC

0603, 0505, 0805 & 1111

C > 30pF Q > 1400

10,000 Megohms min. @ +25°C

NMC-Q Series

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

0201 ~ 0805: <100V x 2.5RV, >200V

x 2RV for 1 ~ 5 sec.

1111: <100V

x 2.5RV, <500V x 2RV, 500V x 1.5 for 1 ~ 5 sec.

Note: Reflow soldering allowed for all case sizes. Contact NIC for wave soldering restrictions.

DIMENSIONS (mm)

EIA Case Size

Length (L)

Width (W)

Thickness (T)

Termination Width (P)

0201

0.6 ± 0.03

0.3 ± 0.03

0.33 max.

0.10 ~ 0.20

0402

1.0 ±0.05

0.5 ± 0.05

0.55 max.

0.15 ~ 0.30

0505

1.40 +0.38/-0.25

1.40 ±0.38

1.30 max.

0.12 ~ 0.50

0603

1.6 ±0.10

0.8 ± 0.10

0.87 max.

0.25 ~ 0.55

0805

2.0 ± 0.20

1.25 ± 0.20

0.70 max. (0.2pF)

0.95 max.

0.30 ~ 0.70

1111

2.79 +0.51/-0.25

2.79 ±0.38

1.78 max.

0.13 ~ 0.63

100% Sn over Ni barrier

PART NUMBER SYSTEM

NMC-Q 0603 NPO 100 J 50 TRP F

Series

RoHS Compliant

TRP = Punched carrier, TRPLP = Embossed Plastic

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
