8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
2.00
-
C
REVISED PER ECR-16-003247
14JUL2016
BW
GJ
DIM.F(2X)
18.80
R 0.50
(2X)
D
1
MATERIAL:
LEVEL 1:PBT, STANDARD TEMPERATURE 105°C
KEY A:NATURAL; KEY B:PURPLE; KEY C:BLUE; KEY D:YELLOW
LEVEL 2:NYLON, HIGH TEMPERATURE 150 $ C
KEY A:LIGHT GREY; KEY B:RED; KEY C:BLACK; KEY D:NATURAL
D
30.65
10.85
(2X)
6.70
(2X)
15.45
2
MATERIAL MARK:
LEVEL 1:PBT, LEVEL 2:HDT
APPLICABLE CONTACT P/N
TAB CONTACT:1971238/1971780/82/84/86/88-*,2238067-*
MATING CONN, P/N
PLUG HSG:*-1971773-*
TPA (LOCK PLATE):*-1971777-*
RECOMMENDED PANEL THICKNESS:1.0-2.0mm
THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING
3
4
5.975
DIM.E
DIM.D
DIM.C
+0.45
-0.35
5
6

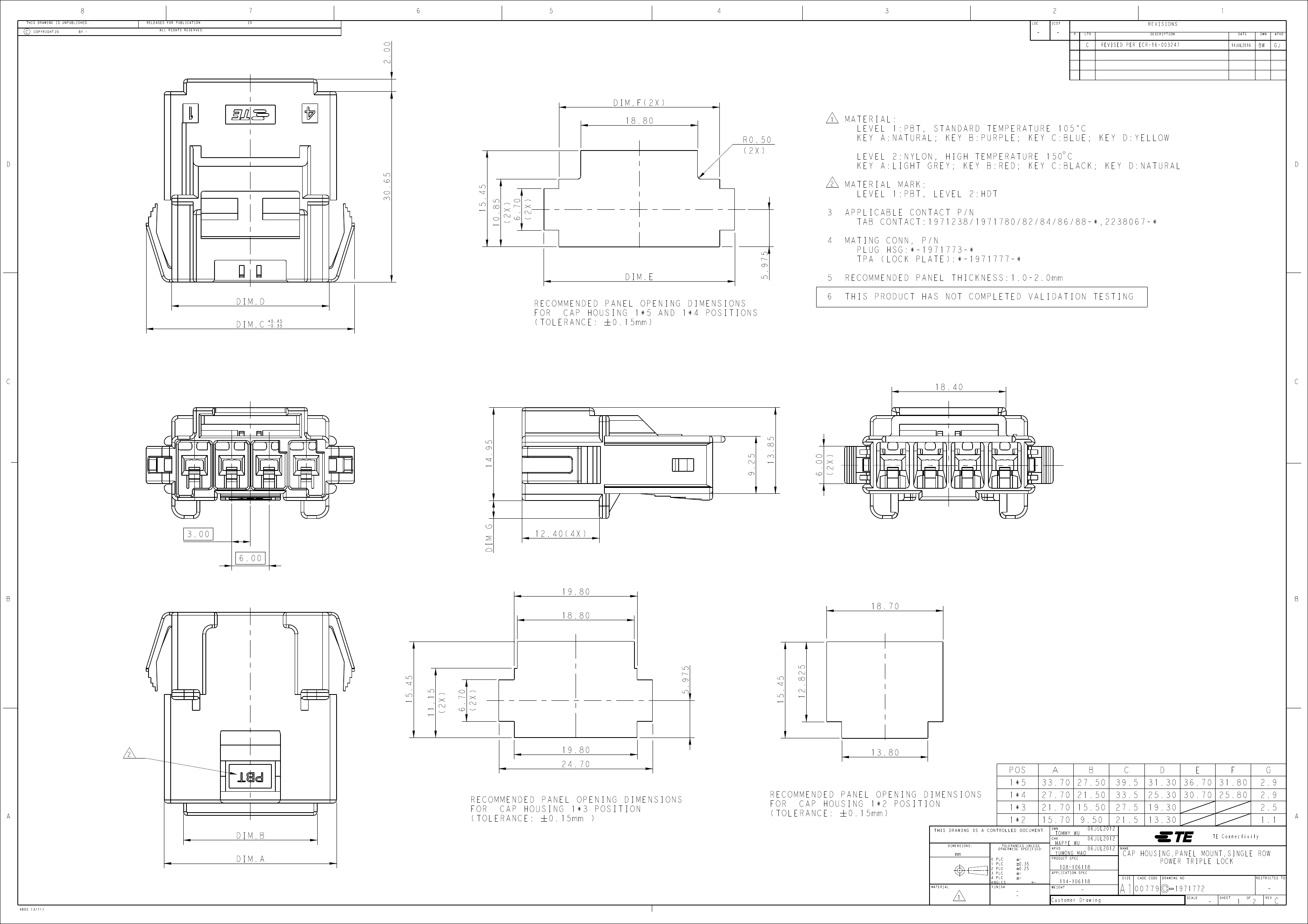

RECOMMENDED PANEL OPENING DIMENSIONS
FOR CAP HOUSING 1*5 AND 1*4 POSITIONS
(TOLERANCE: # 0.15mm)
C
18.40
C
14.95
9.25
13.85
3.00
6.00
DIM G
12.40 (4X)
B
19.80
18.80
18.70
6.00
(2X)
B
15.45
11.15
(2X)
6.70
(2X)
2
19.80
24.70
15.45
12.825
5.975
13.80
POS
RECOMMENDED PANEL OPENING DIMENSIONS
FOR CAP HOUSING 1*2 POSITION
(TOLERANCE: # 0.15mm)
1*5
1*4
1*3
1*2
33.70
27.70
21.70
15.70
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
27.50
21.50
15.50
9.50
B
39.5
33.5
27.5
21.5
NAME
C
31.30
25.30
19.30
13.30
D
36.70
30.70
E
31.80
25.80
F
2.9
2.9
2.5
1.1
A
G
A
RECOMMENDED PANEL OPENING DIMENSIONS
FOR CAP HOUSING 1*3 POSITION
(TOLERANCE: # 0.15mm )
DIM.B
DIM.A
THIS DRAWING IS A CONTROLLED DOCUMENT.
TOMMY WU
HAPYE WU
YUHONG MAO
108-106118
114-106118
06JUL2012
06JUL2012
06JUL2012
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.35
0.25
-
-
PRODUCT SPEC
CAP HOUSING,PANEL MOUNT,SINGLE ROW
POWER TRIPLE LOCK
CAGE CODE
DRAWING NO
RESTRICTED TO
APPLICATION SPEC
-
1
4805 (3/11)
-
-
WEIGHT
-
Customer Drawing
A1
00779
SIZE
1971772
SCALE
-
SHEET
1
OF
2
REV
-
C
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
-
-
SEE SHEET 1
-
-
-
D
D
C
C
1*2 POSITIONS
KEY A
KEY B
1*3 POSITIONS
KEY A
KEY B
KEY A
1*4 POSITIONS
KEY B
KEY A
1*5 POSITIONS
KEY B
PIN 1
PIN 2
PIN 1
PIN 3
PIN 1
PIN 4
PIN 1
PIN 5
KEY C
KEY D
KEY C
KEY D
KEY C
KEY D
KEY C
KEY D
B
B

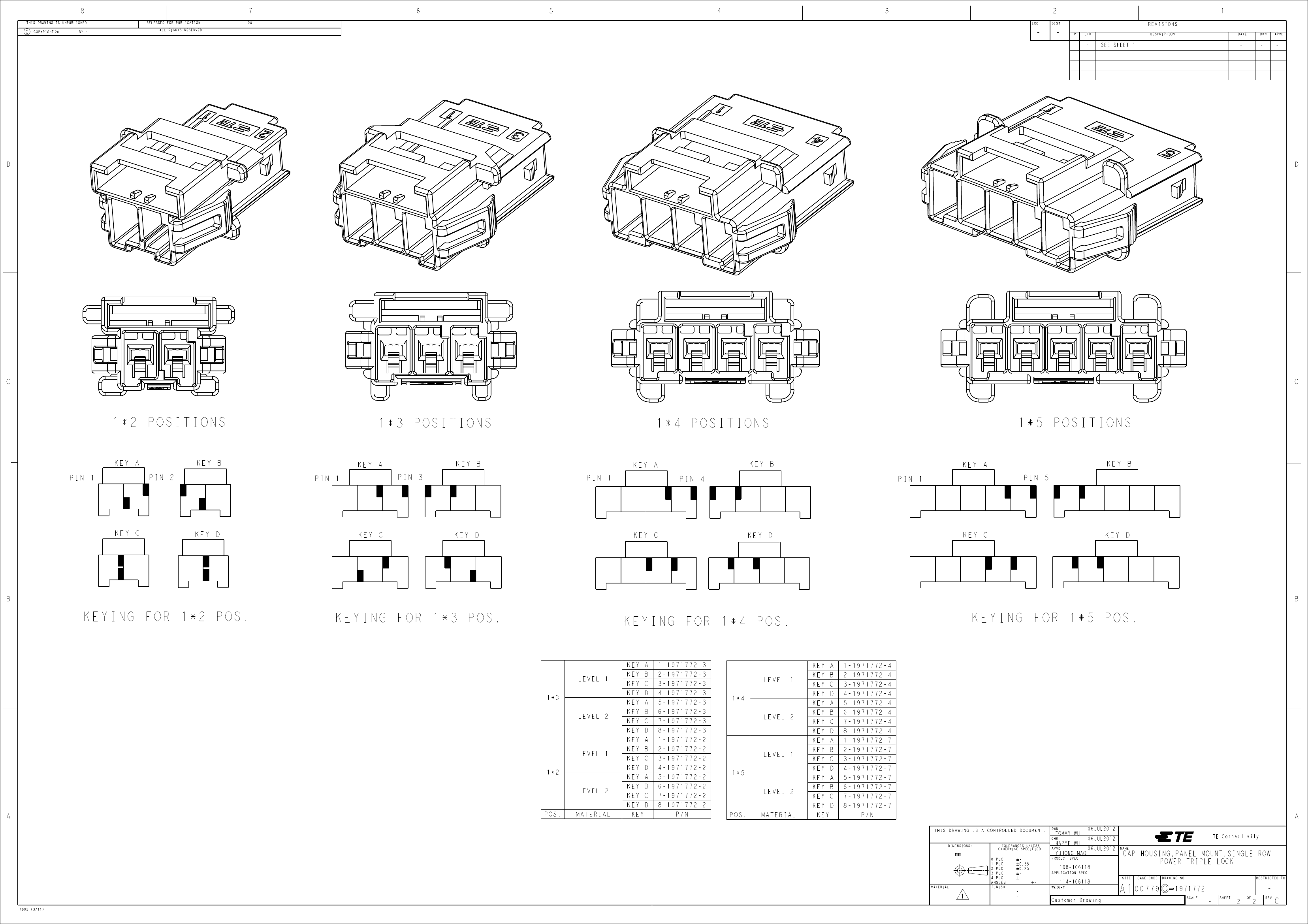

KEYING FOR 1*2 POS.
KEYING FOR 1*3 POS.
KEYING FOR 1*4 POS.
KEY A
LEVEL 1
1*3
LEVEL 2
KEY B
KEY C
KEY D
KEY A
KEY B
KEY C
KEY D
KEY A
LEVEL 1
1*2
LEVEL 2
KEY B
KEY C
KEY D
KEY A
KEY B
KEY C
KEY D
KEY
1-1971772-3
2-1971772-3
3-1971772-3
4-1971772-3
5-1971772-3
6-1971772-3
7-1971772-3
8-1971772-3
1-1971772-2
2-1971772-2
3-1971772-2
4-1971772-2
5-1971772-2
6-1971772-2
7-1971772-2
8-1971772-2
P/N
POS.
1*5
LEVEL 2
MATERIAL
LEVEL 1
1*4
LEVEL 2
LEVEL 1
KEY A
KEY B
KEY C
KEY D
KEY A
KEY B
KEY C
KEY D
KEY A
KEY B
KEY C
KEY D
KEY A
KEY B
KEY C
KEY D
KEY
1-1971772-4
2-1971772-4
3-1971772-4
4-1971772-4
5-1971772-4
6-1971772-4
7-1971772-4
8-1971772-4
1-1971772-7
2-1971772-7
3-1971772-7
4-1971772-7
5-1971772-7
6-1971772-7
7-1971772-7
8-1971772-7
P/N
KEYING FOR 1*5 POS.
A
POS.
MATERIAL
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
TOMMY WU
HAPYE WU
YUHONG MAO
108-106118
114-106118
06JUL2012
06JUL2012
06JUL2012
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.35
0.25
-
-
PRODUCT SPEC
CAP HOUSING,PANEL MOUNT,SINGLE ROW
POWER TRIPLE LOCK
CAGE CODE
DRAWING NO
RESTRICTED TO
APPLICATION SPEC
-
1
4805 (3/11)
-
-
WEIGHT
-
Customer Drawing
A1
00779
SIZE
1971772
SCALE
-
SHEET
2
OF
2
REV
-
C
