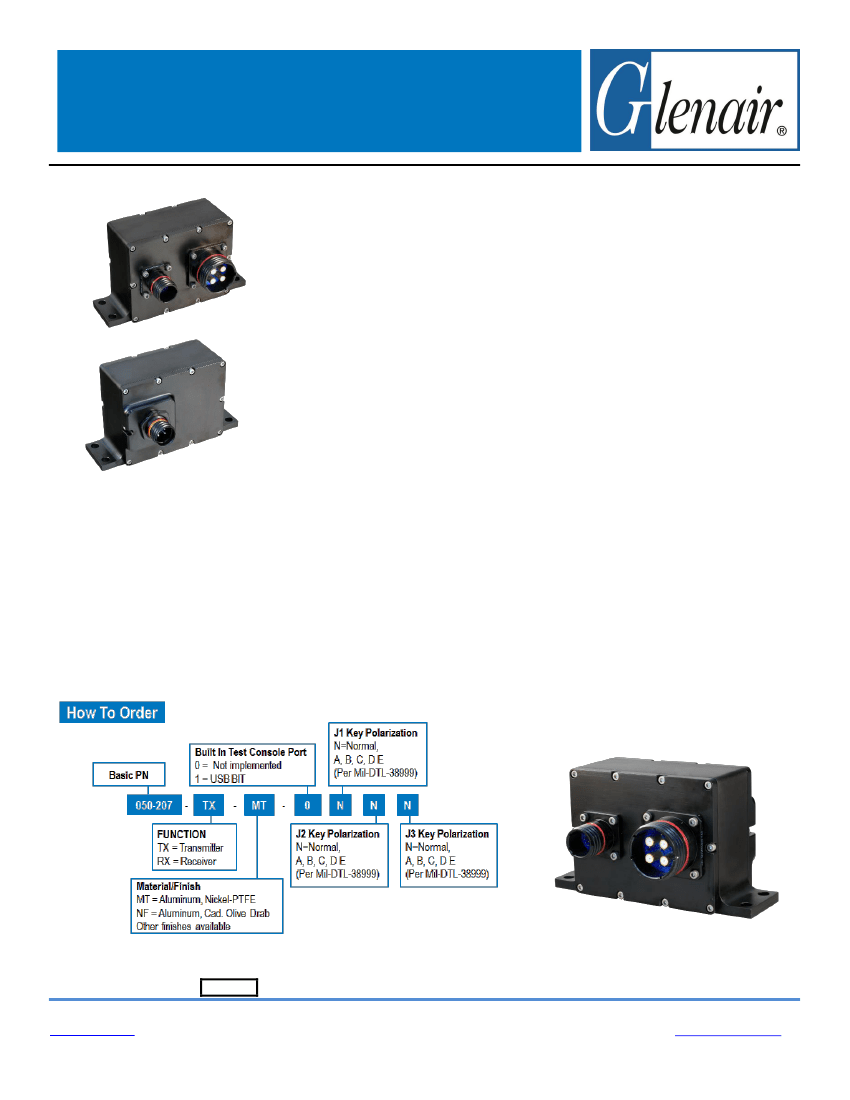

050-207 PRODUCT BRIEF
4-Channel SMPTE HD/3G-SDI
Media Converter
4-Channel SMPTE HD/3G-SDI Media Converter
The Glenair 050-207 is a 4-Channel SMPTE Copper to Fiber Optic Media Converter,
which extends the reach between a video source and sink. This media converter is
configured either as an optical transmitter, converting electrical SMPTE signals to
fiber or as an optical receiver converting fiber optic signals into the electrical SMPTE
signals.
The 050-207 is designed for harsh environments and incorporates electronics in an
environmentally sealed enclosure that incorporates two (2) D38999 connectors to
support Electrical connections and Glenair High Density (GHD) connector for the
fiber optic interconnect. Signal I/O and BIT functionality connect through one
D38999 connector and power is provide through a separate D38999 connector. The
Fiber Optics passes through Glenair GHD connector.
KEY FEATURES/BENEFITS
850nm Multimode Fiber for links up to 500m
SMPTE EG 34:2004
o
Compliant to Pathological Conditions
CASE 1, CASE 2 and CASE 3
SMPTE ST 297:2015 (3G-SDI & HD-SDI)
SMPTE 292/424 Compliant (HD-SDI / 3G-SDI)
Wide Input Voltage Range
IP67 in mated condition
D38999 with 75 Ohm Coax and #22 Pin contacts
GHD Fiber Optic connector
OPTIONAL FEATURES
Built In Test Console Port accessible via USB2.0
APPLICATIONS
Harsh Environment such as: Airborne, Tactical, Railway,
Industrial, Oil and Gas and Shipboard applications
©2016 Glenair, Inc.
REV: 10
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
BF14U2-7515
PAGE 2 of 11
050-207 PRODUCT BRIEF
4-Channel SMPTE HD/3G-SDI
Media Converter

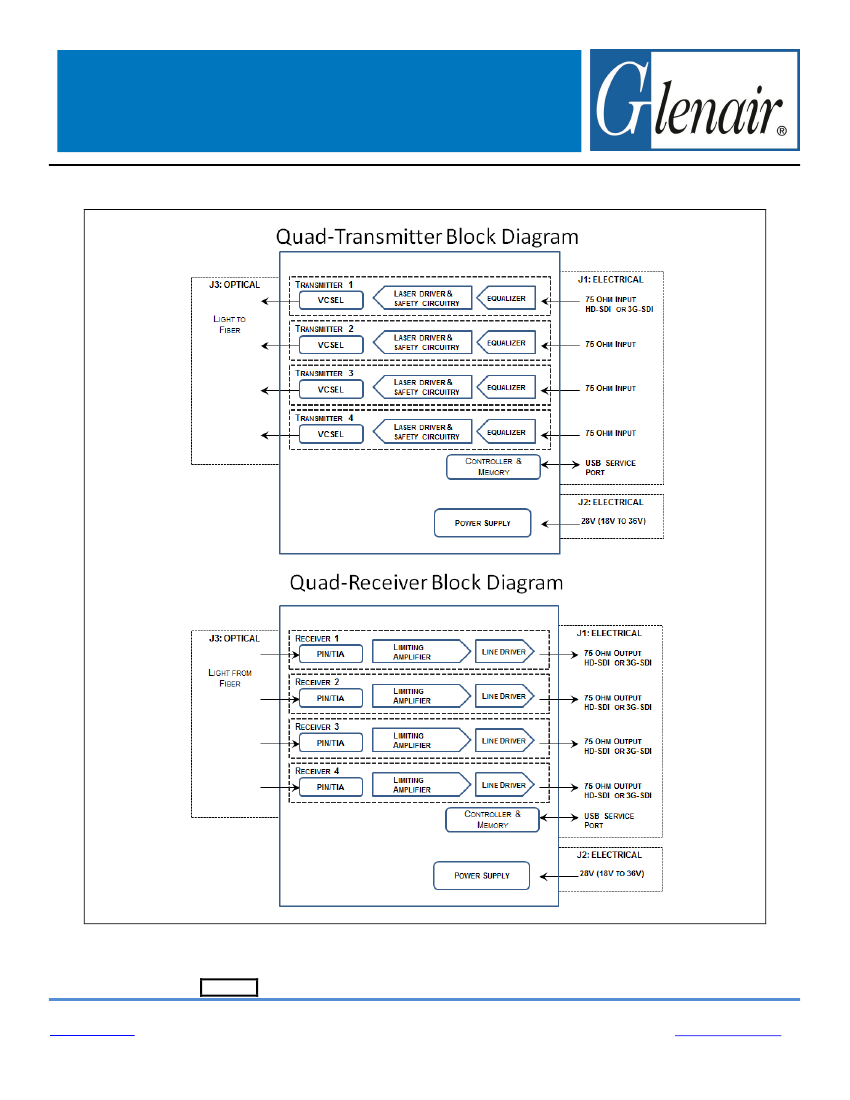

Functional Block Diagram
©2016 Glenair, Inc.
REV: 10
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 3 of 11
050-207 PRODUCT BRIEF
4-Channel SMPTE HD/3G-SDI
Media Converter

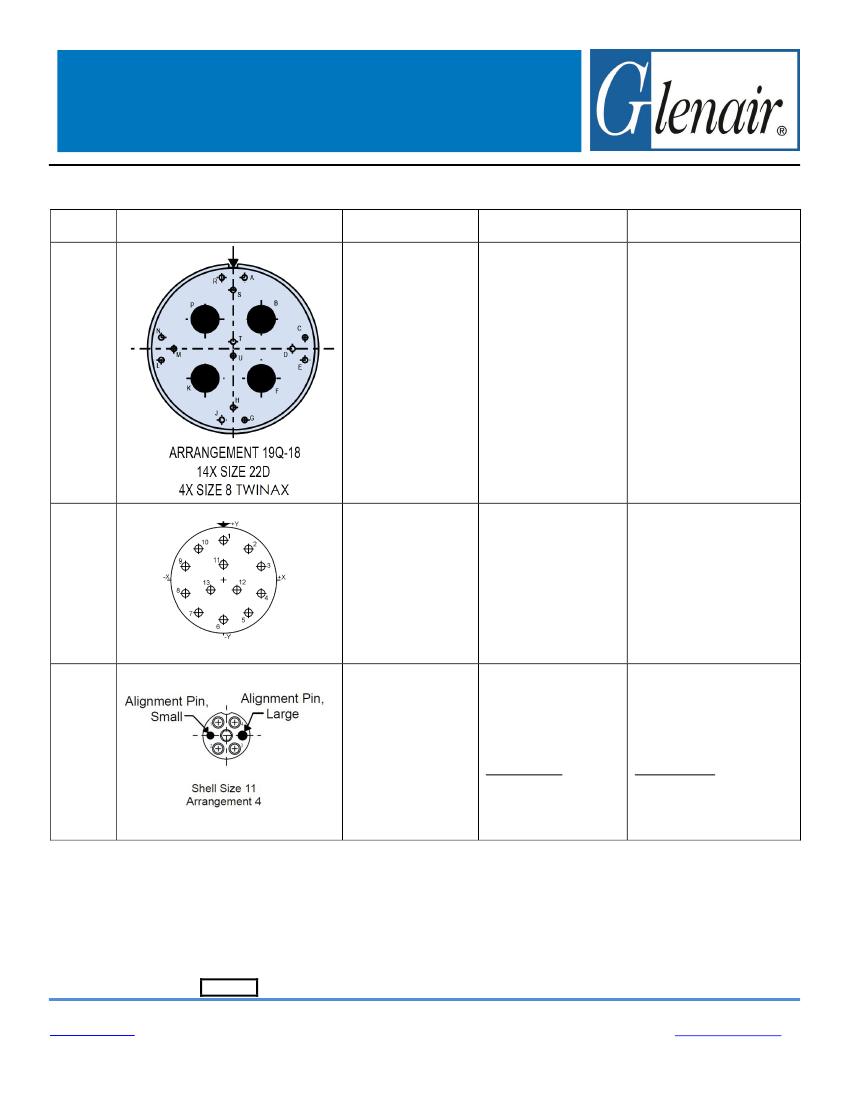

Connectors
NAME
J1
Insert
Arrangement
Function
Electrical Signal,
Power, and Built In
Test (BIT)
Media Converter
D38999 Series III
type, 19C-18
14X SIZE 22D Pins
4X SIZE 8 Pins
(AS39029/119)
Mating PLUG
Connector
Generic PN
D38999/26#F18SN type
**Glenair PN
257-606##G6-19Q-18BN
Coax Socket Contacts
852-083-01
Socket Contacts
M39029/56-348
J2
Power
D38999 Series III
type,
11-35
13X SIZE 22D Pins
Generic PN
D38999/26#B35SN
Glenair PN
233-105-G6##11-35SN
Socket Contacts
M39029/56-348
J3
Fiber Optic Signal
GHD
Shell Size 11
Arrangement 4
Glenair PN
180-122-#06-11-4N
CONTACTS
181-056
CONTACTS:
181-056-1260C
Note: # = Environmental Class (Material/Finish)
**Connector is supplied less contacts. Optional mode code 557 can be added to the end of the part number to include contacts (including
spares), insertion/removal tool, and sealing plugs. Contact manufacturer for additional options.
©2016 Glenair, Inc.
REV: 10
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 4 of 11
050-207 PRODUCT BRIEF
4-Channel SMPTE HD/3G-SDI
Media Converter

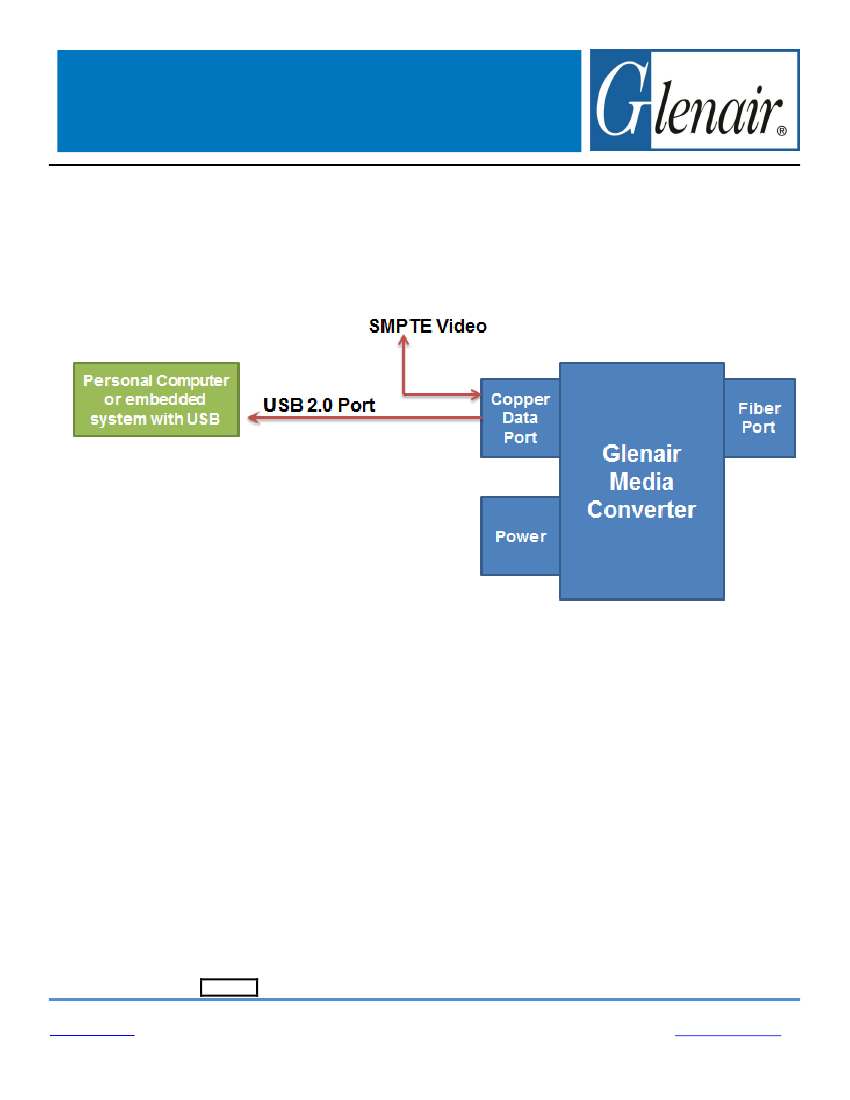

Built In Test (BIT) Functionality – USB 2.0
This media converter can be configured with built in test and monitoring functionality accessible through a console port via
Universal Serial Bus 2.0 (USB 2.0).
Universal Serial Bus (2.0) BIT
Presents itself as a “Virtual” Communications Port
Compatible with Microsoft Windows, Mac, and Linux OS’s.
On the computer side, open any terminal application (PuTTY, HyperTERM, TeraTERM, etc.) to communicate with
the media converter hardware.
Simple “Human Readable” status messages.
Alarm State Messages
Unit Identification Information
Unit Serial Number
Unit Product Code
Fiber Side Alarm/Status
Temperature
Transmitter TX Fault
Transmitter Disable Status
